Bus Cable for Industrial Communication

A practical selection guide for RS-485, CAN Bus, PROFIBUS and industrial data networks

What Is Bus Cable?

Bus cable is a communication cable used to connect multiple devices on the same control or data network. Unlike standard power cable, it is engineered for predictable electrical performance, low interference, and stable signal transmission.

In industrial environments, bus cable is commonly specified for RS-485, CAN Bus, PROFIBUS, and other fieldbus or industrial data systems. Most designs rely on twisted-pair construction to support differential signaling and reduce noise pickup. Depending on the protocol, impedance, capacitance, shielding structure, and conductor geometry become critical to communication quality.

Why Bus Cable Matters in Industrial Networks

Communication performance depends not only on the controller or device, but also on the cable connecting the entire network. A poor cable choice can introduce reflections, attenuation, intermittent faults, or complete communication loss.

·       Stable data transmission over long distances

·       Better resistance to electromagnetic interference

·       Lower signal attenuation and fewer reflected signals

·       Improved uptime in factories, transport systems, and process plants

·       Easier system integration and lower commissioning risk

Main Types of Bus Cable

Bus cable is not one single product. It is a family of communication cables designed around specific protocols and installation environments.

Typical Construction of Bus Cable

Although designs vary by protocol, many bus cables share a common technical logic: signal conductors, balanced pair geometry, shielding, and an outer sheath selected for the real installation environment.

Key Selection Factors

·       Protocol compatibility: impedance, capacitance, and conductor geometry should match the communication standard.

·       EMI conditions: shielded constructions are preferred in routes close to drives, motors, switchgear, or power cables.

·       Installation method: fixed tray installation, conduit, outdoor routing, drag chain, and robotic motion require different constructions.

·       Environmental resistance: consider oil, UV, moisture, chemical exposure, and temperature range.

·       Distance and baud rate: longer runs demand tighter control of attenuation and signal reflection.

·       Fire performance: projects may require flame-retardant, low-smoke, halogen-free, or fire-resistant properties.

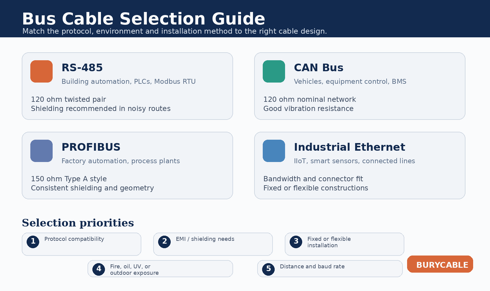

Quick Selection Guide

Where Bus Cables Are Used

Bus cables are widely used in industrial automation, oil and gas, water treatment, building management systems, transportation, renewable energy, smart infrastructure, and machine control. As systems become more connected, the cable itself becomes a more critical part of total network reliability.

Common Problems Caused by Wrong Cable Selection

·       Intermittent communication faults during commissioning or operation

·       Signal reflections caused by impedance mismatch

·       Reduced transmission distance or unstable baud-rate performance

·       Noise-related data errors in high-interference environments

·       Unexpected downtime caused by jacket or shielding failure

Why BURYCABLE

At BURYCABLE, we position bus cable as an engineered solution rather than a commodity item. Our communication cable offering can be tailored for shielding level, jacket compound, fire performance, UV resistance, oil resistance, flexibility, and project-specific installation demands.

For OEM buyers, contractors, distributors, and industrial project teams, the right result comes from matching the cable design to the actual protocol and field conditions - not just the product name on the quote.

FAQ

What is the difference between bus cable and ordinary control cable?

Bus cable is designed around communication performance, including pair geometry, impedance consistency, and shielding effectiveness. Ordinary control cable may not provide the same signal stability for data networks.

Should bus cable always be shielded?

Not always. In low-noise routes, unshielded constructions can work. In most industrial installations, however, shielding improves reliability and is often the safer specification.

Can one bus cable be used for every protocol?

No. Different protocols have different electrical requirements. A cable suitable for RS-485 may not be the best choice for PROFIBUS or industrial Ethernet.

What information should a buyer provide before asking for a quotation?

Protocol type, conductor size preference, fixed or flexible use, installation environment, flame requirement, shielding requirement, and estimated project quantity are the most useful starting points.
