IEC 60502 Cable Guide: Understanding Medium Voltage Power Cable Applications

BURYCABLE Technical Article

Figure 1. Overview graphic for the article topic

What Is IEC 60502?

IEC 60502 is an international standard for power cables with extruded insulation and their accessories. It is widely referenced for low-voltage and medium-voltage cable designs used in fixed installations and distribution systems.

The standard provides a recognized framework for construction, materials, and testing so that buyers and engineers can specify power cables more consistently across projects.

Why IEC 60502 Matters

In practice, a power cable must do more than carry current. It must tolerate installation stress, thermal load, environmental exposure, and long-term service conditions without premature degradation.

By specifying IEC 60502, project teams gain a clearer basis for comparing cable designs and selecting products suited to utility, industrial, and commercial applications.

·       Provides a common technical basis for power cable selection

·       Supports consistent quality expectations for fixed installations

·       Helps align cable design with voltage, environment, and installation method

Quick Comparison Table

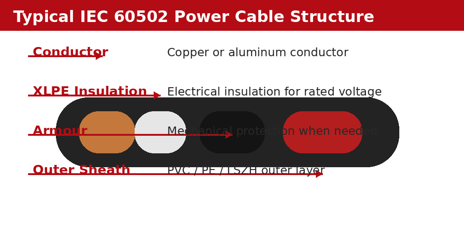

Figure 2. Simplified construction reference

Common Construction Options

IEC 60502 cables are available with copper or aluminum conductors, XLPE insulation, and different sheath materials such as PVC, PE, or LSZH. Depending on the installation, an armoured or unarmoured design may be appropriate.

The best configuration depends on voltage level, mechanical protection needs, routing method, and the surrounding environment.

Armoured vs. Unarmoured Selection

Armoured cables are frequently chosen where extra mechanical protection is needed, such as direct burial, outdoor exposure, or heavy-duty industrial environments.

Unarmoured designs are often suitable for controlled installations, cable trays, or ducts where flexibility and reduced weight are advantages.

·       Use armour when external impact or burial conditions are a concern

·       Use unarmoured designs where the route is protected and lighter construction is preferred

·       Match sheath type to chemical, UV, or low-smoke performance requirements

Typical Applications

IEC 60502 cable designs are widely used in power distribution systems that demand stable long-term performance across a range of sectors.

·       Substations and utility distribution networks

·       Industrial plants and process facilities

·       Airports, tunnels, ports, and public infrastructure

·       Renewable energy and commercial developments

Why Choose BURY CABLE

BURYCABLE supplies dependable power cable solutions for industrial, infrastructure, and commercial projects. Our team supports customers with product information, technical selection advice, and fast quotation service for project-driven cable requirements.

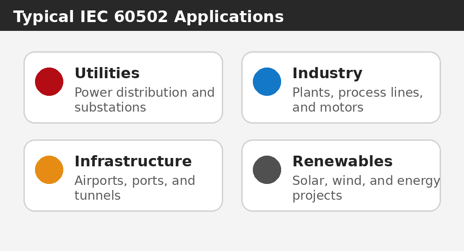

Figure 3. Representative application scenarios

=
