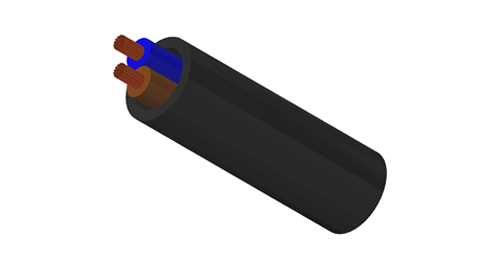

V75 PVC Lightweight Flexible Cable is specifically designed for indoor wiring and electrical connections in dry environments. Made of highly flexible PVC material, it is soft and easy to bend, making it an ideal choice for connecting low-power portable devices. It is particularly suitable for small household appliances that require frequent movement, such as radios, electric shavers, and desk lamps.
Additionally, this cable is widely used in office equipment, hair dryers (commonly found in older or specific models as power cords), and other household appliances. It can also provide safe connections for devices requiring grounding protection. For double-insulated electrical appliances, the V75 cable performs exceptionally well, especially in usage scenarios free from mechanical stress.
AS/NZS 3191
AS/NZS 1125

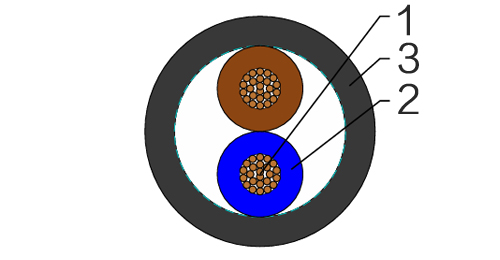

| Conductor | Annealed copper conductor to AS/NZS 1125 |
| Maximum operating temperature: 75°C | |
| Insulation | V-75 PVC |
| Colours | 2C Brown, Light Blue |
| 3C Brown, Light Blue, Green/Yellow | |
| Sheath | 4V-75 PVC |
| Colours | Grey, White, Black, Orange |
| Conductor Size | Current Carrying Capacity | Max. DC Resistance | Max. AC Resistance | Single Phase Voltage Drop |
|---|---|---|---|---|
| mm^2 | A | Ohm/km @ 20 °C | Ohm/km @ 90 °C | MV/A.m |
| 0.5 | 3 | 39.0 | 47.4 | 94.7 |
| 0.75 | 7.5 | 26.0 | 31.6 | 63.2 |
| 1.0 | 10 | 19.5 | 23.7 | 47.5 |
| 1.5 | 16 | 13.3 | 16.2 | 32.3 |
| 2.5 | 20 | 7.98 | 9.70 | 19.4 |
| 4.0 | 25 | 4.95 | 6.02 | 12.0 |
| Conductor Size | No.of cores | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal O.D. | Approx. Cable Weight |
|---|---|---|---|---|---|
| mm^2 | mm | mm | mm | kg/100m | |
| Round | |||||
| 0.5 | 2 | 0.5 | 0.6 | 5.2 | 3.7 |
| 0.5 | 3 | 0.5 | 0.6 | 5.5 | 4.2 |
| 0.75 | 2 | 0.5 | 0.6 | 5.6 | 4.5 |
| 0.75 | 3 | 0.5 | 0.6 | 5.9 | 5.4 |
| Parallel Webbed, Flat, Unsheathed | |||||
| 0.5 | 2 | 0.8 | - | 5.2×2.6 | 2.2 |
| 0.75 | 2 | 0.8 | - | 5.6×2.8 | 2.7 |
