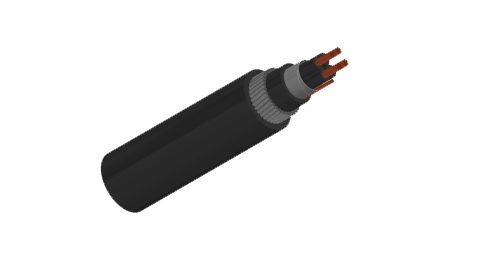

BS EN 50288-7 Multicore Instrumentation Cable, Overall Screened, SWA, XLPE/PVC

Flame retardant multicore instrumentation cable with XLPE insulation, overall foil screening, PVC sheaths and galvanised steel wire armour. BS EN 50288-7 construction in separate 300V and 500V versions for industrial signal routes.

Flame Retardant Overall Screened, Armoured InstrumentationCables (Multicore).pdf Contact us

Previous: LSZH Flame Retardant Individual and Overall Screened, Armoured Instrumentation Cables (Multipair)Next: BS EN 50288-7 Multipair Instrumentation Cable, Individual and Overall Screened, XLPE/PVC

APPLICATION

For industrial signal and instrument connections where the route requires added mechanical protection. This multicore cable combines XLPE insulation, an overall foil screen, PVC inner and outer sheaths, and galvanised steel wire armour.

STANDARDS

Basic design to BS EN 50288-7 (formerly BS 5308)

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) : BS EN 60332-1-2

VOLTAGE RATING

300V, 500V

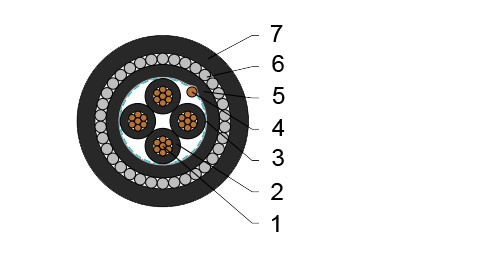

CABLE CONSTRUCTION

Conductor : Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and 5.

Insulation : Extruded XLPE compound according to EN 50290-2-29. PVC, PE, PP compound can be offered as options.

Overall Screen : Aluminium/polyester tape is applied over the laid up cores with metallic side down in contact with tinned copper drain wire, 0.5mm². Copper braid screen or aluminium/polyester tape combination with copper braid screen can be offered as option.

Inner Sheath : Thermoplastic PVC compound according to EN 50290-2-22.

Armouring : Galvanised steel wire.

Outer Sheath : Thermoplastic PVC compound according to EN 50290-2-22.

Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation Colour : Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.

Outer Sheath : Black. Other colours can be offered upon request.

PHYSICAL AND THERMAL PROPERTIES

Temperature range during operation : -30°C - +90°C

Temperature range fixed installation : -5°C - +50°C

Maximum short circuit temperature (5 Seconds) : 250°C

Minimum bending radius : 10 x Overall Diameter

ELECTRICAL PROPERTIES

300V

Conductor Area Size	mm²	0.5	0.75	1.0	1.5
Insulation Thickness (nominal)	mm	0.4	0.4	0.4	0.5
Insulation Thickness (minimum)	mm	0.26	0.26	0.26	0.35
Conductor Resistance (20°C)	ohm/km	36.7	25.0	18.5	12.3
Minimum Insulation Resistance (20°C)	Mohm/km	1000
Maximum Mutual Capacitance	nf/km	250
Capacitance Unbalance	pf/500m	500
Maximum L/R (ratio)	μH/Ω	25	25	25	40
Operating Voltage	V	300
Dielectric Strength for 1 Minute	AC	V	≥1000
Dielectric Strength for 1 Minute	DC	V	≥2000

500V

Conductor Area Size	mm²	0.5	0.75	1.0	1.5	2.5
Insulation Thickness (nominal)	mm	0.6	0.6	0.6	0.6	0.7
Insulation Thickness (minimum)	mm	0.44	0.44	0.44	0.44	0.53
Conductor resistance (20°C)	ohm/km	36.7	25.0	18.5	12.3	7.4
Minimum Insulation Resistance (20°C)	Mohm/km	1000
Maximum Mutual Capacitance	nf/km	250
Capacitance Unbalance	pf/500m	500
Maximum L/R (ratio)	μH/Ω	25	25	25	40	60
Operating Voltage	V	500
Dielectric Strength for 1 Minute	AC	V	≥2000
Dielectric Strength for 1 Minute	DC	V	≥3000

CONSTRUCTION PARAMETERS

300V

Conductor		RE-2X(St)YSWAY
No. of Core X Cross Section	Class of Conductor	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Nominal Armour Wire Diameter	Nominal Outer Sheath Thickness	Approx. Overall Diameter	Approx. Weight
mm²	Class of Conductor	mm	mm	mm	mm	mm	kg/km
0.5mm²
2x0.5	2	0.4	0.9	0.9	1.3	9.9	201
3x0.5	2	0.4	0.9	0.9	1.3	10.1	217
4x0.5	2	0.4	0.9	0.9	1.3	10.6	238
5x0.5	2	0.4	0.9	0.9	1.3	11.1	260
8x0.5	2	0.4	1.0	0.9	1.4	12.5	329
10x0.5	2	0.4	1.0	0.9	1.4	13.7	382
12x0.5	2	0.4	1.0	0.9	1.4	14.0	405
14x0.5	2	0.4	1.0	0.9	1.4	14.4	434
16x0.5	2	0.4	1.0	0.9	1.4	15.0	464
20x0.5	2	0.4	1.1	0.9	1.5	16.1	537
24x0.5	2	0.4	1.1	0.9	1.5	17.6	614
27x0.5	2	0.4	1.1	0.9	1.5	17.8	645
30x0.5	2	0.4	1.2	0.9	1.5	18.5	695
37x0.5	2	0.4	1.2	0.9	1.6	19.7	789
40x0.5	2	0.4	1.2	1.25	1.6	20.9	953
0.75mm²
2x0.75	2	0.4	0.9	0.9	1.3	10.2	217
3x0.75	2	0.4	0.9	0.9	1.3	10.5	237
4x0.75	2	0.4	0.9	0.9	1.4	11.2	266
5x0.75	2	0.4	1.0	0.9	1.4	12.0	302
8x0.75	2	0.4	1.0	0.9	1.4	13.1	368
10x0.75	2	0.4	1.1	0.9	1.5	14.8	447
12x0.75	2	0.4	1.1	0.9	1.5	15.1	477
14x0.75	2	0.4	1.1	0.9	1.5	15.6	513
16x0.75	2	0.4	1.1	0.9	1.5	16.2	551
20x0.75	2	0.4	1.2	0.9	1.6	17.4	639
24x0.75	2	0.4	1.3	0.9	1.6	19.3	746
27x0.75	2	0.4	1.3	0.9	1.6	19.6	787
30x0.75	2	0.4	1.3	1.25	1.6	20.8	957
37x0.75	2	0.4	1.3	1.25	1.7	22.1	1084
40x0.75	2	0.4	1.4	1.25	1.7	22.8	1153
1.0mm²
2x1.0	2	0.4	0.9	0.9	1.3	10.6	237
3x1.0	2	0.4	0.9	0.9	1.3	11.0	261
4x1.0	2	0.4	0.9	0.9	1.4	11.7	296
5x1.0	2	0.4	0.9	0.9	1.4	12.3	329
8x1.0	2	0.4	1.0	0.9	1.4	13.8	419
10x1.0	2	0.4	1.0	0.9	1.5	15.5	500
12x1.0	2	0.4	1.0	0.9	1.5	15.8	538
14x1.0	2	0.4	1.0	0.9	1.5	16.4	583
16x1.0	2	0.4	1.1	0.9	1.5	17.2	641
20x1.0	2	0.4	1.2	0.9	1.5	18.3	739
24x1.0	2	0.4	1.2	1.25	1.6	21.0	987
27x1.0	2	0.4	1.2	1.25	1.6	21.3	1042
30x1.0	2	0.4	1.2	1.25	1.6	21.9	1106
37x1.0	2	0.4	1.3	1.25	1.7	23.5	1278
40x1.0	2	0.4	1.3	1.25	1.7	24.2	1346
1.5mm²
2x1.5	2	0.5	0.9	0.9	1.4	11.8	284
3x1.5	2	0.5	0.9	0.9	1.4	12.2	316
4x1.5	2	0.5	1.0	0.9	1.4	13.1	366
5x1.5	2	0.5	1.0	0.9	1.4	13.8	409
8x1.5	2	0.5	1.1	0.9	1.5	15.7	536
10x1.5	2	0.5	1.1	0.9	1.5	17.6	635
12x1.5	2	0.5	1.1	0.9	1.5	18.0	688
14x1.5	2	0.5	1.2	0.9	1.5	18.8	762
16x1.5	2	0.5	1.2	0.9	1.6	19.8	836
20x1.5	2	0.5	1.3	1.25	1.6	21.8	1100
24x1.5	2	0.5	1.3	1.25	1.7	24.2	1281
27x1.5	2	0.5	1.4	1.25	1.7	24.8	1375
30x1.5	2	0.5	1.4	1.25	1.7	25.5	1464
37x1.5	2	0.5	1.4	1.25	1.8	27.2	1681
40x1.5	2	0.5	1.5	1.25	1.8	28.2	1792

500V

Conductor		RE-2X(St)YSWAY
No. of Core X Cross Section	Class of Conductor	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Nominal Armour Wire Diameter	Nominal Outer Sheath Thickness	Approx. Overall Diameter	Approx. Weight
mm²	Class of Conductor	mm	mm	mm	mm	mm	kg/km
0.5mm²
2x0.5	2	0.6	0.9	0.9	1.3	10.7	228
3x0.5	2	0.6	0.9	0.9	1.3	11.0	247
4x0.5	2	0.6	0.9	0.9	1.4	11.7	278
5x0.5	2	0.6	0.9	0.9	1.4	12.4	305
8x0.5	2	0.6	1.0	0.9	1.4	13.8	381
10x0.5	2	0.6	1.0	0.9	1.5	15.5	452
12x0.5	2	0.6	1.1	0.9	1.5	16.0	491
14x0.5	2	0.6	1.1	0.9	1.5	16.6	527
16x0.5	2	0.6	1.1	0.9	1.5	17.2	564
20x0.5	2	0.6	1.2	0.9	1.5	18.4	643
24x0.5	2	0.6	1.2	1.25	1.6	21.1	872
27x0.5	2	0.6	1.2	1.25	1.6	21.4	912
30x0.5	2	0.6	1.3	1.25	1.6	22.2	976
37x0.5	2	0.6	1.3	1.25	1.6	23.4	1090
40x0.5	2	0.6	1.3	1.25	1.7	24.2	1153
0.75mm²
2x0.75	2	0.6	0.9	0.9	1.3	11.0	245
3x0.75	2	0.6	0.9	0.9	1.3	11.4	267
4x0.75	2	0.6	0.9	0.9	1.4	12.2	302
5x0.75	2	0.6	1.0	0.9	1.4	13.0	343
8x0.75	2	0.6	1.0	0.9	1.4	14.4	422
10x0.75	2	0.6	1.0	0.9	1.5	16.2	503
12x0.75	2	0.6	1.0	0.9	1.5	16.6	537
14x0.75	2	0.6	1.1	0.9	1.5	17.4	591
16x0.75	2	0.6	1.1	0.9	1.5	18.1	636
20x0.75	2	0.6	1.2	0.9	1.6	19.5	738
24x0.75	2	0.6	1.3	1.25	1.6	22.4	997
27x0.75	2	0.6	1.3	1.25	1.6	22.7	1047
30x0.75	2	0.6	1.3	1.25	1.6	23.3	1106
37x0.75	2	0.6	1.4	1.25	1.7	25.1	1271
40x0.75	2	0.6	1.4	1.25	1.7	25.8	1335
1.0mm²
2x1.0	2	0.6	0.9	0.9	1.3	11.4	265
3x1.0	2	0.6	0.9	0.9	1.4	12.0	297
4x1.0	2	0.6	1.0	0.9	1.4	12.9	342
5x1.0	2	0.6	1.0	0.9	1.4	13.6	380
8x1.0	2	0.6	1.0	0.9	1.4	15.1	473
10x1.0	2	0.6	1.1	0.9	1.5	17.3	578
12x1.0	2	0.6	1.1	0.9	1.5	17.7	622
14x1.0	2	0.6	1.1	0.9	1.5	18.3	674
16x1.0	2	0.6	1.2	0.9	1.6	19.4	749
20x1.0	2	0.6	1.2	1.25	1.6	21.3	976
24x1.0	2	0.6	1.3	1.25	1.6	23.6	1139
27x1.0	2	0.6	1.3	1.25	1.7	24.2	1213
30x1.0	2	0.6	1.3	1.25	1.7	24.9	1286
37x1.0	2	0.6	1.4	1.25	1.7	26.5	1472
40x1.0	2	0.6	1.4	1.25	1.8	27.5	1563
1.5mm²
2x1.5	2	0.6	0.9	0.9	1.3	12.2	298
3x1.5	2	0.6	1.0	0.9	1.4	12.8	341
4x1.5	2	0.6	1.0	0.9	1.4	13.5	385
5x1.5	2	0.6	1.0	0.9	1.4	14.3	431
8x1.5	2	0.6	1.1	0.9	1.5	16.4	565
10x1.5	2	0.6	1.2	0.9	1.5	18.6	682
12x1.5	2	0.6	1.2	0.9	1.6	19.2	747
14x1.5	2	0.6	1.2	0.9	1.6	19.9	814
16x1.5	2	0.6	1.2	1.25	1.6	21.4	1010
20x1.5	2	0.6	1.3	1.25	1.7	23.1	1172
24x1.5	2	0.6	1.4	1.25	1.7	25.6	1371
27x1.5	2	0.6	1.4	1.25	1.7	26.1	1452
30x1.5	2	0.6	1.4	1.25	1.8	27.0	1558
37x1.5	2	0.6	1.5	1.25	1.8	28.8	1794
40x1.5	2	0.6	1.5	1.25	1.8	29.7	1893
2.5mm²
2x2.5	2	0.7	1.0	0.9	1.4	13.6	369
3x2.5	2	0.7	1.0	0.9	1.4	14.1	419
4x2.5	2	0.7	1.0	0.9	1.4	15.0	479
5x2.5	2	0.7	1.1	0.9	1.5	16.4	561
8x2.5	2	0.7	1.2	0.9	1.5	18.6	738
10x2.5	2	0.7	1.3	1.25	1.6	22.1	1039
12x2.5	2	0.7	1.3	1.25	1.6	22.7	1127
14x2.5	2	0.7	1.3	1.25	1.7	23.8	1240
16x2.5	2	0.7	1.4	1.25	1.7	25.0	1363
20x2.5	2	0.7	1.4	1.25	1.8	26.7	1572
24x2.5	2	0.7	1.5	1.25	1.8	29.8	1845
27x2.5	2	0.7	1.6	1.25	1.9	30.7	2000
30x2.5	2	0.7	1.6	1.6	1.9	32.3	2339
37x2.5	2	0.7	1.7	1.6	1.9	34.5	2695
40x2.5	2	0.7	1.7	1.6	2.0	35.7	2864

KEY FEATURES

Copper cores with standard XLPE insulation.
Overall foil screen and tinned copper drain wire.
Steel wire armour between PVC sheaths.

SELECTION NOTES

Select voltage version, core count, conductor area and class. Match glands and bend allowances to the selected armoured cable diameter.

FREQUENTLY ASKED QUESTIONS

What armour is used?

Galvanised steel wire armour is applied over the PVC inner sheath.

How are the cores screened?

One overall aluminium/polyester screen surrounds the laid-up cores.

What is the standard sheath material?

Both the inner and outer sheaths are thermoplastic PVC.

Which voltage versions are listed?

Separate 300V and 500V versions have their own electrical and dimensional tables.

What is the minimum bending radius?

The listed minimum is 10 times the overall cable diameter.
