600/1000V PVC Insulated, PVC Sheathed, Armoured Power Cables to BS 6346 (2-5 Cores)

APPLICATIONThe cables are intended for use in fixed installations in industrial areas, buildings and similar applications.STANDARDSBasic design to BS 6346FIRE PERFORMANCEFlame Retardance (Single Vertical Wire Test)BS EN 50265-2-1VOLTAGE RATING600/1000…

600_1000V PVC Insulated, PVC Sheathed, Armoured PowerCables to BS 6346 (2-5 Cores).pdf Contact us

Previous: 600/1000V XLPE Insulated, PVC Sheathed, Armoured Power Cables to BS 5467 (2-5 Cores)Next: Standard Wall Single Core Unsheathed Cables 0.6/1 kV or 1.8/3 kV

APPLICATION

The cables are intended for use in fixed installations in industrial areas, buildings and similar applications.

STANDARDS

Basic design to BS 6346

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)

BS EN 50265-2-1

VOLTAGE RATING

600/1000V

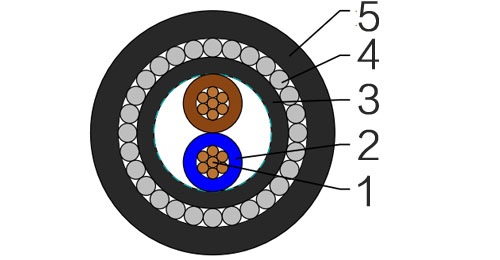

CABLE CONSTRUCTION

Conductor	Annealed copper wire, stranded according to BS 6360 class 2.
Insulation	PVC TI 1 according to BS 7655-3.1.
Bedding	Extruded PVC or taped bedding comprising two or more layers of PVC tape or other synthetic tape (for cables having a nominal conductor area of 16mm² and above).
Armouring	Galvanized steel wire
Outer Sheath	PVC TM 1 according to BS 7655-4.1.
Outer Sheath Option	UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation Colour	Two-core: Brown, blue Three-core: Brown, black, grey Four-core: Blue, brown, black, grey Five-core: Green-and-yellow, blue, brown, black, grey
Sheath Colour	Black (other colours upon request)

PHYSICAL AND THERMAL PROPERTIES

Maximum temperature range during operation (PVC)	70°C
Maximum short circuit temperature (5 Seconds)	160°C
Minimum bending radius
Circular copper conductors	6 x Overall Diameter
Shaped copper conductors	8 x Overall Diameter

CONSTRUCTION PARAMETERS

Conductor		FLP600-VVMV-R
No. of Cores x Cross Section	Class of Conductor	Nominal Insulation Thickness	Nominal Bedding Thickness	Nominal Armour Wire Diameter	Nominal Sheath Thickness	Approx. Overall Diameter		Approx. Weight
No. of Cores x Cross Section	Class of Conductor	Nominal Insulation Thickness	Nominal Bedding Thickness	Nominal Armour Wire Diameter	Nominal Sheath Thickness	Extruded Bedding	Taped Bedding	Approx. Weight
No.xmm²		mm	mm	mm	mm	mm	mm	kg/km
2 Cores
2x1.5^a	2	0.6	0.8	0.9	1.4	12.3	-	278
2x2.5^a	2	0.7	0.8	0.9	1.4	13.6	-	355
2x4.0^a	2	0.8	0.8	0.9	1.4	15.1	-	437
2x6.0^a	2	0.8	0.8	0.9	1.5	16.5	-	524
2x10^a	2	1.0	0.8	1.25	1.6	20.1	-	835
2x16^a	2	1.0	0.8	1.25	1.6	21.9	21.9	1045
2x25^b	2	1.2	1.0	1.6	1.7	23.0	22.6	1535
2x25^a	2	1.2	1.0	1.6	1.7	26.7	26.3	1608
2x35^b	2	1.2	1.0	1.6	1.8	24.8	24.4	1839
2x35^a	2	1.2	1.0	1.6	1.8	29.2	28.8	1941
2x50^b	2	1.4	1.0	1.6	1.9	27.8	27.4	1364
2x70^b	2	1.4	1.0	1.6	1.9	30.4	30.0	2328
2x95^b	2	1.6	1.2	2.0	2.1	35.5	34.7	3759
2x120^b	2	1.6	1.2	2.0	2.2	38.0	37.2	3217
2x150^b	2	1.8	1.2	2.0	2.3	41.3	40.5	3732
2x185^b	2	2.0	1.4	2.5	2.4	46.4	45.2	6669
2x240^b	2	2.2	1.4	2.5	2.5	51.2	50.0	6432
2x300^b	2	2.4	1.6	2.5	2.7	56.4	54.8	7680
2x400^b	2	2.6	1.6	2.5	2.9	61.9	60.3	12535
3 Cores
3x1.5^a	2	0.6	0.8	0.9	1.4	12.8	-	311
3x2.5^a	2	0.7	0.8	0.9	1.4	14.1	-	405
3x4.0^a	2	0.8	0.8	0.9	1.4	15.8	-	510
3x6.0^a	2	0.8	0.8	1.25	1.5	18.0	-	727
3x10^a	2	1.0	0.8	1.25	1.6	21.2	-	998
3x16^a	2	1.0	0.8	1.25	1.6	23.1	23.1	1291
3x25^b	2	1.2	1.0	1.6	1.7	25.0	24.6	1879
3x25^a	2	1.2	1.0	1.6	1.7	28.2	27.8	1989
3x35^b	2	1.2	1.0	1.6	1.8	27.1	26.7	2286
3x35^a	2	1.2	1.0	1.6	1.8	30.8	30.4	2439
3x50^b	2	1.4	1.0	1.6	1.9	30.5	30.1	1638
3x70^b	2	1.4	1.2	2.0	2.0	35.0	34.2	3272
3x95^b	2	1.6	1.2	2.0	2.1	39.3	38.5	4789
3x120^b	2	1.6	1.2	2.0	2.2	42.2	41.4	4068
3x150^b	2	1.8	1.4	2.5	2.4	47.5	46.3	5231
3x185^b	2	2.0	1.4	2.5	2.5	51.9	50.7	8660
3x240^b	2	2.2	1.6	2.5	2.6	57.8	56.2	8395
3x300^b	2	2.4	1.6	2.5	2.8	63.2	61.6	10006
3x400^b	2	2.6	1.6	2.5	3.0	69.6	68.0	16856
4 Cores
4x1.5^a	2	0.6	0.8	0.9	1.4	13.5	-	353
4x2.5^a	2	0.7	0.8	0.9	1.4	15.0	-	466
4x4.0^a	2	0.8	0.8	1.25	1.5	17.8	-	708
4x6.0^a	2	0.8	0.8	1.25	1.5	19.2	-	850
4x10^a	2	1.0	0.8	1.25	1.6	22.8	-	1186
4x16^a	2	1.0	1.0	1.6	1.7	26.3	25.9	1751
4x25^b	2	1.2	1.0	1.6	1.8	27.8	27.4	2254
4x25^a	2	1.2	1.0	1.6	1.8	30.7	30.3	2401
4x35^b	2	1.2	1.0	1.6	1.9	30.3	29.9	2769
4x35^a	2	1.2	1.0	1.6	1.9	33.7	33.3	2972
4x50^b	2	1.4	1.2	2.0	2.0	35.4	34.6	2198
4x70^b	2	1.4	1.2	2.0	2.1	39.2	38.4	3961
4x95^b	2	1.6	1.2	2.0	2.2	44.3	43.5	5891
4x120^b	2	1.6	1.4	2.5	2.4	49.3	48.1	5437
4x150^b	2	1.8	1.4	2.5	2.5	53.6	52.4	6357
4x185^b	2	2.0	1.6	2.5	2.6	59.0	57.4	10827
4x240^b	2	2.2	1.6	2.5	2.8	65.7	64.1	10363
4x300^b	2	2.4	1.6	2.5	3.0	72.0	70.4	12420
4x400^b	2	2.6	1.8	3.15	3.3	81.3	79.3	22477
5 Cores
5x1.5^a	2	0.6	0.8	0.9	1.4	14.3	-	396
5x2.5^a	2	0.7	0.8	0.9	1.5	16.3	-	538
5x4.0^a	2	0.8	0.8	1.25	1.5	19.0	-	807
5x6.0^a	2	0.8	0.8	1.25	1.6	20.9	-	987
5x10^a	2	1.0	1.0	1.6	1.7	25.8	-	1581
5x16^a	2	1.0	1.0	1.6	1.7	28.4	28.0	2039
5x25^a	2	1.2	1.0	1.6	1.9	33.5	33.1	2840
5x35^a	2	1.2	1.0	1.6	1.9	36.6	36.2	3518
5x50^a	2	1.4	1.2	2.0	2.1	43.0	42.2	4881
5x70^a	2	1.4	1.2	2.0	2.2	48.1	47.3	6325

^a Circular or compacted circular stranded conductor (class 2)
^b Shaped stranded conductor (class 2)

ELECTRICAL PROPERTIES

Conductor Operating Temperature	70°C
Ambient Temperature	30°C

Current-Carrying Capacities (Amp) according to BS 7671: 2008 table 4D4A

Conductor crosssectional area	Reference Method C (clipped direct)		Reference Method E (in free air or on a perforated cable tray, horizontal or vertical)		Reference Method D (direct in in groud or in ducting in groud. in or around buildings)
Conductor crosssectional area	1 two-core cable*, single-phase a.c. or d.c.	1 three-or four core cable*, three-phase a.c.	1 two-core cable*, singlephase a.c. or d.c.	1 three-or four core cable*, three-phase a.c.	1 two-core cable*, single-phase a.c. or d.c.	1 three-or four core cable*, threephase a.c.
1	2	3	4	5	6	7
mm2	A	A	A	A	A	A
1.5	21	18	22	19	22	18
2.5	28	25	31	26	29	24
4.0	38	33	41	35	37	30
6.0	49	42	53	45	46	38
10	67	58	72	62	60	50
16	89	77	97	83	78	64
25	118	102	128	110	99	82
35	145	125	157	135	119	98
50	175	151	190	163	140	116
70	222	192	241	207	173	143
95	269	231	291	251	204	169
120	310	267	336	290	231	192
150	356	306	386	332	261	217
185	405	348	439	378	292	243
240	476	409	516	445	336	280
300	547	469	592	510	379	316
400	621	540	683	590	-	-

Voltage Drop (Per Amp Per Meter) according to BS 7671: 2008 table 4D4B

Nominal Cross Section Area	Two-core cables d.c.	Two-core cable, single-phase a.c.			Three- or four-core cable, three-phase a.c.
1	2	3			4
mm2	mV/A/m	mV/A/m			mV/A/m
1.5	29	29			25
2.5	18	18			15
4.0	11	11			9.5
6.0	7.3	7.3			6.4
10	4.4	4.4			3.8
16	2.8	2.8			2.4
		r	x	z	r	x	z
25	1.75	1.75	0.170	1.75	1.50	0.145	1.50
35	1.25	1.25	0.165	1.25	1.10	0.145	1.10
50	0.93	0.93	0.165	0.94	0.80	0.140	0.81
70	0.63	0.63	0.160	0.65	0.55	0.140	0.57
95	0.46	0.47	0.155	0.50	0.41	0.135	0.43
120	0.36	0.38	0.155	0.41	0.33	0.135	0.35
150	0.29	0.30	0.155	0.34	0.26	0.130	0.29
185	0.23	0.25	0.150	0.29	0.21	0.130	0.25
240	0.180	0.190	0.150	0.24	0.165	0.130	0.21
300	0.145	0.155	0.145	0.21	0.135	0.130	0.185
400	0.105	0.115	0.145	0.185	0.100	0.125	0.160

Note: *Spacings larger than one cable diameter will result in a large voltage drop.
r = conductor resistance at operating temperature
x = reactance
z = impedance
