BURY CABLE 6381Y is a PVC insulated and PVC sheathed single core cable for building services, telecom power supplies, plant rooms and electrical cabinets. Class 5 bare copper supports installation and termination on protected fixed routes. The voltage selection is size-dependent: 450/750V for the stated 1.0-35 mm² range and 600/1000V from 50 mm². The dimensional table on this page covers 1.5-630 mm².

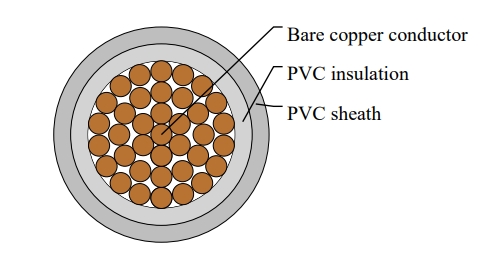

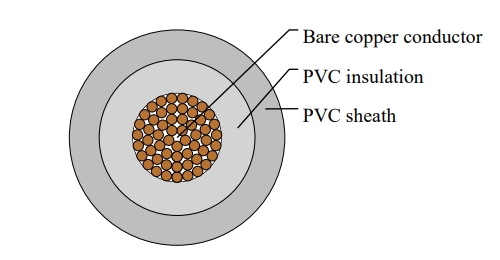

- Bare copper conductor
- Stranding to BS6360 CL-5 or IEC60228 CL-5
- PVC insulation Type TI1 to BS7655
- PVC sheath Type TM1 to BS7655
oxygen index> 30%
Meets requirements for flammability as required by BT specification M231
Blue (Blue), Grey (Grey), Green/Yellow (Green/Yellow), Brown (Brown), Special colours to order
- Working voltage: 1.0mmsq to 35mmsq - 450/750V
50mmsq and above - 600/1000V
- Minimum bending radius: up to 50 mmsq : 3xoverall diameter,
70mmsq and above: - 4xoverall diameter
- Operating temperature: -15o C to +70o C
- Insulation resistance: 10 MΩxkm
- Flame retardant: IEC 60332.1, BS4066 Part 1
| AWG (No of Strands/ Strand Diameter) | No. of Cores x Nominal Cross Sectional Area #xmmsq | Nominal Thickness of Insulation mm | Nominal Thickness of Sheath mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
| 16(30/30) | 1x1.5 | 0.9 | 0.8 | 4.9 | 36 |
| 14(50/30) | 1x2.5 | 0.9 | 0.8 | 5.4 | 52 |
| 12(56/28) | 1x4 | 1 | 0.9 | 6.3 | 76 |
| 10(84/28) | 1x6 | 1.1 | 0.9 | 7.6 | 100 |
| 8(80/26) | 1x10 | 1.2 | 1 | 8.6 | 160 |
| 6(128/26) | 1x16 | 1.2 | 1 | 9.8 | 230 |
| 4(200/26) | 1x25 | 1.4 | 1.1 | 11.5 | 340 |
| 2(280/26) | 1x35 | 1.4 | 1.1 | 12.5 | 440 |
| 1(400/26) | 1x50 | 1.4 | 1.4 | 15.1 | 541 |
| 2/0(356/24) | 1x70 | 1.4 | 1.4 | 17.0 | 749 |
| 3/0(485/24) | 1x95 | 1.6 | 1.5 | 19.1 | 1000 |
| 4/0(614/24) | 1x120 | 1.6 | 1.8 | 21.6 | 1241 |
| 300MCM (765/24) | 1x150 | 1.8 | 1.8 | 23.4 | 1523 |
| 350MCM (944/24) | 1x185 | 2 | 1.8 | 25.5 | 1942 |
| 500MCM(1225/24) | 1x240 | 2.2 | 1.8 | 28.5 | 2514 |
| -(1525/24) | 1x300 | 2.4 | 2 | 31.2 | 3125 |
| -(2013/24) | 1x400 | 2.6 | 2.1 | 35.3 | 3967 |
| -(1769/23) | 1x500 | 2.8 | 2.2 | 38.8 | 5063 |
| -(2257/23) | 1x630 | 2.8 | 2.4 | 43.8 | 6491 |

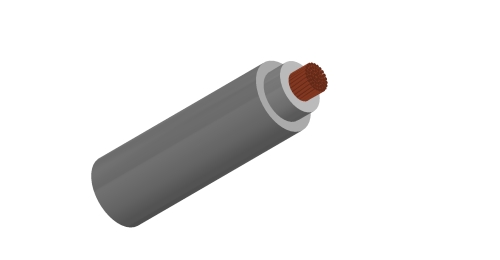

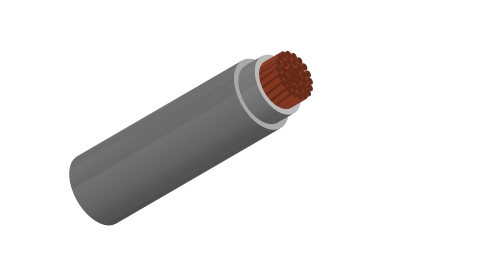

Class 5 bare copper conductor with TI1 PVC insulation and TM1 PVC sheath.
Separate insulation and outer sheath layers for fixed equipment and building wiring.
The original parameter table gives stranding, layer thicknesses, nominal overall diameter and weight for 19 single core sizes.
Match conductor cross-section and its stated voltage band to the circuit; assess current, voltage drop, grouping and route temperature.
Keep bends at or above 3 times overall diameter through 50 mm², and 4 times overall diameter from 70 mm².
Select suitable terminals for Class 5 conductors and specify sheath/core colours, cut lengths and packing. The listed operating range is -15°C to +70°C.
Typical locations include equipment rooms, plant rooms, distribution cabinets and protected routes serving telecom and low voltage equipment.
The stated range is 450/750V for 1.0-35 mm² and 600/1000V from 50 mm². Select the cable size and voltage band together.
6381Y uses Class 5 bare copper, TI1 PVC insulation and a TM1 PVC outer sheath.
The table contains 19 single core sizes from 1.5 to 630 mm², with construction dimensions and nominal weights.
6381B offers a Class 5 copper single core construction with XLPE insulation and an LSZH sheath for installations specifying low smoke and halogen free materials.
