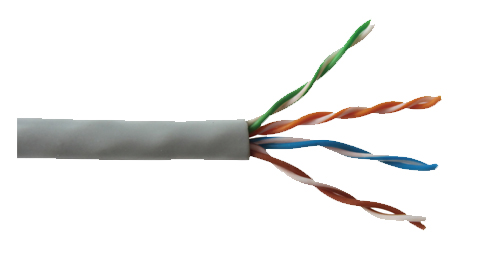

Cat5E Gigabit Ethernet Cable - Compliant with ISO/IEC 11801 standards, supports transmission frequencies up to 100MHz, and is suitable for voice and data infrastructure cabling. The product features 24AWG solid bare copper conductors and a high-stability twisted pair structure, ensuring excellent electrical performance and signal integrity.
Multiple models are available: UTP unshielded type, F/UTP overall aluminum foil shielded type, and SF/UTP overall aluminum foil and copper mesh double-shielded type, meeting various electromagnetic environmental requirements. The cable outer sheath can be optionally equipped with special protective layers such as flame-retardant, UV-resistant, oil/hydrocarbon-resistant, and rodent/insect-resistant, providing both mechanical protection and flexibility.
Core features include: • Full series compliant with BS EN 60332-1-2 vertical flame test • Operating temperature range: -30°C to +75°C • Precisely controlled characteristic impedance (100±15Ω) and propagation delay • Strict attenuation, crosstalk, and return loss parameters • Compliant with international cabling standards such as ANSI/TIA/EIA 568
Suitable for data centers, enterprise networks, security systems, and industrial automation scenarios, providing stable and reliable Gigabit network transmission solutions. Customizable flame-retardant ratings and protective performance based on customer requirements, with support for UL/IEC series fire safety certifications.
ISO/IEC 11801 , EN 50173 , ANSI/TIA/EIA 568
Flame Retardance (Single Vertical Wire Test) ：BS EN 60332-1-2
Conductor : 24AWG solid bare copper.
Insulation : PE.

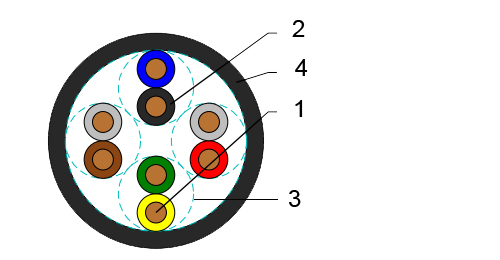

Twinning : Two coloured insulated conductors twisted together to form a pair.
Outer Sheath : Thermoplastic PVC compound.
Outer Sheath Option : UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.
Cat5EF/UTP : These cables have collective shielding of Aluminium/polyester tape with drain wire.
Cat5ESF/UTP : These cables have double collective shielding of Aluminium/polyester tape & copper wire braid.
Temperature range : -30°C - +75°C
Minimum bending radius during installation (mobile state) : 8 x Overall Diameter
Minimum bending radius during operation (fixed state) : 4 x Overall Diameter
| AWG | 24 | |
| Nominal Conductor Diameter | mm | 0.50/0.51/0.53 |
| Maximum DC Resistance@20°C | Ω/100m | 9.38 |
| Maximum DCR Unbalance | % | 5 |
| Maximum Mutual Capacitance | pF/m | 55.8 |
| Maximum Capacitance Unbalance | pF/100m | 330 |
| Characteristic Impedance@1-100MHz | Ω | 100±15 |
| Maximum Propagation Delay Skew | ns/100m | 45 |
| FREQ | Attenuation | NEXT | PSNEXT | ELFEXT | PSELFEXT | RL |
|---|---|---|---|---|---|---|
| MHz | dB/100m | dB | dB | dB/100m | dB/100m | dB |
| 0.772 | 1.8 | 67.0 | 64.0 | 66.0 | 63.0 | — |
| 1 | 2.0 | 65.3 | 62.3 | 63.8 | 60.8 | 20.2 |
| 4 | 4.1 | 56.3 | 53.3 | 51.7 | 48.7 | 23.0 |
| 8 | 5.8 | 51.8 | 48.8 | 45.7 | 42.7 | 24.5 |
| 10 | 6.5 | 50.3 | 47.3 | 43.8 | 40.8 | 25.0 |
| 16 | 8.2 | 47.3 | 44.3 | 39.7 | 36.7 | 25.0 |
| 20 | 9.3 | 45.8 | 42.8 | 37.7 | 34.7 | 25.0 |
| 25 | 10.4 | 44.3 | 41.3 | 35.8 | 32.8 | 24.3 |
| 31.25 | 11.7 | 42.9 | 39.9 | 33.9 | 30.9 | 23.6 |
| 62.5 | 17.0 | 38.4 | 35.4 | 27.8 | 24.8 | 21.5 |
| 100 | 22.0 | 35.3 | 32.3 | 23.8 | 20.8 | 20.1 |
| Cable Code | Conductor Diameter | Diameter Over Insulation | Pairs | Screen | Approx. Overall Diameter |
|---|---|---|---|---|---|
| mm | mm | mm | |||
| FLP-CAT5EU/UTP4P24 | 0.50/0.51 | 0.91 | 4 | Nil | 5.1 |
| FLP-CAT5EF/UTP4P24 | 0.53 | 1.00 | 4 | Overall Aluminum Tape Screen | 6.3 |
| FLP-CAT5ESF/UTP4P24 | 0.53 | 1.00 | 4 | Overall Aluminum Tape Screen & Copper Wire Braid | 6.6 |
