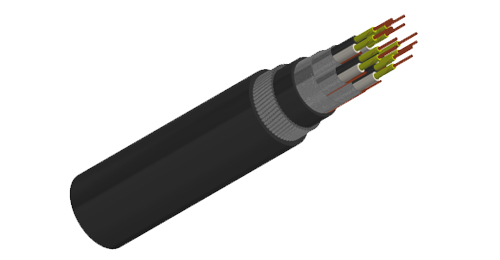

For industrial instrument circuits requiring both pair-by-pair screening and mechanical protection. Individual foil screens and an overall screen surround the signal pairs, while galvanised steel wire armour protects the cable assembly. Mica glass tape and LSZH sheaths form part of the fire resistant construction.
Basic design to BS EN 50288-7 (formerly BS 5308)
| Circuit Integrity | IEC 60331-21; BS 6387 CWZ (Optional); BS EN 50200 (PH30/PH60/PH120) |
|---|---|
| Flame Retardance (Single Vertical Wire or cable test) | IEC 60332-1-2; EN 60332-1-2 |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) | IEC 60332-3-24; EN 60332-3-24 |
| Halogen Free | IEC 60754-1; EN 50267-2-1 |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2 |
| Minimum Smoke Emission | IEC 61034-2; EN 61034-2 |
300, 500V

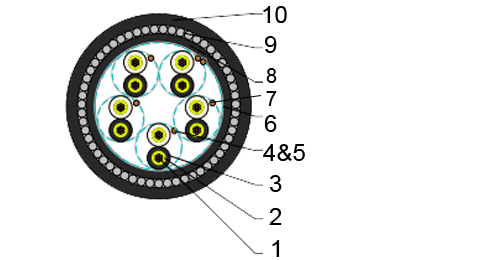

| Conductor | Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and class 5. |
| Fire Barrier | Mica glass tape. |
| Insulation | Extruded XLPE compound according to EN 50290-2-29. LSZH, PE, PP compound can be offered as options. |
| Pairs | Two insulated conductors uniformly twisted together with a lay not exceeding 100mm (≤1.5mm²) or 150mm (for 2.5mm²). |
| Individual Screen | Aluminium/polyester tape is applied over each pair with metallic side down in contact with tinned copper drain wire, 0.5mm². |
| Binder Tape | PETP transparent tape. |
| Overall Screen | Aluminium/polyester tape is applied over the laid up cores with metallic side down in contact with tinned copper drain wire, 0.5mm². Copper braid screen or aluminium/polyester tape combination with copper braid screen can be offered as option. |
| Inner Sheath | Thermoplastic LSZH compound. |
| Amouring | Galvanized steel wire armour. |
| Outer Sheath | Thermoplastic LSZH compound according to EN 50290-2-22. |
| Outer Sheath Option | Thermoplastic LSZH compound. UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option. |
| Insulation Colour | Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting. |
| Outer Sheath | Black. Other colours can be offered upon request. |
| Temperature range during operation | -30°C - +90°C |
| Temperature range during installation | -5°C - +50°C |
| Maximum short circuit temperature (5 Seconds) | 250°C |
| Minimum bending radius | 10 x Overall Diameter |
| Conductor area size | mm² | 0.5 | 0.75 | 1.0 | 1.5 | |
|---|---|---|---|---|---|---|
| Insulation thickness (Nominal) | mm | 0.4 | 0.4 | 0.4 | 0.5 | |
| Insulation thickness (Minimum) | mm | 0.26 | 0.26 | 0.26 | 0.35 | |
| Conductor resistance (20°C) | ohm/km | 36.7 | 25.0 | 18.5 | 12.3 | |
| Minimum Insulation resistance (20°C) | Mohm/km | 1000 | ||||
| Maximum Mutual capacitance | nf/km | 250 | ||||
| Capacitance Unbalance | pf/500m | 500 | ||||
| Maximum l/R (ratio) | μH/Ω | 25 | 25 | 25 | 40 | |
| Operating Voltage | V | 300 | ||||
| Dielectric strength for 1 minute | AC | V | ≥1000 | |||
| DC | V | ≥2000 | ||||
| Conductor area size | mm² | 0.5 | 0.75 | 1.0 | 1.5 | 2.5 | |
|---|---|---|---|---|---|---|---|
| Insulation thickness (nominal) | mm | 0.6 | 0.6 | 0.6 | 0.6 | 0.7 | |
| Insulation thickness (minimum) | mm | 0.44 | 0.44 | 0.44 | 0.44 | 0.53 | |
| Conductor resistance (20°C) | ohm/km | 36.7 | 25.0 | 18.5 | 12.3 | 7.4 | |
| Minimum Insulation resistance (20°C) | Mohm/km | 1000 | |||||
| Maximum Mutual capacitance | nf/km | 250 | |||||
| Capacitance Unbalance | pf/500m | 500 | |||||
| Maximum l/R (ratio) | μH/Ω | 25 | 25 | 25 | 40 | 60 | |
| Operating Voltage | V | 500 | |||||
| Dielectric strength for 1 minute | AC | V | ≥2000 | ||||
| DC | V | ≥3000 | |||||
| Conductor | RE-2X(St)HSWAH PiMF...CI | ||||||
|---|---|---|---|---|---|---|---|
| No. of Pairs X Cross Section | Class of Conductor | Nominal Insulation Thickness | Nominal Inner Sheath Thickness | Nominal Armour Wire Diameter | Nominal Outer Sheath Thickness | Approx. Overall Diameter | Approx. Weight |
| mm² | mm | mm | mm | mm | mm | kg/km | |
| 0.5mm² | |||||||
| 2x2x0.5 | 2 | 0.4 | 1.0 | 0.9 | 1.4 | 16.6 | 490 |
| 3x2x0.5 | 2 | 0.4 | 1.0 | 0.9 | 1.4 | 17.3 | 546 |
| 4x2x0.5 | 2 | 0.4 | 1.1 | 0.9 | 1.5 | 19.0 | 644 |
| 5x2x0.5 | 2 | 0.4 | 1.1 | 1.25 | 1.5 | 20.7 | 851 |
| 8x2x0.5 | 2 | 0.4 | 1.1 | 1.25 | 1.5 | 24.0 | 1067 |
| 10x2x0.5 | 2 | 0.4 | 1.2 | 1.25 | 1.6 | 28.0 | 1309 |
| 12x2x0.5 | 2 | 0.4 | 1.2 | 1.25 | 1.6 | 28.6 | 1403 |
| 16x2x0.5 | 2 | 0.4 | 1.3 | 1.6 | 1.7 | 32.4 | 1888 |
| 20x2x0.5 | 2 | 0.4 | 1.4 | 1.6 | 1.7 | 34.8 | 2152 |
| 24x2x0.5 | 2 | 0.4 | 1.5 | 1.6 | 1.8 | 39.3 | 2542 |
| 0.75mm² | |||||||
| 2x2x0.75 | 2 | 0.4 | 1.0 | 0.9 | 1.4 | 17.2 | 524 |
| 3x2x0.75 | 2 | 0.4 | 1.1 | 0.9 | 1.5 | 18.4 | 613 |
| 4x2x0.75 | 2 | 0.4 | 1.1 | 0.9 | 1.5 | 19.8 | 697 |
| 5x2x0.75 | 2 | 0.4 | 1.2 | 1.25 | 1.5 | 22.2 | 937 |
| 8x2x0.75 | 2 | 0.4 | 1.2 | 1.25 | 1.6 | 25.5 | 1197 |
| 10x2x0.75 | 2 | 0.4 | 1.3 | 1.25 | 1.6 | 29.3 | 1451 |
| 12x2x0.75 | 2 | 0.4 | 1.3 | 1.25 | 1.6 | 30.0 | 1578 |
| 16x2x0.75 | 2 | 0.4 | 1.4 | 1.6 | 1.7 | 34.1 | 2095 |
| 20x2x0.75 | 2 | 0.4 | 1.5 | 1.6 | 1.8 | 36.8 | 2415 |
| 24x2x0.75 | 2 | 0.4 | 1.5 | 1.6 | 1.8 | 41.3 | 2800 |
| 1.0mm² | |||||||
| 2x2x1.0 | 2 | 0.4 | 1.0 | 0.9 | 1.4 | 18.0 | 567 |
| 3x2x1.0 | 2 | 0.4 | 1.1 | 0.9 | 1.5 | 19.2 | 667 |
| 4x2x1.0 | 2 | 0.4 | 1.2 | 1.25 | 1.5 | 21.6 | 909 |
| 5x2x1.0 | 2 | 0.4 | 1.2 | 1.25 | 1.6 | 23.4 | 1036 |
| 8x2x1.0 | 2 | 0.4 | 1.2 | 1.25 | 1.6 | 26.7 | 1319 |
| 10x2x1.0 | 2 | 0.4 | 1.3 | 1.6 | 1.7 | 31.7 | 1821 |
| 12x2x1.0 | 2 | 0.4 | 1.4 | 1.6 | 1.7 | 32.8 | 1982 |
| 16x2x1.0 | 2 | 0.4 | 1.5 | 1.6 | 1.8 | 36.2 | 2372 |
| 20x2x1.0 | 2 | 0.4 | 1.5 | 1.6 | 1.8 | 38.8 | 2692 |
| 24x2x1.0 | 2 | 0.4 | 1.6 | 2.0 | 1.9 | 43.9 | 3516 |
| 1.5mm² | |||||||
| 2x2x1.5 | 2 | 0.5 | 1.1 | 1.25 | 1.5 | 20.7 | 805 |
| 3x2x1.5 | 2 | 0.5 | 1.2 | 1.25 | 1.6 | 22.1 | 937 |
| 4x2x1.5 | 2 | 0.5 | 1.2 | 1.25 | 1.6 | 23.8 | 1072 |
| 5x2x1.5 | 2 | 0.5 | 1.3 | 1.25 | 1.6 | 25.8 | 1232 |
| 8x2x1.5 | 2 | 0.5 | 1.3 | 1.25 | 1.7 | 29.9 | 1604 |
| 10x2x1.5 | 2 | 0.5 | 1.4 | 1.6 | 1.8 | 35.5 | 2198 |
| 12x2x1.5 | 2 | 0.5 | 1.5 | 1.6 | 1.8 | 36.7 | 2400 |
| 16x2x1.5 | 2 | 0.5 | 1.6 | 1.6 | 1.9 | 40.6 | 2887 |
| 20x2x1.5 | 2 | 0.5 | 1.7 | 2.0 | 2.0 | 43.9 | 3679 |
| 24x2x1.5 | 2 | 0.5 | 1.8 | 2.0 | 2.0 | 49.5 | 4311 |
| Conductor | RE-2X(St)HSWAH PiMF...CI | ||||||
|---|---|---|---|---|---|---|---|
| No. of Pairs X Cross Section | Class of Conductor | Nominal Insulation Thickness | Nominal Inner Sheath Thickness | Nominal Armour Wire Diameter | Nominal Outer Sheath Thickness | Approx. Overall Diameter | Approx. Weight |
| mm² | mm | mm | mm | mm | mm | kg/km | |
| 0.5mm² | |||||||
| 2x2x0.5 | 2 | 0.6 | 1.0 | 0.9 | 1.4 | 18.0 | 548 |
| 3x2x0.5 | 2 | 0.6 | 1.1 | 0.9 | 1.5 | 19.3 | 638 |
| 4x2x0.5 | 2 | 0.6 | 1.1 | 1.25 | 1.5 | 21.4 | 853 |
| 5x2x0.5 | 2 | 0.6 | 1.2 | 1.25 | 1.6 | 23.4 | 987 |
| 8x2x0.5 | 2 | 0.6 | 1.2 | 1.25 | 1.6 | 26.8 | 1241 |
| 10x2x0.5 | 2 | 0.6 | 1.3 | 1.25 | 1.7 | 31.1 | 1522 |
| 12x2x0.5 | 2 | 0.6 | 1.4 | 1.25 | 1.7 | 32.2 | 1656 |
| 16x2x0.5 | 2 | 0.6 | 1.5 | 1.6 | 1.8 | 36.3 | 2214 |
| 20x2x0.5 | 2 | 0.6 | 1.5 | 1.6 | 1.8 | 38.9 | 2493 |
| 24x2x0.5 | 2 | 0.6 | 1.6 | 2.0 | 1.9 | 44.0 | 3278 |
| 0.75mm² | |||||||
| 2x2x0.75 | 2 | 0.6 | 1.1 | 0.9 | 1.5 | 19.0 | 608 |
| 3x2x0.75 | 2 | 0.6 | 1.1 | 1.25 | 1.5 | 20.7 | 806 |
| 4x2x0.75 | 2 | 0.6 | 1.2 | 1.25 | 1.6 | 22.6 | 943 |
| 5x2x0.75 | 2 | 0.6 | 1.2 | 1.25 | 1.6 | 24.3 | 1059 |
| 8x2x0.75 | 2 | 0.6 | 1.3 | 1.25 | 1.6 | 28.0 | 1361 |
| 10x2x0.75 | 2 | 0.6 | 1.4 | 1.6 | 1.7 | 33.3 | 1882 |
| 12x2x0.75 | 2 | 0.6 | 1.4 | 1.6 | 1.7 | 34.2 | 2014 |
| 16x2x0.75 | 2 | 0.6 | 1.5 | 1.6 | 1.8 | 37.8 | 2402 |
| 20x2x0.75 | 2 | 0.6 | 1.6 | 1.6 | 1.9 | 40.9 | 2769 |
| 24x2x0.75 | 2 | 0.6 | 1.7 | 2.0 | 2.0 | 46.3 | 3622 |
| 1.0mm² | |||||||
| 2x2x1.0 | 2 | 0.6 | 1.1 | 0.9 | 1.5 | 19.8 | 652 |
| 3x2x1.0 | 2 | 0.6 | 1.2 | 1.25 | 1.5 | 21.7 | 883 |
| 4x2x1.0 | 2 | 0.6 | 1.2 | 1.25 | 1.6 | 23.5 | 1018 |
| 5x2x1.0 | 2 | 0.6 | 1.3 | 1.25 | 1.6 | 25.5 | 1167 |
| 8x2x1.0 | 2 | 0.6 | 1.3 | 1.25 | 1.7 | 29.6 | 1504 |
| 10x2x1.0 | 2 | 0.6 | 1.4 | 1.6 | 1.7 | 34.8 | 2049 |
| 12x2x1.0 | 2 | 0.6 | 1.5 | 1.6 | 1.8 | 36.1 | 2250 |
| 16x2x1.0 | 2 | 0.6 | 1.6 | 1.6 | 1.9 | 40.0 | 2692 |
| 20x2x1.0 | 2 | 0.6 | 1.7 | 2.0 | 1.9 | 43.0 | 3409 |
| 24x2x1.0 | 2 | 0.6 | 1.8 | 2.0 | 2.0 | 48.8 | 4017 |
| 1.5mm² | |||||||
| 2x2x1.5 | 2 | 0.6 | 1.1 | 1.25 | 1.5 | 21.5 | 841 |
| 3x2x1.5 | 2 | 0.6 | 1.2 | 1.25 | 1.6 | 22.9 | 980 |
| 4x2x1.5 | 2 | 0.6 | 1.3 | 1.25 | 1.6 | 24.9 | 1140 |
| 5x2x1.5 | 2 | 0.6 | 1.3 | 1.25 | 1.7 | 27.0 | 1305 |
| 8x2x1.5 | 2 | 0.6 | 1.4 | 1.6 | 1.7 | 32.0 | 1905 |
| 10x2x1.5 | 2 | 0.6 | 1.5 | 1.6 | 1.8 | 37.1 | 2331 |
| 12x2x1.5 | 2 | 0.6 | 1.6 | 1.6 | 1.9 | 38.5 | 2566 |
| 16x2x1.5 | 2 | 0.6 | 1.7 | 2.0 | 2.0 | 42.6 | 3401 |
| 20x2x1.5 | 2 | 0.6 | 1.8 | 2.0 | 2.0 | 45.9 | 3892 |
| 24x2x1.5 | 2 | 0.6 | 1.9 | 2.0 | 2.1 | 52.1 | 4590 |
| 2.5mm² | |||||||
| 2x2x2.5 | 2 | 0.7 | 1.2 | 1.25 | 1.6 | 24.1 | 1022 |
| 3x2x2.5 | 2 | 0.7 | 1.3 | 1.25 | 1.0 | 25.5 | 1186 |
| 4x2x2.5 | 2 | 0.7 | 1.4 | 1.25 | 1.7 | 27.9 | 1405 |
| 5x2x2.5 | 2 | 0.7 | 1.5 | 1.25 | 1.8 | 30.6 | 1639 |
| 8x2x2.5 | 2 | 0.7 | 1.6 | 1.6 | 1.8 | 36.2 | 2392 |
| 10x2x2.5 | 2 | 0.7 | 1.7 | 1.6 | 2.0 | 42.3 | 2955 |
| 12x2x2.5 | 2 | 0.7 | 1.8 | 2.0 | 2.0 | 43.7 | 3567 |
| 16x2x2.5 | 2 | 0.7 | 1.9 | 2.0 | 2.1 | 48.5 | 4280 |
| 20x2x2.5 | 2 | 0.7 | 2.1 | 2.5 | 2.2 | 52.6 | 5499 |
| 24x2x2.5 | 2 | 0.7 | 2.2 | 2.5 | 2.4 | 59.9 | 6505 |
Individual pair screens plus an overall aluminium/polyester screen.
Copper conductors with mica glass tape and XLPE insulation.
Galvanised steel wire armour with LSZH inner and outer sheaths.
Choose voltage version, pair count, conductor area and class. Coordinate glands, armour termination and screen connections with the installation design.
Fire Resistant Multipair Instrumentation Cable, Individual and Overall Screened
Fire Resistant Multipair Instrumentation Cable, Overall Screened, SWA
Fire Resistant Multicore Instrumentation Cable, Overall Screened, SWA
Each twisted pair is individually screened, and an additional overall foil screen surrounds the assembly.
The armour consists of galvanised steel wires applied over the inner sheath.
Mica glass tape is included beneath the XLPE insulation.
Separate 300V and 500V versions are detailed in the electrical and dimensional tables.
The listed minimum bending radius is 10 times the overall cable diameter.
