H03V2V2-F and H03V2V2H2-F are heat-resistant PVC flexible cables for light indoor appliances and lighting connections in homes, kitchens and offices. The round and flat constructions use class 5 bare copper conductors, TI3 insulation and a TM3 sheath. Their rated voltage is 300/300V. The range table lists 0.5 and 0.75 mm2 conductor areas for the available constructions.
CEI 20-20/12, CEI 20-35 (EN60332-1) / CEI 20-37 (EN50267), EN50265-2-1

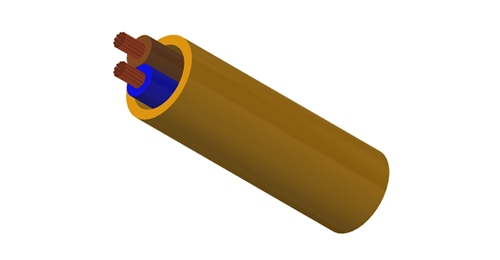

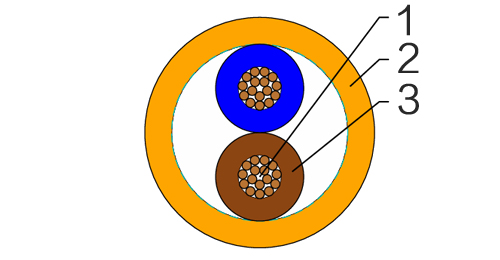

| Bare copper fine wire conductor |
| Stranded to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5 and HD 383 |
| PVC core insulation TI3 to VDE-0281 Part 1 |
| Color coded to VDE-0293-308 |
| PVC outer jacket TM3 |
| Working voltage | 300/300 volts |
| Test voltage | 3000 volts |
| Flexing bending radius | 15 x O |
| Static bending radius | 4 x O |
| Flexing temperature | +5oC to +90oC |
| Static temperature | -40oC to +90oC |
| Short circuit temperature | +160oC |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 20 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | mm | kg/km | kg/km | |
| H03V2V2-F | ||||||
| 20(16/32) | 2 x 0.50 | 0.5 | 0.6 | 5 | 9.6 | 38 |
| 20(16/32) | 3 x 0.50 | 0.5 | 0.6 | 5.4 | 14.4 | 45 |
| 20(16/32) | 4 x 0.50 | 0.5 | 0.6 | 5.8 | 19.2 | 55 |
| 18(24/32) | 2 x 0.75 | 0.5 | 0.6 | 5.5 | 14.4 | 46 |
| 18(24/32) | 3 x 0.75 | 0.5 | 0.6 | 6 | 21.6 | 59 |
| 18(24/32) | 4 x 0.75 | 0.5 | 0.6 | 6.5 | 28.8 | 72 |
| H03V2V2H2-F | ||||||
| 20(16/32) | 2 x 0.50 | 0.5 | 0.6 | 3.2 x 5.2 | 9.7 | 32 |
| 18(24/32) | 2 x 0.75 | 0.5 | 0.6 | 3.4 x 5.6 | 14.4 | 35 |
Heat-resistant PVC insulation and sheath with a 90°C maximum normal conductor temperature.
Round H03V2V2-F and flat H03V2V2H2-F alternatives.
Separate nominal dimensions for each core-count and area combination.
Check the appliance’s specified cable voltage, core arrangement and cord-entry shape. Keep the cable clear of direct contact with hot components and radiant heat, and provide appropriate strain relief. Use the separate 300/500V H05V2V2 range where that voltage rating is required; select the complete construction rather than substituting by appearance.
