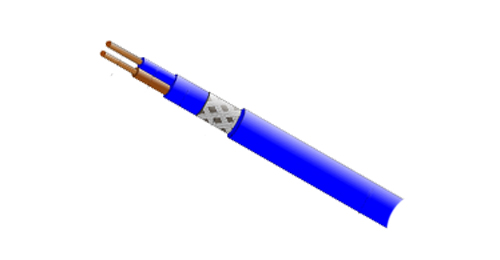

H05VVC4V5-K is a flexible screened cable for indoor control, measurement and equipment connections. PVC-insulated class 5 copper cores sit within an inner sheath, followed by a tinned copper wire braid and a TM5 PVC outer sheath. The braid provides an overall screen for circuits exposed to electromagnetic interference when incorporated into a suitable bonding and termination design.
CEI 20-20/13, CEI 20-35 (EN60332-1), CEI 20-52, HD 21.13 S1
Technical Characteristics

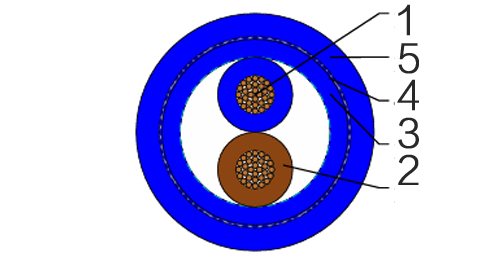

| Fine bare copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
| PVC insulation TI2 to DIN VDE 0281 part 1 |
| Green-yellow grounding (3 conductors and above) |
| Cores to VDE-0293 colors |
| PVC inner sheath TM2 to DIN VDE 0281 part 1 |
| Tinned copper braided shielding, covering approx. 85% |
| PVC outer jacket TM5 to DIN VDE 0281 part 1 |
| Working voltage | 300/500v |
| Test voltage | 2000volts |
| Flexing bending radius | 10 x O |
| Static bending radius | 5 x O |
| Flexing temperature | -5oC to +70oC |
| Static temperature | -40oC to +70oC |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 20 MΩ x km |
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Inner Sheath | Nominal Thickness of outer Sheath | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | mm | mm | kg/Km | kg/Km | |
| 20(16/32) | 2 x 0.50 | 0.6 | 0.7 | 0.9 | 7.7 | 35 | 105 |
| 18(24/32) | 2 x 0.75 | 0.6 | 0.7 | 0.9 | 8 | 39 | 115 |
| 17(32/32) | 2 x 1.0 | 0.6 | 0.7 | 0.9 | 8.2 | 44 | 125 |
| 16(30/30) | 2 x 1.50 | 0.7 | 0.7 | 1.0 | 9.3 | 58 | 160 |
| 14(50/30) | 2 x 2.50 | 0.8 | 0.7 | 1.1 | 10.7 | 82 | 215 |
| 20(16/32) | 3 x 0.50 | 0.6 | 0.7 | 0.9 | 8 | 40 | 115 |
| 18(24/32) | 3 x 0.75 | 0.6 | 0.7 | 0.9 | 8.3 | 47 | 125 |
| 17(32/32) | 3 x 1.0 | 0.6 | 0.7 | 1.0 | 8.8 | 54 | 145 |
| 16(30/30) | 3 x 1.50 | 0.7 | 0.7 | 1.0 | 9.7 | 73 | 185 |
| 14(50/30) | 3 x 2.50 | 0.8 | 0.7 | 1.1 | 11.3 | 106 | 250 |
| 20(16/32) | 4 x 0.50 | 0.6 | 0.7 | 0.9 | 8.5 | 44 | 125 |
| 18(24/32) | 4 x 0.75 | 0.6 | 0.7 | 1.0 | 9.1 | 58 | 155 |
| 17(32/32) | 4 x 1.0 | 0.6 | 0.7 | 1.0 | 9.4 | 68 | 170 |
| 16(30/30) | 4 x 1.50 | 0.7 | 0.7 | 1.1 | 10.7 | 93 | 220 |
| 14(50/30) | 4 x 2.50 | 0.8 | 0.8 | 1.2 | 12.6 | 135 | 305 |
| 20(16/32) | 5 x 0.50 | 0.6 | 0.7 | 1.0 | 9.3 | 55 | 155 |
| 18(24/32) | 5 x 0.75 | 0.6 | 0.7 | 1.1 | 9.7 | 66 | 175 |
| 17(32/32) | 5 x 1.0 | 0.6 | 0.7 | 1.1 | 10.3 | 78 | 200 |
| 16(30/30) | 5 x 1.50 | 0.7 | 0.8 | 1.2 | 11.8 | 106 | 265 |
| 14(50/30) | 5 x 2.50 | 0.8 | 0.8 | 1.3 | 13.9 | 181 | 385 |
| 20(16/32) | 7 x 0.50 | 0.6 | 0.7 | 1.1 | 10.8 | 69 | 205 |
| 18(24/32) | 7 x 0.75 | 0.6 | 0.7 | 1.2 | 11.5 | 84 | 250 |
| 17(32/32) | 7 x 1.0 | 0.6 | 0.8 | 1.2 | 12.2 | 107 | 275 |
| 16(30/30) | 7 x 1.50 | 0.7 | 0.8 | 1.3 | 14.1 | 162 | 395 |
| 14(50/30) | 7 x 2.50 | 0.8 | 0.8 | 1.5 | 16.5 | 238 | 525 |
| 20(16/32) | 12 x 0.50 | 0.6 | 0.8 | 1.3 | 13.3 | 98 | 285 |
| 18(24/32) | 12 x 0.75 | 0.6 | 0.8 | 1.3 | 13.9 | 125 | 330 |
| 17(32/32) | 12 x 1.0 | 0.6 | 0.8 | 1.4 | 14.7 | 176 | 400 |
| 16(30/30) | 12 x 1.50 | 0.7 | 0.8 | 1.5 | 16.7 | 243 | 525 |
| 14(50/30) | 12 x 2.50 | 0.8 | 0.8 | 1.7 | 19.9 | 367 | 745 |
| 20(16/32) | 18 x 0.50 | 0.6 | 0.9 | 1.3 | 18.6 | 147 | 385 |
| 18(24/32) | 18 x 0.75 | 0.6 | 0.8 | 1.5 | 19.9 | 200 | 475 |
| 17(32/32) | 18 x 1.0 | 0.6 | 0.8 | 1.5 | 20.8 | 243 | 525 |
| 16(30/30) | 18 x 1.50 | 0.7 | 0.8 | 1.7 | 24.1 | 338 | 720 |
| 14(50/30) | 18 x 2.50 | 0.8 | 0.9 | 2.0 | 28.5 | 555 | 1075 |
| 20(16/32) | 25 x 0.50 | 0.6 | 0.8 | 1.6 | 22.1 | 199 | 505 |
| 18(24/32) | 25 x 0.75 | 0.6 | 0.9 | 1.7 | 23.7 | 273 | 625 |
| 17(32/32) | 25 x 1.0 | 0.6 | 0.9 | 1.7 | 24.7 | 351 | 723 |
| 16(30/30) | 25 x 1.50 | 0.7 | 0.9 | 2.0 | 28.6 | 494 | 990 |
| 14(50/30) | 25 x 2.50 | 0.8 | 1.0 | 2.3 | 34.5 | 792 | 1440 |
| 20(16/32) | 36 x 0.50 | 0.6 | 0.9 | 1.7 | 24.7 | 317 | 620 |
| 18(24/32) | 36 x 0.75 | 0.6 | 0.9 | 1.8 | 26.2 | 358 | 889 |
| 17(32/32) | 36 x 1.0 | 0.6 | 0.9 | 1.9 | 27.6 | 438 | 910 |
| 16(30/50) | 36 x 1.50 | 0.7 | 1.0 | 2.2 | 32.5 | 662 | 1305 |
| 14(30/32) | 36 x 2.50 | 0.8 | 1.0 | 2.4 | 38.5 | 1028 | 1850 |
| 20(16/32) | 48 x 0.50 | 0.6 | 0.9 | 1.9 | 28.3 | 353 | 845 |
| 18(24/32) | 48 x 0.75 | 0.6 | 1.0 | 2.1 | 30.4 | 490 | 1060 |
| 17(32/32) | 48 x 1.0 | 0.6 | 1.0 | 2.1 | 31.9 | 604 | 1210 |
| 16(30/30) | 48 x 1.50 | 0.7 | 1.1 | 2.4 | 37 | 855 | 1665 |
| 14(50/30) | 48 x 2.50 | 0.8 | 1.2 | 2.4 | 43.7 | 1389 | 2390 |
| 20(16/32) | 60 x 0.50 | 0.6 | 1.0 | 2.1 | 31.1 | 432 | 1045 |
| 18(24/32) | 60 x 0.75 | 0.6 | 1.0 | 2.3 | 329 | 576 | 1265 |
| 17(32/32) | 60 x 1.0 | 0.6 | 1.0 | 2.3 | 34.7 | 720 | 1455 |
| 16(30/30) | 60 x 1.50 | 0.7 | 1.1 | 2.4 | 39.9 | 1050 | 1990 |
| 14(50/30) | 60 x 2.50 | 0.8 | 1.2 | 2.4 | 47.2 | 1706 | 2870 |
300/500V working voltage and class 5 bare copper conductors.
PVC inner sheath separates the core assembly from the tinned copper braid.
Approximately 85% braid coverage is specified in the construction data.
Match the core count, conductor area and overall diameter to the control equipment. Plan screen continuity through connectors and glands in accordance with the system design. For frequent movement or torsion, specify the motion profile before selecting the cable; shielding and conductor flexibility do not by themselves define a continuous-flex rating.
What forms the screen?
A tinned copper wire braid surrounds the PVC inner sheath, with approximately 85% coverage specified.
Where is this cable normally used?
Indoor control, measurement and equipment connection routes in dry, damp or humid environments.
How does it differ from H05VV5-F?
This construction adds an inner sheath and copper braid screen. The related H05VV5-F construction is unscreened.
Is the braid a replacement for a protective conductor?
Specify the protective conductor arrangement independently. The braid is part of the screening system and must be terminated to the equipment design.
Which bending radii are listed?
The technical data specifies 10 times the overall diameter for flexing and 5 times the diameter when fixed.
