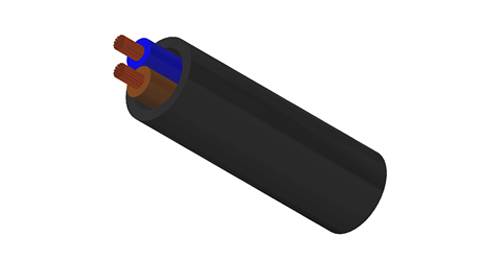

This product is a highly flexible rubber-sheathed flexible cable, specifically designed for connecting low-stress electrical equipment in dry, damp, or wet environments, both indoors and outdoors. The cable features fine oxygen-free copper wires (VDE-0295 Class-5/IEC 60228 Class-5) and high-quality rubber insulation (EI4), with an outer sheath made of weather-resistant, oil-resistant, and ozone-resistant chloroprene rubber (Neoprene). It offers excellent flexibility, bending resistance, and environmental durability.
CEI 20-19 p.4, CEI 20-35(EN 60332-1), CE low voltage directive 73/23/EEC & 93/68/EEC.,
IEC 60245-4, ROHS compliant

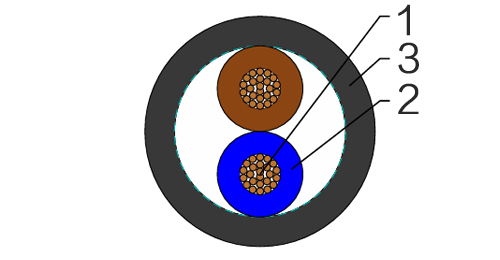

| Fine bare copper strands |
| Strands to VDE-0295 Class-5, IEC 60228 Class-5 |
| Rubber core insulation EI4 to VDE-0282 Part-1 |
| Color code VDE-0293-308 |
| Green-yellow grounding, 3 conductors and above |
| Polychloroprene rubber (neoprene) jacket EM2 |
| Working voltage | 300/500 volts |
| Test voltage | 2000 volts |
| Flexing bending radius | 7.5 x O |
| Fixed bending radius | 4.0 x O |
| Temperature Range | -30oC to +60oC |
| Short circuit temperature | +200 oC |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 20 MΩ x km |
Technical Characteristics
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | mm (min-max) | kg/km | kg/km | |
| H05RN-F | ||||||
| 18(24/32) | 2 x 0.75 | 0.6 | 0.8 | 5.7 - 7.4 | 14.4 | 80 |
| 18(24/32) | 3 x 0.75 | 0.6 | 0.9 | 6.2 - 8.1 | 21.6 | 95 |
| 18(24/32) | 4 x 0.75 | 0.6 | 0.9 | 6.8 - 8.8 | 30 | 105 |
| 17(32/32) | 2 x 1 | 0.6 | 0.9 | 6.1 - 8.0 | 19 | 95 |
| 17(32/32) | 3 x 1 | 0.6 | 0.9 | 6.5 - 8.5 | 29 | 115 |
| 17(32/32) | 4 x 1 | 0.6 | 0.9 | 7.1 – 9.2 | 38 | 142 |
| 16(30/30) | 3 x 1.5 | 0.8 | 1.0 | 8.6 - 11.0 | 29 | 105 |
| 16(30/30) | 4 x 1.5 | 0.8 | 1.1 | 9.5 - 12.2 | 39 | 129 |
| 16(30/30) | 5 x 1.5 | 0.8 | 1.1 | 10.5 - 13.5 | 48 | 153 |
| H05RNH2-F | ||||||
| 16(30/30) | 2 x 1.5 | 0.6 | 0.8 | 5.25±0.15x13.50±0.30 | 14.4 | 80 |
| 14(50/30) | 2 x 2.5 | 0.6 | 0.9 | 5.25±0.15x13.50±0.30 | 21.6 | 95 |
