APPLICATION AND DESCRIPTION

Low Voltage Power Distribution Cables are specifically designed for industrial connections, urban power grids, and building installations. This series of cables features excellent high-temperature resistance, capable of stable operation across a wide temperature range from -15°C to 90°C, and offers outstanding UV resistance, weather resistance, and chemical corrosion resistance. Suitable for outdoor overhead installation, wall mounting, cable tray, and conduit laying without the need for additional mechanical protection; they can also be directly buried (with brick or stone protection). The products comply with XP C 32-321, EN 60332-1 (C2 flame retardant), EN 50575, and CE certification standards. They feature a tinned copper conductor, XLPE insulation, and a flexible PVC outer sheath, with an operating voltage of 600/1000V. Available in a full range of specifications from single-core to multi-core models, meeting diverse industrial power distribution needs.

STANDARD AND APPROVAL

XP C 32-321 (formerly NF C 32-321)

EN 60332-1/NF C 32-070 2.1 (C2)

EN 50575 (Eca)

CE Approval

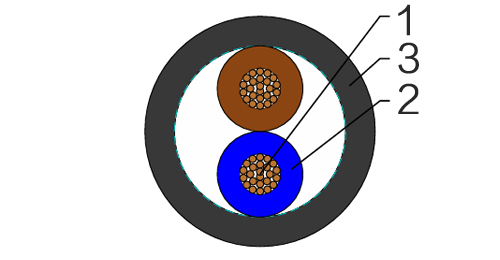

CABLE CONSTRUCTION

Flexible electrolytic annealed copper strands

Strands to IEC 60228 class 2

XLPE insulation according to XP C 32-321

Color codes to XP C32-321

Not fibrous and not hygroscopic filler (only for multicore cables)

Flexible black PVC outer jacket

TECHNICAL CHARACTERISTICS

Working Voltage : 600/1000 volts

Test voltage : 3500 volts

Minimum bending radius : 8 x Ø

Operation temperature range : -15 °C to 90 °C

Short-circuit temperature : 250 °C

Flame retardant : EN 60332-1/NF C 32-070 C2

CABLE PARAMETER
