The U-1000 RVFV armored cable is an enhanced power cable specifically designed for harsh environments, integrating both sheathing and armor into a single structure. It is suitable for direct burial without additional mechanical protection, as well as for wall mounting, installation in cable trays, or laying in conduits. In locations with explosion risks (complying with NF C 15-100 BE3 classification), it can also be used with necessary mechanical protection (in such cases, current carrying capacity must be reduced by 15%), demonstrating excellent adaptability and safety.
Applications include industrial plants, building power distribution, infrastructure, energy projects, and potentially explosive environments that require high mechanical protection and reliable power transmission.
XP C 32-322

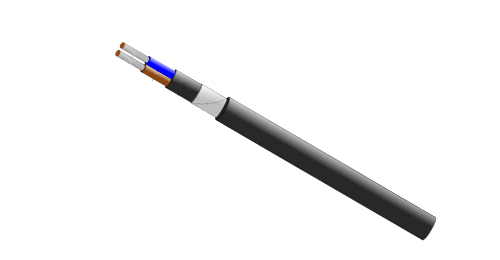

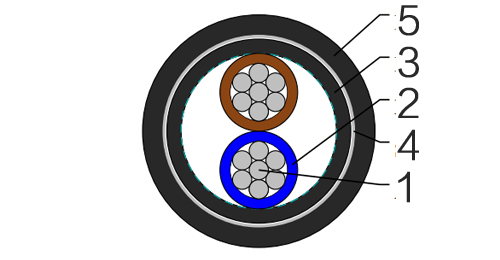

Flexible copper strands
Strands to IEC 60228 class 2
XLPE insulation according to XP C 32-321
Color codes to HD 308 S2(XP C32-321)
Not fibrous and not hygroscopic filler(only for multicore cables)
PVC inner jacket
Two steel tapes helically wraped armour
Flexible black PVC outer jacket
Working Voltage : 600/1000 volts
Test voltage : 3500 volts
Minimum bending radius : 10 x Ø
Operation temperature rage : -15 °C to 90 °C
Short-circuit temperature : 250 °C
Flame retardant : EN 60332-1/NF C 32-070 C2
| AWG | Cross Section | Insulation Thickness | Amour Thickness | Minimum Sheath Thickness | Approx. Overall Diameter | Approx. Cable Weight |
|---|---|---|---|---|---|---|
| mm² | mm | mm | mm | mm | kg/km | |
| 16 | 2x1.5 | 0.7 | 0.2 | 1.3 | 11.5 | 230 |
| 14 | 2x2.5 | 0.7 | 0.2 | 1.3 | 12.5 | 275 |
| 12 | 2x4 | 0.7 | 0.2 | 1.4 | 13.5 | 330 |
| 10 | 2x6 | 0.7 | 0.2 | 1.4 | 15.5 | 430 |
| 8 | 2x10 | 0.7 | 0.2 | 1.4 | 16.5 | 555 |
| 6 | 2x16 | 0.7 | 0.2 | 1.5 | 19 | 770 |
| 4 | 2x25 | 0.9 | 0.2 | 1.6 | 22.5 | 1080 |
| 2 | 2x35 | 0.9 | 0.2 | 1.7 | 25 | 1390 |
| 16 | 3x1.5 | 0.7 | 0.2 | 1.3 | 12 | 255 |
| 14 | 3x2.5 | 0.7 | 0.2 | 1.3 | 13 | 305 |
| 12 | 3x4 | 0.7 | 0.2 | 1.4 | 14 | 380 |
| 10 | 3x6 | 0.7 | 0.2 | 1.4 | 16 | 500 |
| 8 | 3x10 | 0.7 | 0.2 | 1.5 | 17.5 | 665 |
| 6 | 3x16 | 0.7 | 0.2 | 1.5 | 20 | 930 |
| 4 | 3x25 | 0.9 | 0.2 | 1.6 | 24 | 1325 |
| 2 | 3x35 | 0.9 | 0.2 | 1.7 | 26.5 | 1720 |
| 1 | 3x50 | 0.9 | 0.2 | 1.8 | 29 | 2125 |
| 2/0 | 3x70 | 1.1 | 0.2 | 2 | 34.5 | 3080 |
| 3/0 | 3x95 | 1.1 | 0.5 | 2.1 | 40 | 4505 |
| 4/0 | 3x120 | 1.2 | 0.5 | 2.3 | 44.5 | 5540 |
| 300MCM | 3x150 | 1.4 | 0.5 | 2.4 | 48.5 | 6655 |
| 500MCM | 3x185 | 1.6 | 0.5 | 2.5 | 53.5 | 8150 |
| 750MCM | 3x240 | 1.7 | 0.5 | 2.7 | 61 | 10575 |
| - | 3x300 | 1.8 | 0.5 | 2.9 | 66.5 | 13055 |
| 1 | 3x50+35 | 1.0/09 | 0.2 | 1.9 | 33 | 2730 |
| 2/0 | 3x70+50 | 1.1/0.9 | 0.2 | 2 | 36 | 3440 |
| 3/0 | 3x95+50 | 1.1/1.0 | 0.5 | 2.2 | 42.5 | 5080 |
| 4/0 | 3x120+70 | 1.2/1.1 | 0.5 | 2.3 | 46.5 | 6275 |
| 300MCM | 3x150+70 | 1.4/1.1 | 0.5 | 2.5 | 50 | 7340 |
| 500MCM | 3x185+70 | 1.6/1.1 | 0.5 | 2.6 | 56 | 8975 |
| 750MCM | 3x240+95 | 1.7/1.1 | 0.5 | 2.8 | 62.5 | 11435 |
| 16 | 4x1.5 | 0.7 | 0.2 | 1.3 | 13 | 290 |
| 14 | 4x2.5 | 0.7 | 0.2 | 1.4 | 14 | 355 |
| 12 | 4x4 | 0.7 | 0.2 | 1.4 | 15 | 440 |
| 10 | 4x6 | 0.7 | 0.2 | 1.4 | 17 | 585 |
| 8 | 4x10 | 0.7 | 0.2 | 1.5 | 19 | 800 |
| 6 | 4x16 | 0.7 | 0.2 | 1.6 | 22 | 1120 |
| 4 | 4x25 | 0.9 | 0.2 | 1.7 | 26 | 1650 |
| 2 | 4x35 | 0.9 | 0.2 | 1.8 | 29 | 2135 |
| 1 | 4x50 | 1 | 0.2 | 1.9 | 32.5 | 2745 |
| 2/0 | 4x70 | 1.1 | 0.5 | 2.1 | 39 | 4295 |
| 3/0 | 4x95 | 1.1 | 0.5 | 2.3 | 44.5 | 5660 |
| 4/0 | 4x120 | 1.2 | 0.5 | 2.4 | 48.5 | 6880 |
| 300MCM | 4x150 | 1.4 | 0.5 | 2.6 | 53 | 8315 |
| 500MCM | 4x185 | 1.6 | 0.5 | 2.7 | 60.5 | 10510 |
| 750MCM | 4x240 | 1.7 | 0.5 | 2.9 | 67 | 13370 |
| - | 4x300 | 1.8 | 0.5 | 3.1 | 73 | 16360 |
| 16 | 5x1.5 | 0.7 | 0.2 | 1.4 | 14 | 335 |
| 14 | 5x2.5 | 0.7 | 0.2 | 1.4 | 15 | 415 |
| 12 | 5x4 | 0.7 | 0.2 | 1.4 | 16 | 515 |
| 10 | 5x6 | 0.7 | 0.2 | 1.5 | 18.5 | 705 |
| 8 | 5x10 | 0.7 | 0.2 | 1.6 | 21 | 955 |
| 6 | 5x16 | 0.7 | 0.2 | 1.8 | 23.5 | 1340 |
| 4 | 5x25 | 0.9 | 0.2 | 1.8 | 29.5 | 2085 |
| 16 | 7x1.5 | 0.7 | 0.2 | 1.4 | 15 | 395 |
| 14 | 7x2.5 | 0.7 | 0.2 | 1.4 | 16 | 495 |
| 16 | 12x1.5 | 0.7 | 0.2 | 1.5 | 19 | 605 |
| 14 | 12x2.5 | 0.7 | 0.2 | 1.5 | 20.5 | 750 |
| 16 | 19x1.5 | 0.7 | 0.2 | 1.5 | 21.5 | 775 |
| 14 | 19x2.5 | 0.7 | 0.2 | 1.6 | 24 | 1045 |
| 16 | 24x1.5 | 0.7 | 0.2 | 1.6 | 24.5 | 980 |
| 14 | 24x2.5 | 0.7 | 0.5 | 1.7 | 29 | 1570 |
| 16 | 27x1.5 | 0.7 | 0.2 | 1.7 | 25 | 1050 |
| 14 | 27x2.5 | 0.7 | 0.2 | 1.8 | 28.5 | 1410 |
| 16 | 37x1.5 | 0.7 | 0.2 | 1.7 | 28 | 1320 |
| 14 | 37x2.5 | 0.7 | 0.2 | 1.8 | 31.5 | 1790 |
