APPLICATIONS

This composite cable integrates Cat6 data cable, coaxial cable, and power cable, featuring tinned copper braided armor and a flame-retardant, oil-resistant, and mud-resistant outer sheath. Designed for harsh marine and land industrial environments, it delivers reliable data communication, video transmission, and power supply. It is an ideal choice for applications such as oil drilling platforms, ships, and automated production lines.

STANDARDS

IEC 60092-360

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606:2016

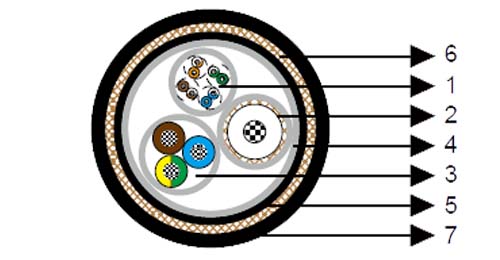

CONSTRUCTION

1) 4×2×0.57mm U/UTP Cat6 Data Cable

Conductors : Solid bare copper wire.

Insulation : PE.

Twinning : Two coloured insulated wire twisted to form a pair.

Sheath : Flame retardant LSZH, coloured grey.

2) RG59 Coaxial Cable

Conductors : 0.58mm solid bare copper wire.

Insulation : PE.

Shielding : Bare copper wire braid.

Sheath : Flame retardant LSZH, coloured grey.

3) 3×1.0mm² Power Cable

Conductors : 7/0.44mm stranded bare copper wire.

Insulation : XLPE. Coloured Blue, Brown, Green/Yellow.

Sheath : Flame retardant LSZH, coloured grey

4) Element Assembly

Filler : PP, PVC, PE or LSZH Material.

Wrapping : Polyester Tape.

Bedding : Flame retardant LSZH.

Armour : Tinned copper wire braid.

Outer Sheath : Oil & mud resistant, flame retardant LSZH, coloured grey.

DIMENSIONS

Note: Other construction can be offered opon request.
