This fire-resistant Cat5E range is intended for project specifications that call for a circuit-integrity cable construction alongside four-pair data cabling. Solid copper conductors use HDPE+SR insulation, with an overall mica-glass tape barrier and LSZH outer sheath. U/UTP, F/UTP and SF/UTP versions provide a choice of screen arrangement. The fire-performance schedule lists IEC 60331-23, with BS 6387 CWZ as an optional requirement.
ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568
| Circuit Integrity | IEC 60331-23; BS 6387 CWZ (Optional) |
|---|---|
| Flame Retardance (Single Vertical Wire or cable test) | IEC 60332-1-2; EN 60332-1-2 |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) | IEC 60332-3-24; EN 60332-3-24 |
| Halogen Free | IEC 60754-1; EN 50267-2-1 |
| No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2 |
| Minimum Smoke Emission | IEC 61034-2; EN 61034-2 |
| Conductor | 24AWG solid bare copper. |
| Insulation | HDPE+SR. |
| Twinning | Two coloured insulated conductors twisted together to form a pair. |
| Overall Fire Barrier | Mica glass tape. |
| Outer Sheath | Halogen-free flame retardant thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered). |
| Outer Sheath Option | UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option. |
| Cat5EF/UTP | These cables have collective shielding of Aluminium/polyester tape with drain wire. |
| Cat5ESF/UTP | These cables have double collective shielding of Aluminium/polyester tape & copper wire braid. |
| Temperature range | -30°C - +75°C |
| Minimum bending radius during installation (mobile state) | 8 x Overall Diameter |
| Minimum bending radius during operation (fixed state) | 4 x Overall Diameter |
| AWG | 24 | |
|---|---|---|
| Nominal Conductor Diameter | mm | 0.5/0.51/0.53 |
| Maximum DC Resistance@20°C | Ω/100m | 9.38 |
| Maximum DCR Unbalance | % | 5 |
| Maximum Mutual Capacitance | pf/m | 55.8 |
| Maximum Capacitance Unbalance | pf/100m | 330 |
| Characteristic Impedance@1-100MHz | Ω | 100±15 |
| Maximum Propagation Delay Skew | ns/100m | 45 |
| FREQ | Maximum Attenuation | Minimum NEXT | Minimum PSNEXT | Minimum ELFEXT | Minimum PSELFEXT | Minimum RL |
|---|---|---|---|---|---|---|
| MHz | dB/100m | dB | dB | dB/100m | dB/100m | dB |
| 0.772 | 1.8 | 67.0 | 64.0 | 66.0 | 63.0 | — |
| 1 | 2.0 | 65.3 | 62.3 | 63.8 | 60.8 | 20.0 |
| 4 | 4.1 | 56.3 | 53.3 | 51.7 | 48.7 | 23.0 |
| 8 | 5.8 | 51.8 | 48.8 | 45.7 | 42.7 | 24.5 |
| 10 | 6.5 | 50.3 | 47.3 | 43.8 | 40.8 | 25.0 |
| 16 | 8.2 | 47.3 | 44.3 | 39.7 | 36.7 | 25.0 |
| 20 | 9.3 | 45.8 | 42.8 | 37.7 | 34.7 | 25.0 |
| 25 | 10.4 | 44.3 | 41.3 | 35.8 | 32.8 | 24.3 |
| 31.25 | 11.7 | 42.9 | 39.9 | 33.9 | 30.9 | 23.6 |
| 62.5 | 17.0 | 38.4 | 35.4 | 27.8 | 24.8 | 21.5 |
| 100 | 22.0 | 35.3 | 32.3 | 23.8 | 20.8 | 20.1 |
| Cable Code | Conductor Diameter | Diameter Over Insulation | Pairs | Screen | Approx. Overall Diameter |
|---|---|---|---|---|---|
| mm | mm | mm | |||
| FRP-CAT5EU/UTP4P24FR | 0.50/0.51 | 1.66 | 4 | Nil | 8.0 |
| FRP-CAT5EF/UTP4P24FR | 0.53 | 1.75 | 4 | Overall Aluminum Tape Screen | 9.3 |
| FRP-CAT5ESF/UTP4P24FR | 0.53 | 1.75 | 4 | Overall Aluminum Tape Screen & Copper Wire Braid | 9.6 |

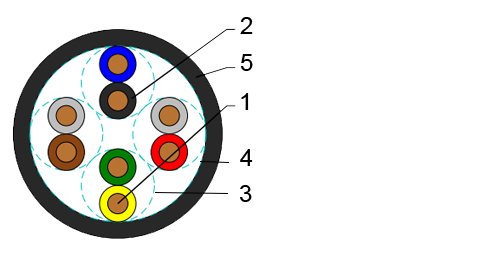

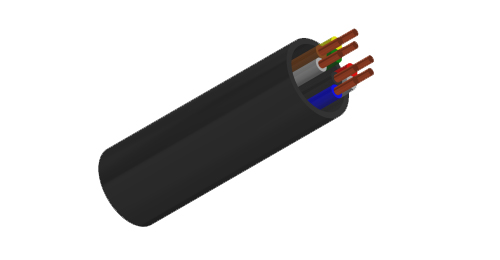

Four 24 AWG solid-copper pairs with HDPE+SR insulation.
Overall mica-glass tape fire barrier beneath the LSZH sheath.
Unshielded, foil-screened and foil-plus-braid-screened versions.
State the required circuit-integrity test, test duration and selected construction in the enquiry. Cable circuit-integrity testing does not establish the operating performance of a complete Ethernet network during fire. Select compatible terminations and supports as part of the project installation specification.
Where is the fire barrier located?
An overall mica-glass tape barrier surrounds the assembled cable core.
Is BS 6387 CWZ included on every version?
It is listed as an option and should be specified with the chosen construction.
Which outer sheath is specified?
Thermoplastic LSZH compound type LTS3 is the base sheath. Thermosetting LSZH types SW2–SW4 can be offered.
Do the three screen versions have the same diameter?
No. The listed nominal diameters are 8.0 mm for U/UTP, 9.3 mm for F/UTP and 9.6 mm for SF/UTP.
Is an armoured fire-resistant version available?
The related fire-resistant Cat5E armoured range offers CWB, SWB and SWA constructions.
