This cable model is designed for electrical systems with a rated voltage of 0.6/1kV, offering excellent fire safety characteristics. It is ideally suited for use as grounding wires and power connection cables between equipment .
IEC 60092-353
IEC 60092-359
IEC 60332-1
IEC 60332-3-22
IEC 60754-1,2
IEC 61034-1,2
NEK 606:2004
Electrical Characteristics

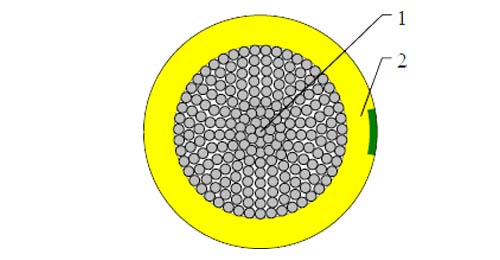

| Conductors | Tinned annealed stranded copper to IEC 60228 class 2 or class 5. |
| Insulation | Halogen free thermosetting compound, SHF2. |
| When used as protective earth (PE) wire, the cables coloured yellow/green. | |
| When used as single wire, the cables coloured off-white, black, red or blue. |
| Nominal Cross Section Area | mm^2 | 10 | 16 | 25 | 35 | 50 | 70 |
| Nominal Conductor Diameter | mm | 4 | 5.1 | 6.5 | 7.4 | 8.7 | 10.3 |
| Maximum DC Resistant@20℃ | Ω/km | 1.84 | 1.16 | 0.734 | 0.529 | 0.391 | 0.27 |
| Continuous Current Rating@45℃1 Core | A | 72 | 96 | 127 | 157 | 196 | 242 |
| Short Circuit Current 1s | A | 1430 | 2290 | 3580 | 5010 | 7150 | 10020 |
| Operating Voltage | KV | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 |
| Nominal Cross Section Area | mm^2 | 95 | 120 | 150 | 185 | 240 | 300 |
| Nominal Conductor Diameter | mm | 12.2 | 13.8 | 15.1 | 17.0 | 19.6 | 21.9 |
| Maximum DC Resistant@20℃ | Ω/km | 0.195 | 0.154 | 0.126 | 0.1 | 0.0762 | 0.0607 |
| Continuous Current Rating@45℃1 Core | A | 293 | 339 | 389 | 444 | 522 | 601 |
| Short Circuit Current 1s | A | 13590 | 17170 | 21460 | 26470 | 34340 | 42930 |
| Operating Voltage | KV | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 | 0.6/1 |
| Bending Radius | 8×OD (during installation) |
| 6×OD (fixed installed) | |
| Temperature Range | -20℃ ~ +90℃ |
| Construction No. of cores×Cross section(mm^2) | Nominal Insulation Thickness (mm) | Nominal Overall Diameter (mm) | Nominal Weight (kg/km) |
| 1×10 | 2.0 | 8.2 | 160 |
| 1×16 | 2.1 | 9.4 | 230 |
| 1×25 | 2.4 | 11.3 | 350 |
| 1×35 | 2.4 | 12.4 | 450 |
| 1×50 | 2.7 | 14.4 | 600 |
| 1×70 | 3.0 | 16.7 | 840 |
| 1×95 | 3.0 | 18.6 | 1110 |
| 1×120 | 3.1 | 20.3 | 1360 |
| 1×150 | 3.4 | 22.4 | 1660 |
| 1×185 | 3.7 | 24.9 | 2080 |
| 1×240 | 4.0 | 28.1 | 2690 |
| 1×300 | 4.3 | 31.0 | 3330 |
