P7/P14 BFOU 6/10kV Medium Voltage Power Cable: Designed for fixed installation in harsh environments such as offshore platforms and ships, it provides safe and reliable transmission for medium voltage power systems. This cable features excellent fire resistance, flame retardancy, low smoke, zero halogen, and mud resistance properties. Compliant with NEK 606 standards, it is a critical choice for ensuring power system safety.
IEC 60092-353
IEC 60092-351
IEC 60092-359
IEC 60331-21
IEC 60332-1
IEC 60332-3-22
IEC 60754-1,2
IEC 61034-1,2
NEK 606:2004
Electrical Characteristics

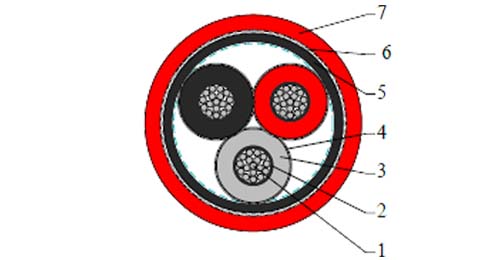

| Conductors | Circular tinned annealed stranded copper to IEC 60228 class 2. |
| Conductor Screen | Semi conducting material. |
| Insulation | Mica tape + Halogen free EPR. |
| Insulation Screen | Semi conducting material and tinned copper wire braid. |
| Bedding | Halogen free compound. |
| Armour | Tinned copper wire braid. |
| Outer Sheath | Halogen free thermosetting compound, SHF2 (for TYPE P7) |
| or halogen free mud resistant thermosetting compound, SHF MUD (for TYPE P7/P14), coloured red. |
| Nominal Cross Section Area | mm^2 | 25 | 35 | 50 | 70 | 95 | 120 | 150 |
| Nominal Conductor Diameter | mm | 6.5 | 7.4 | 8.7 | 10.3 | 12.2 | 13.8 | 15.1 |
| Maximum DC Resistant@20℃ | Ω/km | 0.734 | 0.529 | 0.391 | 0.27 | 0.195 | 0.154 | 0.126 |
| Continuous Current Rating@45℃1 Core | A | 127 | 157 | 196 | 242 | 293 | 339 | 389 |
| Continuous Current Rating@45℃3 Core | A | 89 | 110 | 137 | 169 | 205 | 237 | 272 |
| Short Circuit Current 1s | A | 3580 | 5010 | 7150 | 10020 | 13590 | 17170 | 21460 |
| Operating Voltage | KV | 6/10 | 6/10 | 6/10 | 6/10 | 6/10 | 6/10 | 6/10 |
| Nominal Cross Section Area | mm^2 | 185 | 240 | 300 | 400 | 500 | 630 |
| Nominal Conductor Diameter | mm | 17.0 | 19.6 | 21.9 | 24.5 | 27.5 | 32.3 |
| Maximum DC Resistant@20℃ | Ω/km | 0.1 | 0.0762 | 0.0607 | 0.0475 | 0.0369 | 0.0286 |
| Continuous Current Rating@45℃1 Core | A | 444 | 522 | 601 | 690 | 780 | 890 |
| Continuous Current Rating@45℃3 Core | A | 311 | 365 | 421 | 483 | 546 | 623 |
| Short Circuit Current 1s | A | 26470 | 34340 | 42930 | 57230 | 71540 | 90140 |
| Operating Voltage | KV | 6/10 | 6/10 | 6/10 | 8.7/15 | 8.7/15 | 8.7/15 |
| Ambient Temperature Correction Factors | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
| Rating Factor | 1.1 | 1.05 | 1.0 | 0.94 | 0.88 | 0.82 | 0.74 | 0.67 | 0.58 | 0.47 |
| Bending Radius | 15×OD (during installation) |
| 9×OD (fixed installed) | |
| Temperature Range | -20℃ ~ +90℃ |
