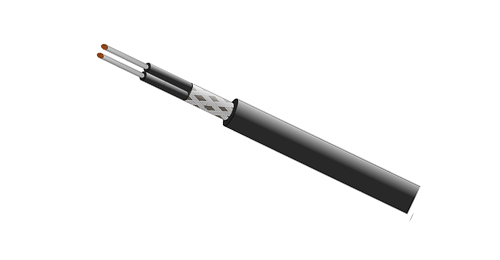

For railway vehicle RS485 data connections using a 120 ohm cable design. The FRL MVB series combines tinned copper conductors, cross-linked foam PE insulated pairs and a cross-linked EVA rubber sheath. Separate single and double screened models support different wiring and termination arrangements.
| Conductors | Stranded tin plated copper conductor according to IEC 60228 class 5(0.22mm²-1mm²). |
| Insulation | Cross linked Foam PE. |
| Cable Element | Twisted pair. |
| Individual Screen | Individual Aluminium Tape. |
| Overall Screen | Copper Wire Braid. |
| Core Wrapping | Plastic tape(s). |
| Outer Sheath | Cross linked EVA rubber type EM 104 or equivalent, in accordance with EN 50264-1. |

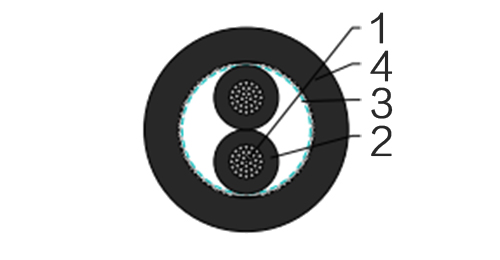

| Conductor | Stranded tin plated copper conductor according to IEC 60228 class 5(0.22mm²-1mm²). |
| Insulation | Cross linked Foam PE. |
| Cable Element | Twisted pair. |
| Overall Screen | Copper Wire Braid. |
| Outer Sheath | Cross linked EVA rubber type EM 104 or equivalent, in accordance with EN 50264-1. |
| Nominal Voltage | 300/500V |
| Impedance | 120Ω+/-15% |
| Capacitance@1KHz | 41nF/km |
| Insulation Resistance | 5000MΩ |
| EN 60684-2 | No fluorine |
| EN 50305; EN 60811-2-1 | Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 | Resistance to ozone |
| EN 50306-2 | Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | F0 |
| EN54454-2 | R15 Interior/ R16 Exterior HL1, HL2, HL3 |
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 | Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 | Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 | Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 | Smoke index |
| EN45545-2 | Requirement for fire behavior of materials & components R15/R16 |
| No.of pair x | Nominal Cross Sectional Area y | Number & Nominal Diameter of Strands | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|
| mm² | No/mm | mm | kg/km | |
| 1 | 0.22 | 7/0.2 | 4.5 | 58 |
| 2 | 0.22 | 7/0.2 | 6.2 | 79 |
| 4 | 0.22 | 7/0.2 | 6.5 | 118 |
| 1 | 0.5 | 16/0.2 | 6.6 | 79 |
| 2 | 0.5 | 16/0.2 | 9.0 | 105 |
| 4 | 0.5 | 16/0.2 | 9.8 | 145 |
| 1 | 0.75 | 24/0.2 | 9.5 | 115 |
| 2 | 0.75 | 24/0.2 | 10.3 | 135 |
| 4 | 0.75 | 24/0.2 | 11.6 | 182 |
| 1 | 1 | 30/0.2 | 11.5 | 125 |
| 2 | 1 | 30/0.2 | 12.5 | 150 |
| 4 | 1 | 30/0.2 | 13.5 | 180 |
| No.of pair x | Nominal Cross Sectional Area y | Number & Nominal Diameter of Strands | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|
| mm² | No/mm | mm | kg/km | |
| 1 | 0.22 | 7/0.2 | 4.2 | 55 |
| 2 | 0.22 | 7/0.2 | 5.9 | 75 |
| 4 | 0.22 | 7/0.2 | 6.2 | 115 |
| 1 | 0.5 | 16/0.2 | 6.3 | 75 |
| 2 | 0.5 | 16/0.2 | 8.5 | 100 |
| 4 | 0.5 | 16/0.2 | 9.4 | 140 |
| 1 | 0.75 | 24/0.2 | 9.0 | 110 |
| 2 | 0.75 | 24/0.2 | 9.7 | 130 |
| 4 | 0.75 | 24/0.2 | 11.1 | 178 |
| 1 | 1 | 30/0.2 | 11.0 | 120 |
| 2 | 1 | 30/0.2 | 12.0 | 145 |
| 4 | 1 | 30/0.2 | 13.0 | 175 |
Overall copper braid in both screening families.
Individual aluminium tape pair screens in the double screened design.
Choose the FRL model family, pair count and conductor area. Compare the matching dimensional table for cable routing space, diameter and weight.
The nominal voltage is 300/500V and the impedance is 120 ohms ±15%.
The double screened construction adds individual aluminium tape pair screens to the overall copper braid used in both designs.
Cross-linked foam PE insulation is combined with cross-linked EVA rubber type EM 104 or an equivalent sheath.
0.22, 0.5, 0.75 and 1 mm² sizes are shown, each with 1, 2 and 4 pair versions.
FRL-MVB-02Y(ST)CH-IOS-XPYS identifies the double screened family; FRL-MVB-02YCH-OS-XPYS identifies the single screened family.
