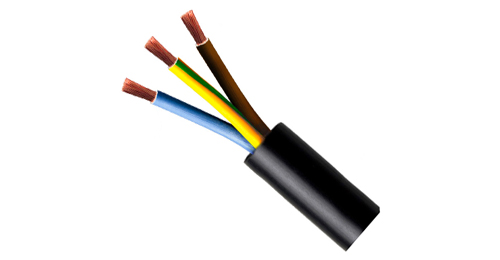

RV-K Powerflex Cable: The Ideal Choice for Widely Used Low-Voltage Industrial Connections
The RV-K Powerflex cable is a high-performance, highly flexible low-voltage power cable that complies with Spanish standards. It is extensively suitable for various low-voltage industrial connection scenarios.
UNE 21123-2
IEC 60502
IEEE 383
UNE-EN 50265-2-1
UNE-EN 60502-1
IEC 60332-1

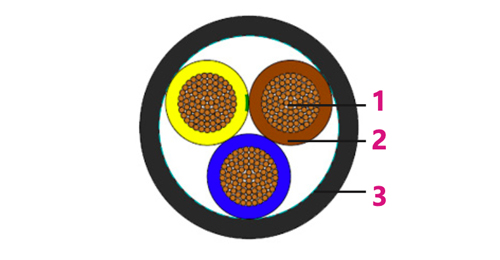

Flexible plain copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
XLPE (Cross-Linked Polyethylene) insulation to IEC60502
Color code VDE-0293-308
Flexible black PVC (Polyvinyl Chloride) jacket
| Working voltage | 600/1000 volts |
| Temperature Rating | -15°C to +90°C |
| Minimum Bending Radius | 5 x overall diameter |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 20 MΩ x km |
| AWG | No. of Cores × Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| # × mm² | mm | mm | mm | kg/km | |
| Single core | |||||
| 14(50/30) | 1 x 2.5 | 0.7 | 1.4 | 6.2 | 54 |
| 12(56/28) | 1 x 4.0 | 0.7 | 1.4 | 6.7 | 70 |
| 10(84/28) | 1 x 6.0 | 0.7 | 1.4 | 7.3 | 90 |
| 8(80/26) | 1 x 10.0 | 0.7 | 1.4 | 8.2 | 133 |
| 6(128/26) | 1 x 16.0 | 0.7 | 1.4 | 9.2 | 189 |
| 4(200/26) | 1 x 25.0 | 0.9 | 1.4 | 11 | 284 |
| 2(280/26) | 1 x 35.0 | 0.9 | 1.4 | 12.1 | 381 |
| 1(400/26) | 1 x 50.0 | 1 | 1.4 | 13.8 | 517 |
| 2/0(356/24) | 1 x 70.0 | 1.1 | 1.4 | 15.7 | 712 |
| 3/0(485/24) | 1 x 95.0 | 1.1 | 1.5 | 17.6 | 923 |
| 4/0(614/24) | 1 x 120.0 | 1.2 | 1.5 | 19.2 | 1165 |
| 300MCM | 1 x 150.0 | 1.4 | 1.6 | 21.5 | 1446 |
| 350MCM | 1 x 185.0 | 1.6 | 1.7 | 23.9 | 1748 |
| 500MCM | 1 x 240.0 | 1.7 | 1.8 | 26.9 | 2280 |
| - | 1 x 300.0 | 1.8 | 1.8 | 29.6 | 2829 |
| - | 1 x 400.0 | 2 | 2.0 | 33.8 | 3731 |
| - | 1 x 500.0 | 2.2 | 2.2 | 37.4 | 4776 |
| - | 1 x 630.0 | 2.4 | 2.4 | 42.7 | 6276 |
| Two cores | |||||
| 16(30/30) | 2 x 1.5 | 0.7 | 1.8 | 8.2 | 90 |
| 14(50/30) | 2 x 2.5 | 0.7 | 1.8 | 9.2 | 120 |
| 12(56/28) | 2 x 4.0 | 0.7 | 1.8 | 10.3 | 161 |
| 10(84/28) | 2 x 6.0 | 0.7 | 1.8 | 11.3 | 211 |
| 8(80/26) | 2 x 10.0 | 0.7 | 1.8 | 13.2 | 316 |
| 6(128/26) | 2 x 16.0 | 0.7 | 1.8 | 14.9 | 450 |
| Three cores(including ground core ) | |||||
| 16(30/30) | 3 x 1.5 | 0.7 | 1.8 | 8.9 | 108 |
| 14(50/30) | 3 x 2.5 | 0.7 | 1.8 | 9.8 | 144 |
| 12(56/28) | 3 x 4.0 | 0.7 | 1.8 | 11 | 198 |
| 10(84/28) | 3 x 6.0 | 0.7 | 1.8 | 12.1 | 263 |
| 8(80/26) | 3 x 10.0 | 0.7 | 1.8 | 14.3 | 405 |
| Three cores | |||||
| 6(128/26) | 3 x 16.0 | 0.7 | 1.8 | 16.4 | 593 |
| 4(200/26) | 3 x 25.0 | 0.9 | 1.8 | 21.3 | 975 |
| 2(280/26) | 3 x 35.0 | 0.9 | 1.8 | 24.1 | 1319 |
| 1(400/26) | 3 x 50.0 | 1 | 1.8 | 27.8 | 1812 |
| 2/0(356/24) | 3 x 70.0 | 1.1 | 1.9 | 30.8 | 2463 |
| Four cores(including ground core ) | |||||
| 16(30/30) | 4 x 1.5 | 0.7 | 1.8 | 9.7 | 129 |
| 14(50/30) | 4 x 2.5 | 0.7 | 1.8 | 10.7 | 175 |
| 12(56/28) | 4 x 4.0 | 0.7 | 1.8 | 12 | 243 |
| 10(84/28) | 4 x 6.0 | 0.7 | 1.8 | 13.4 | 328 |
| 8(80/26) | 4 x 10.0 | 0.7 | 1.8 | 15.7 | 505 |
| Four cores | |||||
| 6(128/26) | 4 x 16.0 | 0.7 | 1.8 | 18.2 | 749 |
| 4(200/26) | 4 x 25.0 | 0.9 | 1.8 | 24.1 | 1245 |
| 2(280/26) | 4 x 35.0 | 0.9 | 1.8 | 26.3 | 1671 |
| 1(400/26) | 4 x 50.0 | 1 | 1.8 | 31.3 | 2313 |
| 2/0(356/24) | 4 x 70.0 | 1.1 | 2.0 | 36.1 | 3204 |
| 3/0(485/24) | 4 x 95.0 | 1.1 | 2.2 | 40.2 | 4126 |
| 4/0(614/24) | 4 x 120.0 | 1.2 | 2.4 | 44.6 | 5245 |
| 300MCM | 4 x 150.0 | 1.4 | 2.6 | 49.8 | 6573 |
| 350MCM | 4 x 185.0 | 1.6 | 2.8 | 56.1 | 8050 |
| 500MCM | 4 x 240.0 | 1.7 | 3.0 | 64.5 | 10695 |
| Five cores(including ground core ) | |||||
| 16(30/30) | 5 x 1.5 | 0.7 | 1.8 | 10.4 | 153 |
| 14(50/30) | 5 x 2.5 | 0.7 | 1.8 | 11.6 | 213 |
| 12(56/28) | 5 x 4.0 | 0.7 | 1.8 | 13.2 | 298 |
| 10(84/28) | 5 x 6.0 | 0.7 | 1.8 | 14.7 | 403 |
| 8(80/26) | 5 x 10.0 | 0.7 | 1.8 | 17.2 | 624 |
| 6(128/26) | 5 x 16.0 | 0.7 | 1.8 | 20.2 | 931 |
| 4(200/26) | 5 x 25.0 | 0.9 | 1.8 | 25.6 | 1555 |
| 2(280/26) | 5 x 35.0 | 0.9 | 1.8 | 29.3 | 2076 |
| 1(400/26) | 5 x 50.0 | 1 | 2.0 | 34.5 | 2878 |
