NEK 606 Marine Power and Control Cable (S10 IYOI(c) 60V) is a flame-retardant, low-smoke, zero-halogen cable specifically designed for indoor communication applications. This marine cable complies with the NEK 606 standard and is suitable for power and control systems in offshore platforms and vessels with high requirements for safety and environmental protection. With excellent fire performance and environmentally friendly characteristics , it is the ideal choice for your indoor communication cables .
IEC 60092-359
IEC 60332-1
IEC 60332-3-22
IEC 60754-1,2
IEC 61034-1,2
NEK 606:2004

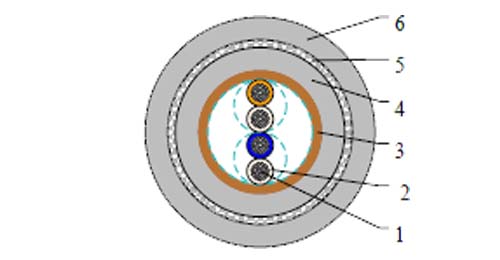

Electrical Characteristics
| Conductors | Solid tinned copper, 0.5mm. |
| Insulation | Halogen-free thermoplastic compound PE. |
| Twinning | Colour coded cores twisted together. Pairs are cross-stranded to finished cable or 10 pair units. The units are stranded to 20 - 30 - 50 pair cables. 2 pair is stranded as a star quad. |
| Wrapping | Polyester tape. |
| Collective Shielding | The cable core is screened by copper backed polyester tape in contact with a 0.5mm solid tinned drain wire. |
| Bedding | Halogen-free thermoplastic compound, type SHF1, coloured grey. |
| Armour | Copper wire braid. |
| Outer Sheath | Halogen-free thermoplastic compound, type SHF1, coloured grey. |
| Nominal Conductor Diameter | mm | 0.5 |
| Maximum Resistant@20℃ | Ω/km | 95 |
| Nominal Inductance@1KHz | MH/km | 0.61 |
| Mutual Capacitance 1-pair cable | nF/km | 90 |
| Mutual Capacitance 2-pair cable | nF/km | 80 |
| Mutual Capacitance 4-pair and above cable | nF/km | 70 |
| Operating Voltage | V | 60 |
| Bending Radius | 8×OD (during installation) |
| 6×OD (fixed installed) | |
| Temperature Range | -10℃ ~ +60℃ |
| Construction No. of elements×No. of cores in element×Cross section (mm^2) | Nominal Insulation Thickness (mm) | Nominal Sheath Thickness (mm) | Nominal Overall Diameter (mm) | Nominal Weight (kg/km) | |
| Inner | Outer | ||||
| 1×2×0.5 | 0.2 | 1.2 | 1.2 | 8.0 | 95 |
| 2×2×0.5 | 0.2 | 1.2 | 1.2 | 9.0 | 110 |
| 4×2×0.5 | 0.2 | 1.2 | 1.2 | 10.0 | 145 |
| 10×2×0.5 | 0.2 | 1.5 | 1.5 | 12.0 | 200 |
| 20×2×0.5 | 0.2 | 1.5 | 1.5 | 15.0 | 330 |
| 30×2×0.5 | 0.2 | 1.5 | 1.5 | 17.0 | 430 |
| 50×2×0.5 | 0.2 | 1.5 | 1.5 | 20.0 | 580 |
