S2 or S2/S6 RFOU(c) 250V
APPLICATIONSS2 or S2/S6 RFOU(c) 250V Cable is a high-performance marine cable compliant with the NEK 606 standard. This power and control cable features outstanding characteristics such as flame retardancy, low smoke emission, halogen-free composition…
53 S2 or S2 S6 RFOU(c) 250V.pdf Contact us
Previous: S1 or S1/S5 RFOU(i) 250VNext: P16 IFLI 250 V

APPLICATIONS

S2 or S2/S6 RFOU(c) 250V Cable is a high-performance marine cable compliant with the NEK 606 standard. This power and control cable features outstanding characteristics such as flame retardancy, low smoke emission, halogen-free composition, and mud resistance . It is widely used in instrumentation, communication, control, and alarm systems within offshore engineering applications, making it an ideal choice for demanding environments such as offshore platforms and vessels.

STANDARDS

  • IEC 60092-353

  • IEC 60092-351

  • IEC 60092-359

  • IEC 60332-1

  • IEC 60332-3-22

  • IEC 60754-1,2

  • IEC 61034-1,2

  • NEK 606:2004

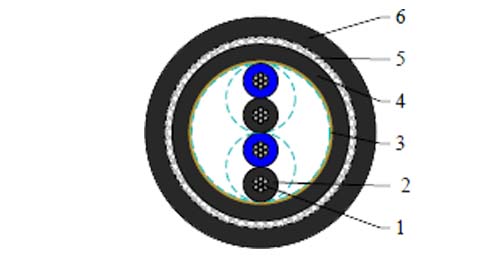

CONSTRUCTION

Electrical Characteristics

ConductorsCircular tinned annealed stranded copper wire to IEC 60228 class 2.
InsulationHalogen free EPR compound.
TwinningColour coded cores twisted together.
Individual ShieldingPairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire.

Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
BeddingHalogen free compound.
ArmourTinned copper wire braid.
Outer SheathHalogen free thermosetting compound, SHF2 (for TYPE S2).

Halogen free MUD resistant thermosetting compound, SHF MUD (for TYPE S2/S6), coloured grey (blue for intrinsically safe).



Nominal Cross Section Areamm^20.751.01.52.5
Nominal Conductor Diametermm1.11.31.62.0
Maximum Resistant@20℃Ω/km26.319.312.98.02
Mutual CapacitancenF/km8090100110
Nominal Inductance@1KHzMH/km0.6820.6450.6320.593
Maximum L/R@1KHzμH/Ω20253550
Operating VoltageV250250250250

MECHANICAL AND THERMAL PROPERTIES

Bending Radius8×OD (during installation)

6×OD (fixed installed)
Temperature Range-20℃ ~ +90℃

DIMENSIONS AND WEIGHT

Construction No. of elements×No. of cores in element×Cross section(mm^2)Nominal Insulation Thickness (mm)Nominal Sheath Thickness (mm)Nominal Overall Diameter (mm)Nominal Weight (kg/km)
InnerOuter
1×2×0.750.61.11.111.1200
2×2×0.750.61.11.315.0295
3×2×0.750.61.11.315.6355
4×2×0.750.61.11.316.4390
5×2×0.750.61.11.417.8540
6×2×0.750.61.11.419.1610
7×2×0.750.61.11.419.1625
8×2×0.750.61.11.520.7680
9×2×0.750.61.11.521.8745
10×2×0.750.61.11.622.9760
12×2×0.750.61.11.623.4810
14×2×0.750.61.11.624.5875
15×2×0.750.61.11.726.1960
16×2×0.750.61.11.726.51010
18×2×0.750.61.11.827.91080
19×2×0.750.61.11.828.21115
20×2×0.750.61.11.829.21210
21×2×0.750.61.11.830.01255
23×2×0.750.61.11.930.61355
24×2×0.750.61.11.931.91370
27×2×0.750.61.21.932.91480
30×2×0.750.61.22.034.11605
33×2×0.750.61.22.035.31725
37×2×0.750.61.22.136.91950
1×3×0.750.61.11.211.7230
2×3×0.750.61.11.314.5360
3×3×0.750.61.11.316.2415
4×3×0.750.61.11.417.6540
5×3×0.750.61.11.419.1645
6×3×0.750.61.11.521.1755
7×3×0.750.61.11.521.1780
8×3×0.750.61.11.622.6845
9×3×0.750.61.11.623.9945
10×3×0.750.61.11.725.7960
12×3×0.750.61.11.726.41080
14×3×0.750.61.11.727.51150
15×3×0.750.61.11.828.51230
16×3×0.750.61.11.829.21310
18×3×0.750.61.11.930.71405
19×3×0.750.61.11.931.01475
20×3×0.750.61.11.931.81560
21×3×0.750.61.21.932.71640
23×3×0.750.61.22.034.11795
24×3×0.750.61.22.034.61830
27×3×0.750.61.22.136.82040
30×3×0.750.61.22.138.3.2210
32×3×0.750.61.22.239.52345
1×2×1.00.61.11.211.7225
2×2×1.00.61.11.313.4335
3×2×1.00.61.11.316.3470
4×2×1.00.61.11.417.4535
5×2×1.00.61.11.418.7610
6×2×1.00.61.11.520.2700
7×2×1.00.61.11.520.2720
8×2×1.00.61.11.521.8775
9×2×1.00.61.11.623.2850
10×2×1.00.61.11.624.1880
12×2×1.00.61.11.624.7980
14×2×1.00.61.11.726.01030
15×2×1.00.61.11.827.81125
16×2×1.00.61.11.828.21175
18×2×1.00.61.11.829.51255
19×2×1.00.61.11.829.81295
20×2×1.00.61.11.931.11420
21×2×1.00.61.11.931.91475
23×2×1.00.61.21.932.71610
24×2×1.00.61.22.034.31620
27×2×1.00.61.22.035.01745
30×2×1.00.61.22.136.71980
33×2×1.00.61.22.138.02130
37×2×1.00.61.22.239.32305
1×3×1.00.61.11.212.0250
2×3×1.00.61.11.417.0520
3×3×1.00.61.11.417.4540
4×3×1.00.61.11.418.7625
5×3×1.00.61.11.520.2745
6×3×1.00.61.11.622.4875
7×3×1.00.61.11.622.4905
8×3×1.00.61.11.623.8980
9×3×1.00.61.11.725.41080
10×3×1.00.61.11.727.11150
12×3×1.00.61.11.828.11265
14×3×1.00.61.11.829.21355
15×3×1.00.61.11.830.11440
16×3×1.00.61.11.931.11570
18×3×1.00.61.21.932.81675
19×3×1.00.61.22.033.31750
20×3×1.00.61.22.034.11880
21×3×1.00.61.22.034.81950
23×3×1.00.61.22.136.62215
24×3×1.00.61.22.137.32200
27×3×1.00.61.22.239.22425
30×3×1.00.61.22.240.82630
32×3×1.00.61.22.342.12790
1×2×1.50.71.11.212.7260
2×2×1.50.71.11.415.4420
3×2×1.50.71.11.417.6585
4×2×1.50.71.11.418.8635
5×2×1.50.71.11.521.1770
6×2×1.50.71.11.622.8890
7×2×1.50.71.11.622.8925
8×2×1.50.71.11.623.7975
9×2×1.50.71.11.726.31060
10×2×1.50.71.11.727.41130
12×2×1.50.71.11.828.31270
14×2×1.50.71.11.829.51325
15×2×1.50.71.11.931.61445
16×2×1.50.71.11.932.11575
18×2×1.50.71.22.034.21670
19×2×1.50.71.22.034.51765
20×2×1.50.71.22.136.01895
21×2×1.50.71.22.137.32050
23×2×1.50.71.22.137.92185
24×2×1.50.71.22.239.82200
27×2×1.50.71.22.240.62390
30×2×1.50.71.22.342.12600
33×2×1.50.71.22.343.62805
37×2×1.50.71.42.445.43080
1×3×1.50.71.11.213.2295
2×3×1.50.71.11.417.0490
3×3×1.50.71.11.519.5685
4×3×1.50.71.11.520.9785
5×3×1.50.71.11.621.0820
6×3×1.50.71.11.722.8960
7×3×1.50.71.11.725.11135
8×3×1.50.71.11.727.01270
9×3×1.50.71.11.828.91445
10×3×1.50.71.11.931.11450
12×3×1.50.71.11.931.51710
14×3×1.50.71.22.033.81815
15×3×1.50.71.22.034.81930
16×3×1.50.71.22.136.02110
18×3×1.50.71.22.138.12305
19×3×1.50.71.22.238.62375
20×3×1.50.71.22.239.62580
21×3×1.50.71.22.240.42680
23×3×1.50.71.22.342.02925
24×3×1.50.71.22.342.73140
27×3×1.50.71.42.445.33250
30×3×1.50.71.42.547.43555
32×3×1.50.71.42.548.63745
1×2×2.50.71.11.213.5300
2×2×2.50.71.11.418.9650
3×2×2.50.71.11.519.9720
4×2×2.50.71.11.521.1820
5×2×2.50.71.11.623.0965
6×2×2.50.71.11.624.81105
7×2×2.50.71.11.624.81150
8×2×2.50.71.11.727.01255
9×2×2.50.71.11.828.81385
10×2×2.50.71.11.830.01430
12×2×2.50.71.31.931.01545
14×2×2.50.71.21.932.71730
15×2×2.50.71.22.035.01885
16×2×2.50.71.22.035.61970
18×2×2.50.71.22.137.92235
19×2×2.50.71.22.138.32315
20×2×2.50.71.22.239.92530
21×2×2.50.71.22.241.02630
23×2×2.50.71.22.341.82750
24×2×2.50.71.22.343.72850
27×2×2.50.71.42.445.13150
30×2×2.50.71.42.546.83435
33×2×2.50.71.42.548.53715
37×2×2.50.71.42.650.24040
1×3×2.50.71.11.314.3360
2×3×2.50.71.11.520.5785
3×3×2.50.71.11.521.2875
4×3×2.50.71.11.622.91035
5×3×2.50.71.11.624.81205
6×3×2.50.71.11.827.81430
7×3×2.50.71.11.827.81505
8×3×2.50.71.11.829.61625
9×3×2.50.71.11.931.71855
10×3×2.50.71.22.034.41890
12×3×2.50.71.22.035.52110
14×3×2.50.71.22.137.62445
15×3×2.50.71.22.238.92620
16×3×2.50.71.22.240.02755
18×3×2.50.71.22.342.03010
19×3×2.50.71.22.342.43125
20×3×2.50.71.22.343.53360
21×3×2.50.71.42.444.93555
23×3×2.50.71.42.546.73885
24×3×2.50.71.42.547.53870
27×3×2.50.71.42.650.04280
30×3×2.50.71.42.752.34695
32×3×2.50.71.42.753.84960
