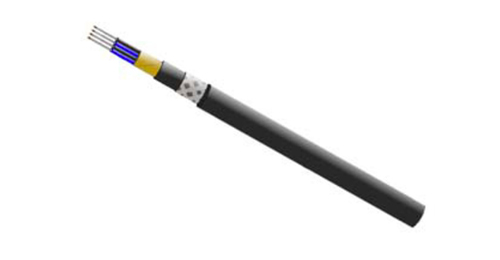

S4 or S4/S8 BFOU(c) 250V
APPLICATIONSThe S3/S7 BFOU(i) 250V cable by Bury Cable is a power and control cable specifically designed for offshore platforms, drilling vessels, and other marine facilities. In safety-critical environments, it ensures uninterrupted power and signal…
73 S3 or S3 S7 BFOU(i) 250V.pdf Contact us
Previous: S3 or S3/S7 BFOU(i) 250VNext: S13 BU(i) 250 V

APPLICATIONS

The S3/S7 BFOU(i) 250V cable by Bury Cable is a power and control cable specifically designed for offshore platforms, drilling vessels, and other marine facilities. In safety-critical environments, it ensures uninterrupted power and signal transmission for essential systems through outstanding fire-resistant , flame-retardant , and low-smoke zero-halogen properties, providing maximum protection for personnel and assets.

STANDARDS

  • IEC 60092-353

  • IEC 60092-351

  • IEC 60092-359

  • IEC 60331-21

  • IEC 60332-1

  • IEC 60332-3-22

  • IEC 60754-1,2

  • IEC 61034-1,2

  • NEK 606:2004

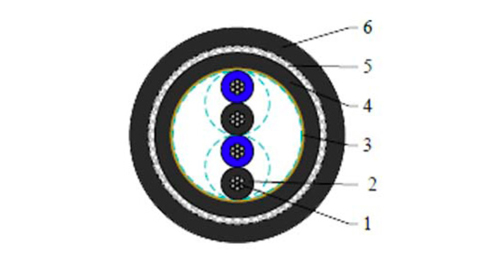

CONSTRUCTION

Electrical Characteristics

ConductorsCircular tinned annealed stranded copper wire to IEC 60228 class 2.
InsulationMica tape + Halogen free EPR compound.
TwinningColour coded cores twisted together.
Collective ShieldingPairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire.

Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
BeddingHalogen free compound.
ArmourTinned copper wire braid.
Outer SheathHalogen free thermosetting compound, SHF2 (for TYPE S4).

Halogen free MUD resistant thermosetting compound, SHF MUD (for TYPE S4/S8), coloured grey (blue for intrinsically safe).



Nominal Cross Section Areamm^20.751.01.52.5
Nominal Conductor Diametermm1.11.31.62.0
Maximum Resistant@20℃Ω/km26.319.312.98.02
Mutual CapacitancenF/km75808595
Nominal Inductance@1KHzMH/km0.7270.6860.6670.623
Maximum L/R@1KHzμH/Ω20253555
Operating VoltageV250250250250

MECHANICAL AND THERMAL PROPERTIES

Bending Radius8×OD (during installation)

6×OD (fixed installed)
Temperature Range-20℃ ~ +90℃

DIMENSIONS AND WEIGHT

Construction No. of elements×No. of cores in element×Cross section(mm^2)Nominal Insulation Thickness (mm)Nominal Sheath Thickness (mm)Nominal Overall Diameter (mm)Nominal Weight (kg/km)
InnerOuter
1×2×0.750.61.11.212.1230
2×2×0.750.61.11.316.4340
3×2×0.750.61.11.417.2495
4×2×0.750.61.11.418.2555
5×2×0.750.61.11.519.8640
6×2×0.750.61.11.521.2725
7×2×0.750.61.11.521.2740
8×2×0.750.61.11.623.1805
9×2×0.750.61.11.624.3880
10×2×0.750.61.11.725.6900
12×2×0.750.61.11.726.2950
14×2×0.750.61.11.727.31035
15×2×0.750.61.11.829.21130
16×2×0.750.61.11.829.71175
18×2×0.750.61.11.931.31275
19×2×0.750.61.11.931.61315
20×2×0.750.61.22.033.31475
21×2×0.750.61.22.034.11530
23×2×0.750.61.22.034.61635
24×2×0.750.61.22.136.81730
27×2×0.750.61.22.137.51850
30×2×0.750.61.22.238.91965
33×2×0.750.61.22.240.32155
37×2×0.750.61.22.341.72325
1×3×0.750.61.11.212.6255
2×3×0.750.61.11.417.7545
3×3×0.750.61.11.418.3585
4×3×0.750.61.11.519.7670
5×3×0.750.61.11.521.2770
6×3×0.750.61.11.623.5900
7×3×0.750.61.11.623.5935
8×3×0.750.61.11.725.21015
9×3×0.750.61.11.726.71135
10×3×0.750.61.11.828.71140
12×3×0.750.61.11.829.61230
14×3×0.750.61.11.931.01375
15×3×0.750.61.11.931.91455
16×3×0.750.61.22.033.31545
18×3×0.750.61.22.034.81690
19×3×0.750.61.22.035.11750
20×3×0.750.61.22.136.61985
21×3×0.750.61.22.137.32055
23×3×0.750.61.22.238.82215
24×3×0.750.61.22.239.52245
27×3×0.750.61.22.341.52435
30×3×0.750.61.22.343.32645
32×3×0.750.61.42.444.92840
1×2×1.00.61.11.212.5245
2×2×1.00.61.11.417.2375
3×2×1.00.61.11.417.9550
4×2×1.00.61.11.419.0615
5×2×1.00.61.11.520.6710
6×2×1.00.61.11.622.4820
7×2×1.00.61.11.622.4845
8×2×1.00.61.11.624.1905
9×2×1.00.61.11.725.7995
10×2×1.00.61.11.726.81035
12×2×1.00.61.11.727.41095
14×2×1.00.61.11.828.91195
15×2×1.00.61.11.930.91305
16×2×1.00.61.11.931.41355
18×2×1.00.61.22.033.41500
19×2×1.00.61.22.033.71550
20×2×1.00.61.22.035.01685
21×2×1.00.61.22.136.51850
23×2×1.00.61.22.137.01975
24×2×1.00.61.22.238.91990
27×2×1.00.61.22.239.62135
30×2×1.00.61.22.240.92300
33×2×1.00.61.22.342.52495
37×2×1.00.61.42.444.32735
1×3×1.00.61.11.213.0280
2×3×1.00.61.11.418.0550
3×3×1.00.61.11.418.7600
4×3×1.00.61.11.520.0690
5×3×1.00.61.11.622.4880
6×3×1.00.61.11.624.61020
7×3×1.00.61.11.624.61060
8×3×1.00.61.11.726.41150
9×3×1.00.61.11.828.21305
10×3×1.00.61.11.830.21290
12×3×1.00.61.11.931.31435
14×3×1.00.61.21.932.91605
15×3×1.00.61.22.034.01720
16×3×1.00.61.22.035.01765
18×3×1.00.61.22.137.22050
19×3×1.00.61.22.137.52120
20×3×1.00.61.22.238.72300
21×3×1.00.61.22.239.42380
23×3×1.00.61.22.240.82515
24×3×1.00.61.22.341.72575
27×3×1.00.61.22.343.72815
30×3×1.00.61.42.446.13125
32×3×1.00.61.42.547.53310
1×2×1.50.71.11.314.3335
2×2×1.50.71.11.520.5740
3×2×1.50.71.11.521.2805
4×2×1.50.71.11.622.9945
5×2×1.50.71.11.624.81095
6×2×1.50.71.11.827.81300
7×2×1.50.71.11.827.81355
8×2×1.50.71.11.829.61455
9×2×1.50.71.11.931.71660
10×2×1.50.71.12.034.41680
12×2×1.50.71.12.035.51855
14×2×1.50.71.22.137.62150
15×2×1.50.71.22.238.92300
16×2×1.50.71.22.240.02415
18×2×1.50.71.22.342.02630
19×2×1.50.71.22.342.42725
20×2×1.50.71.22.343.52940
21×2×1.50.71.22.444.93110
23×2×1.50.71.22.546.73400
24×2×1.50.71.22.547.53360
27×2×1.50.71.42.650.03710
30×2×1.50.71.42.752.34060
32×2×1.50.71.42.753.84285
33×2×1.50.71.42.548.53245
37×2×1.50.71.42.650.23515
1×3×1.50.71.11.314.3335
2×3×1.50.71.11.520.5740
3×3×1.50.71.11.521.2805
4×3×1.50.71.11.622.9945
5×3×1.50.71.11.624.81095
6×3×1.50.71.11.827.81300
7×3×1.50.71.11.827.81355
8×3×1.50.71.11.829.61455
9×3×1.50.71.11.931.71660
10×3×1.50.71.22.034.41680
12×3×1.50.71.22.035.51855
14×3×1.50.71.22.137.62150
15×3×1.50.71.22.238.92300
16×3×1.50.71.22.240.02405
18×3×1.50.71.22.342.02630
19×3×1.50.71.22.342.42710
20×3×1.50.71.22.343.52940
21×3×1.50.71.42.444.93110
23×3×1.50.71.42.546.73400
24×3×1.50.71.42.547.53430
27×3×1.50.71.42.650.03710
30×3×1.50.71.42.752.34060
32×3×1.50.71.42.753.84285
1×2×2.50.71.11.314.5335
2×2×2.50.71.11.520.4740
3×2×2.50.71.11.521.3800
4×2×2.50.71.11.622.8930
5×2×2.50.71.11.624.71075
6×2×2.50.71.11.726.91245
7×2×2.50.71.11.726.91290
8×2×2.50.71.11.829.31405
9×2×2.50.71.11.931.31585
10×2×2.50.71.22.033.21605
12×2×2.50.71.22.034.01745
14×2×2.50.71.22.035.61920
15×2×2.50.71.22.238.82205
16×2×2.50.71.22.239.42230
18×2×2.50.71.22.341.52500
19×2×2.50.71.22.341.92590
20×2×2.50.71.22.343.52815
21×2×2.50.71.42.445.22990
23×2×2.50.71.42.445.83215
24×2×2.50.71.42.548.23270
27×2×2.50.71.42.649.43515
30×2×2.50.71.42.651.03810
33×2×2.50.71.42.753.14145
37×2×2.50.71.42.854.94500
1×3×2.50.71.11.315.1385
2×3×2.50.71.11.522.0880
3×3×2.50.71.11.623.0990
4×3×2.50.71.11.624.61150
5×3×2.50.71.11.726.91350
6×3×2.50.71.11.830.01595
7×3×2.50.71.11.830.01670
8×3×2.50.71.11.932.21820
9×3×2.50.71.22.034.82105
10×3×2.50.71.22.137.92190
12×3×2.50.71.22.239.22455
14×3×2.50.71.22.240.92715
15×3×2.50.71.22.342.32905
16×3×2.50.71.22.343.53060
18×3×2.50.71.42.446.13380
19×3×2.50.71.42.546.73530
20×3×2.50.71.42.547.93800
21×3×2.50.71.42.548.93950
23×3×2.50.71.42.650.94290
24×3×2.50.71.42.651.84325
27×3×2.50.71.42.754.54745
30×3×2.50.71.62.957.75300
32×3×2.50.71.62.959.35595
