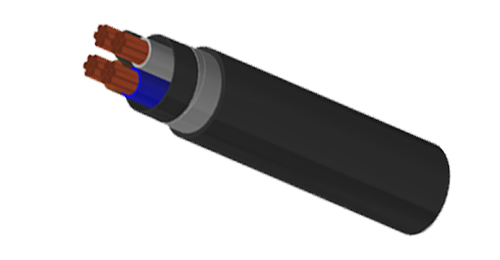

XAV/H1XAV Industrial Cable features a robust armored structure, enabling direct burial without the need for additional mechanical protection, thereby reducing installation costs. It is also suitable for various installation methods such as wall fixation , cable trays , and conduits . This cable is particularly well-suited for power transmission and control systems in industrial plants, construction sites, and infrastructure projects. In special locations with potential explosion risks, it can also be safely used after adding additional mechanical protection measures (note: a 15% strength reduction should be considered) to ensure operational safety.
IEC60502-1
NP2365

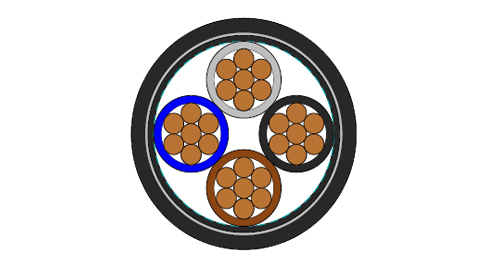

Flexible copper strands
Strands to NP 2363, ≤4mm²,class 1, ≥6mm²,class 2
XLPE insulation according to NF C 32-321
Color coded to HD 308
Not fibrous and not hygroscopic filler(optional)
PVC inner jacket
Two steel tapes helically wraped armour
Flexible PVC outer jacket
| Working Voltage | 600/1000 volts |
| Test voltage | 3500 volts |
| Minimum bending radius | 6 x Ø |
| Operation temperature range | -10°C to 60°C |
| Short-circuit temperature | 250°C |
| Flame retardant | IEC 60332-1/NF C 32-070 C2 |
| Insulation resistance | 1000 MΩ x km |
| Cross Section | Insulation thickness | Amour thickness | Minimum Sheath thickness | Maximum Overall diameter | Approx Cable weight |
|---|---|---|---|---|---|
| mm² | mm | mm | mm | mm | kg/km |
| 2x 1.5 | 0.7 | 0.2 | 1.3 | 11.5 | 230 |
| 2x 2.5 | 0.7 | 0.2 | 1.3 | 12.5 | 275 |
| 2x 4 | 0.7 | 0.2 | 1.4 | 13.5 | 330 |
| 2x 6 | 0.7 | 0.2 | 1.4 | 15.5 | 430 |
| 2x 10 | 0.7 | 0.2 | 1.4 | 16.5 | 555 |
| 2x 16 | 0.7 | 0.2 | 1.5 | 19 | 770 |
| 2x 25 | 0.9 | 0.2 | 1.6 | 22.5 | 1080 |
| 2x 35 | 0.9 | 0.2 | 1.7 | 25 | 1390 |
| 3x 1.5 | 0.7 | 0.2 | 1.3 | 12 | 255 |
| 3x 2.5 | 0.7 | 0.2 | 1.3 | 13 | 305 |
| 3x 4 | 0.7 | 0.2 | 1.4 | 14 | 380 |
| 3x 6 | 0.7 | 0.2 | 1.4 | 16 | 500 |
| 3x 10 | 0.7 | 0.2 | 1.5 | 17.5 | 665 |
| 3x 16 | 0.7 | 0.2 | 1.5 | 20 | 930 |
| 3x 25 | 0.9 | 0.2 | 1.6 | 24 | 1325 |
| 3x 35 | 0.9 | 0.2 | 1.7 | 26.5 | 1720 |
| 3x 50 | 0.9 | 0.2 | 1.8 | 29 | 2125 |
| 3x 70 | 1.1 | 0.2 | 2 | 34.5 | 3080 |
| 3x 95 | 1.1 | 0.5 | 2.1 | 40 | 4505 |
| 3x 120 | 1.2 | 0.5 | 2.3 | 44.5 | 5540 |
| 3x 150 | 1.4 | 0.5 | 2.4 | 48.5 | 6655 |
| 3x 185 | 1.6 | 0.5 | 2.5 | 53.5 | 8150 |
| 3x 240 | 1.7 | 0.5 | 2.7 | 61 | 10575 |
| 3x 300 | 1.8 | 0.5 | 2.9 | 66.5 | 13055 |
| 3x 50+35 | 1.0/09 | 0.2 | 1.9 | 33 | 2730 |
| 3x 70+50 | 1.1/0.9 | 0.2 | 2 | 36 | 3440 |
| 3x 95+50 | 1.1/1.0 | 0.5 | 2.2 | 42.5 | 5080 |
| 3x 120+70 | 1.2/1.1 | 0.5 | 2.3 | 46.5 | 6275 |
| 3x 150+70 | 1.4/1.1 | 0.5 | 2.5 | 50 | 7340 |
| 3x 185+70 | 1.6/1.1 | 0.5 | 2.6 | 56 | 8975 |
| 3x 240+95 | 1.7/1.1 | 0.5 | 2.8 | 62.5 | 11435 |
| 4x 1.5 | 0.7 | 0.2 | 1.3 | 13 | 290 |
| 4x 2.5 | 0.7 | 0.2 | 1.4 | 14 | 355 |
| 4x 4 | 0.7 | 0.2 | 1.4 | 15 | 440 |
| 4x 6 | 0.7 | 0.2 | 1.4 | 17 | 585 |
| 4x 10 | 0.7 | 0.2 | 1.5 | 19 | 800 |
| 4x 16 | 0.7 | 0.2 | 1.6 | 22 | 1120 |
| 4x 25 | 0.9 | 0.2 | 1.7 | 26 | 1650 |
| 4x 35 | 0.9 | 0.2 | 1.8 | 29 | 2135 |
| 4x 50 | 1 | 0.2 | 1.9 | 32.5 | 2745 |
| 4x 70 | 1.1 | 0.5 | 2.1 | 39 | 4295 |
| 4x 95 | 1.1 | 0.5 | 2.3 | 44.5 | 5660 |
| 4x 120 | 1.2 | 0.5 | 2.4 | 48.5 | 6880 |
| 4x 150 | 1.4 | 0.5 | 2.6 | 53 | 8315 |
| 4x 185 | 1.6 | 0.5 | 2.7 | 60.5 | 10510 |
| 4x 240 | 1.7 | 0.5 | 2.9 | 67 | 13370 |
| 4x 300 | 1.8 | 0.5 | 3.1 | 73 | 16360 |
| 5x 1.5 | 0.7 | 0.2 | 1.4 | 14 | 335 |
| 5x 2.5 | 0.7 | 0.2 | 1.4 | 15 | 415 |
| 5x 4 | 0.7 | 0.2 | 1.4 | 16 | 515 |
| 5x 6 | 0.7 | 0.2 | 1.5 | 18.5 | 705 |
| 5x 10 | 0.7 | 0.2 | 1.6 | 21 | 955 |
| 5x 16 | 0.7 | 0.2 | 1.8 | 23.5 | 1340 |
| 5x 25 | 0.9 | 0.2 | 1.8 | 29.5 | 2085 |
| 7x 1.5 | 0.7 | 0.2 | 1.4 | 15 | 395 |
| 7x 2.5 | 0.7 | 0.2 | 1.4 | 16 | 495 |
| 12x 1.5 | 0.7 | 0.2 | 1.5 | 19 | 605 |
| 12x 2.5 | 0.7 | 0.2 | 1.5 | 20.5 | 750 |
| 19x 1.5 | 0.7 | 0.2 | 1.5 | 21.5 | 775 |
| 19x 2.5 | 0.7 | 0.2 | 1.6 | 24 | 1045 |
| 24x 1.5 | 0.7 | 0.2 | 1.6 | 24.5 | 980 |
| 24x 2.5 | 0.7 | 0.5 | 1.7 | 29 | 1570 |
| 27x 1.5 | 0.7 | 0.2 | 1.7 | 25 | 1050 |
| 27x 2.5 | 0.7 | 0.2 | 1.8 | 28.5 | 1410 |
| 37x 1.5 | 0.7 | 0.2 | 1.7 | 28 | 1320 |
| 37x 2.5 | 0.7 | 0.2 | 1.8 | 31.5 | 1790 |
