This product is a high-performance composite cable specifically designed for rail transit and demanding industrial environments. It integrates coaxial, shielded twisted pair, and single-core cables into one unified structure, meeting complex signal and power transmission requirements. The cable utilizes halogen-free, low-smoke, flame-retardant materials (LSFROH sheath) and complies with rail transit fire safety standards such as EN 45545, DIN 5510-2, and BS 6853. It features low toxicity, low corrosivity, and excellent flame-retardant properties, ensuring safety and reliability in the event of a fire.

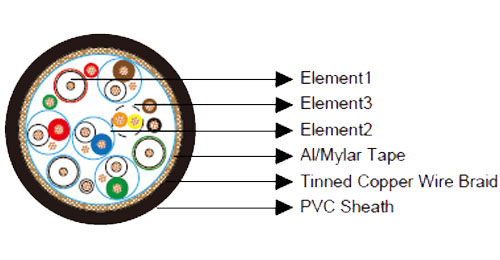

The cable structure includes 3 coaxial units (75Ω), 4 pairs of shielded twisted pairs (100Ω ±15Ω), and a combination of 1-core and 5-core single wires. All conductors are made of tinned copper strands, with insulation layers consisting of foamed PE with skin or high-density PE. It incorporates multiple shielding designs, such as aluminum foil mylar tape shielding and an overall tinned copper braided shield, effectively resisting electromagnetic interference. The overall outer sheath is flexible and wear-resistant, with an operating temperature range of -25°C to +80°C and a minimum bending radius of 3 times the outer diameter. It is suitable for stable connections within train compartments, including control systems, broadcast communications, sensor networks, and onboard electronic equipment.
This cable is widely applicable for internal wiring in rail vehicles such as locomotives, subways, and trams, as well as in industrial automation, stage audio, and broadcast systems requiring high shielding and fire resistance. Its compact structure and reliable performance help customers enhance system anti-interference capabilities and meet stringent international safety certification requirements.
| CONDUCTOR | Stranded annealed tinned copper wire, 30AWG(7/38AWG) |
|---|---|
| INSULATION | Foam PE+Skin. Thickness 0.505mm. Outer diameter 1.3+0.07mm |
| SHIELD | Tinned copper braid, 0.1mm, 90% coverage |
| SHEATH | PVC, Thickness 0.219mm. Outer diameter 2.15mm |
| SHEATH COLOR | Green/Blue/Red |
| CONDUCTOR | Stranded annealed tinned copper wire, 7/36AWG |
|---|---|
| INSULATION | Foam PE+Skin. Thickness 0.25mm. Outer diameter 0.98+0.05mm |
| INSULATION COLOR | Yellow and orange |
| INDIVIDUAL SHIELD | Aluminum/ mylar laminated tape applied with the metallic side down in electrical contact with a 28AWG tinned copper drain wire (7 strands formation). A 23 micron mylar tape is applied over the screening tape with a minimum 25% overlap. |
| CONDUCTOR | Stranded annealed tinned copper wire, 7/36AWG |
|---|---|
| INSULATION | High density polyethylene. Thickness 0.12mm. Outer diameter 0.7+0.05mm |
| INSULATION COLOR | Black/Brown/Red/Green/White |
| OVERALL SCREEN | Aluminum/ mylar tape |
|---|---|
| BRAID SHIELD | Braid of tinned copper wire. 24x9x0.12mm |
| OUTER SHEATH | LSFROH elastomeric sheath,Thickness 0.51mm. Outer diameter 8.5 +0.2mm, other materail is optional |
| SHEATH COLOR | Black or as per the client's requirement |
Temperature rating: -25°C to +80°C
Minimum bending radius: 3 x Overall Diameter
Rated voltage: 30V
Max conductor resistance at 20°C: 28AWG ≤237 Ohm/Km
30AWG ≤376 Ohm/Km
Min insulation resistance: ≥100M Ohm/m
Nom. differential impedance: Pairs 100+15 Ohm
Coaxial 75 Ohm
Vertical flame propagation for a single insulated wire or cable
EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)
Vertical flame spread of vertically mounted bunched wires or cables
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804
Low Smoke Emission
EN 50268-2; IEC 61034-2; NF C 32-073 ;NF C 20-902; NF F 16 101; VDE 0472 Teil 816
Halogen Free
EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815
Low Corrosivity (Acidity & Conductivity)
EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813
Low Toxicity
EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853
Smoke Index
NF F 63 808; BS6853; NF F 16 101
DIN 5510-2
BS 6853
NF F16 101
NF F 63 808
