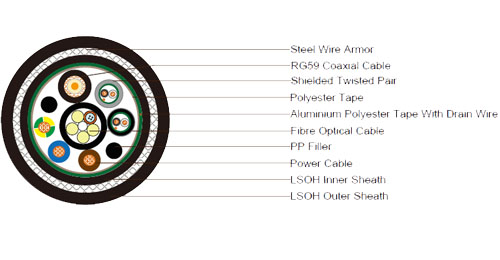

This integrated composite communication cable is specifically designed for complex scenarios requiring simultaneous transmission of video, data, control signals, and power. Through an integrated structure, it integrates 1×75Ω RG59 coaxial cable, 4-core 62.5/125 multimode optical fiber, 2×1×2×24 AWG shielded twisted pair, and 3×2.5mm² power cable. Equipped with an environmentally friendly flame-retardant sheath and high-strength armor, it achieves "one cable for multiple uses", significantly simplifying the wiring process and reducing engineering costs. It is suitable for comprehensive wiring needs in multiple fields such as security monitoring, intelligent buildings, and industrial automation.
1x75Ohm RG59 Coaxial Cable
| Conductor | 0.58mm Solid copper conductor |
| Insulation | Polyethylene. Thickness 1.56mm |
| Shield | Braid of bare copper wire. Coverage ≥ 95% |
| Sheath | LSZH SHF1)sheath. Norminal outer diameter 6.2mm |
| Sheath Color | Black |
4 core 62.5/125 Multi Loose Tube Type Fiber Cable
| Fibers | 4Cx62.5/125 |
| Central Member | Galvanized steel wire |
| Sheath | Nominal outer diameter 9.6mm |
| Sheath Color | Black |
2x1x2x24 AWG Shielded Twisted Pair ( around coaxial cable)
| Conductor | 7/0.2mm Stranded tinned copper |
| Insulation | PVC material. Thickness 0.47mm |
| Insulation Color | Black and white with pair number |
| Shield | Aluminium polyester tape with 0.5mm² stranded tinned copper drain wire. Nominal outer diameter 3.5mm |
| Sheath | LSZH (SHF1) sheath. Norminal outer diameter 5.2mm |
3x2.5mm² Power Cable
| Conductor | 2.5mm² Stranded tinned copper wire |
| Insulation | XLPE. Thickness 0.85mm. Outer diameter 3.6mm |
| Insultion Color | Blue, Brown and Green/Yellow |
| Filler | PP material around cable core |
| Wrapping Tape | Polyester tape |
| Shield | Aluminium polyester tape with 0.5mm² tinned copper drain wire |
| Inner Sheath | Black LSZH (SHF1) , thickness 1.0-1.2mm |
| Armor | Steel wire braid,coverage 85% |
| Outer Sheath | LSZH (SHF1), thickness 1.8-2.0mm. norminal outer diameter 28.5mm |
| Sheath Color | Black |
