Applications
These cables are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits, suitable for fixed applications such as taxiways, runways, navigational aids, and obstruction lighting, can be installed in conduit and direct burial.
Standards
FAA L-824 Type C
ICEA S-96-659/NEWA WC71

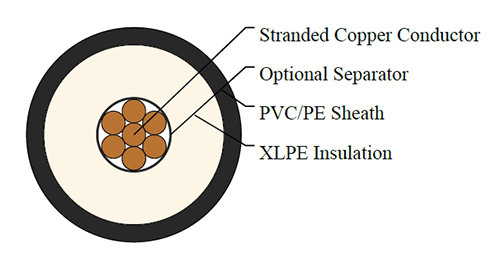

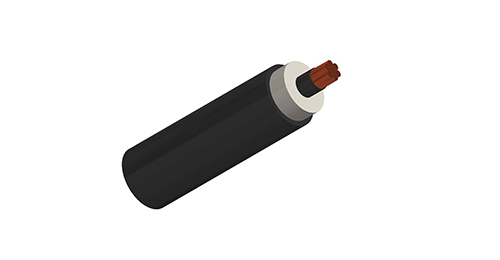

Construction
Conductor: Stranded bare copper to ASTM B3 and ASTM B8.
Optional Separator: Optional separator or conductor shield be applied.
Insulation: XLPE.
Sheath: PE/PVC.
Technical Data
| Rated Voltage Uo/U (Um) | 5kV |
| Maximum Conductor Temperature | 90℃ |
| Short Circuit Temperature | 250℃ |
| Operating Temperatures | -40℃~+90℃ |
| Minimum Bending Radius | static: 10×OD; dynamic: 20×OD |
| Impacted Resistant | Yes |
| Weather Resistant | Yes |
Dimensions and Weight
| Construction | No. of Strand | Nominal Insulation Thickness | Nominal Insulation Thickness | Nominal Overall Diameter | Nominal Weight | ||||
|---|---|---|---|---|---|---|---|---|---|
| No.× AWG | - | mm | inches | mm | inches | mm | inches | kg/km | lbs/kft |
| 1×6mm² | 7 | 2.3 | 0.09 | 0.8 | 0.03 | 9.9 | 0.39 | 180 | 121 |
| 1×8 | 7 | 2.3 | 0.09 | 0.76 | 0.03 | 10.1 | 0.396 | 95 | 64 |
| 1×6 | 7 | 2.3 | 0.09 | 0.76 | 0.03 | 11.0 | 0.433 | 127 | 85 |
| 1×4 | 7 | 2.3 | 0.09 | 1.14 | 0.045 | 13.0 | 0.509 | 164 | 110 |
