The cables are used as railway cables and can be installed directly into the ground or in ducts.
RENFE E.T. 03.365.051.6

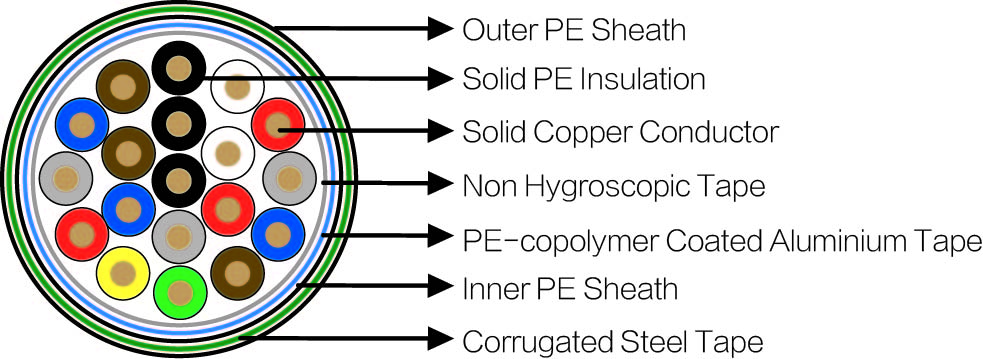

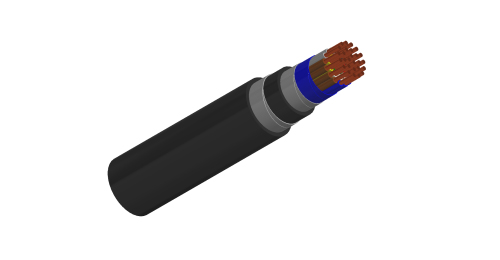

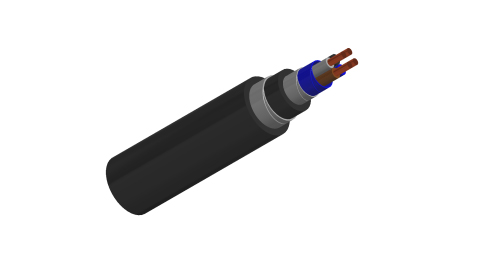

Electrical Characteristics at 20℃Conductors: Soft annealed solid copper, 1.4 mm nominal diameter.
Insulation: PE insulation.
Stranding: Cores are helically stranded in concentric layers.
Core Wrapping: Plastic tape(s) with overlapping.
Moisture Barrier: One laminated sheath made of aluminium tape (0.2mm thick) coated with copolymer on at least one side is applied longitudinally with overlap.
Inner Sheath: PE sheath.
Armour: One corrugated steel tape is longitudinally applied with overlap.
Outer Sheath: PE sheath.
| Nominal Conductor Diameter | mm | 1.4 |
| Maximum Conductor Resistance | Ω/km | 11.7 |
| Minimum Insulation Resistance @500 V DC | MΩ.km | 25000 |
| Resistance Unbalance | % | 2 |
| Test Voltage @50Hz 1min | ||
| Core to Core | Veff | 2100 |
| Core to Screen | Veff | 2500 |
| Core to Armouring | Veff | 2000 |
Minimum Bending Radius: 10×OD
Temperature Range: -30℃ to +70℃ (during operation); -10℃ +50℃ (during installation)
| Cable Code | Number of Cores | Nominal Sheath Thickness mm | Maximum Overall Diameter mm | Nominal Weight kg/km | |
|---|---|---|---|---|---|
| Inner | Outer | ||||
| 1.4mm Conductor, 2.6mm Insulated Wire | |||||
| BRAIL EAPSP-2Y(L)2Y(SR)2Y-4C1.4 | 4 | 1.3 | 1.4 | 15.7 | 270 |
| BRAIL EAPSP-2Y(L)2Y(SR)2Y-7C1.4 | 7 | 1.3 | 1.4 | 17.1 | 350 |
| BRAIL EAPSP-2Y(L)2Y(SR)2Y-9C1.4 | 9 | 1.3 | 1.4 | 19.9 | 420 |
| BRAIL EAPSP-2Y(L)2Y(SR)2Y-12C1.4 | 12 | 1.3 | 1.4 | 20.0 | 480 |
| BRAIL EAPSP-2Y(L)2Y(SR)2Y-19C1.4 | 19 | 1.3 | 1.4 | 22.0 | 630 |
| BRAIL EAPSP-2Y(L)2Y(SR)2Y-27C1.4 | 27 | 1.3 | 1.4 | 24.8 | 810 |
| BRAIL EAPSP-2Y(L)2Y(SR)2Y-37C1.4 | 37 | 1.3 | 1.4 | 26.9 | 1010 |
| BRAIL EAPSP-2Y(L)2Y(SR)2Y-48C1.4 | 48 | 1.3 | 1.4 | 29.7 | 1240 |
| BRAIL EAPSP-2Y(L)2Y(SR)2Y-61C1.4 | 61 | 1.3 | 1.4 | 31.8 | 1490 |
