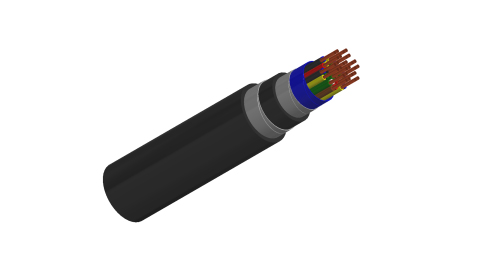

EAPSP n×4×0.9/1.3/1.4
APPLICATIONThe cables are used as railway cables and can be installed directly into the ground or in ducts.STANDARDRENFE E.T. 03.365.051.6CABLE CONSTRUCTIONElectrical Characteristics at 20℃Conductors: Soft annealed solid copper, 0.9/1.3/1.4 mm nomina…
EAPSP nx4x0.9 1.3 1.4.pdf Contact us
Previous: Inductive Loop Cable Previous: CCPSSP-FR0.3 n×2×0.9/1.4

APPLICATION

The cables are used as railway cables and can be installed directly into the ground or in ducts.

STANDARD

  • RENFE E.T. 03.365.051.6

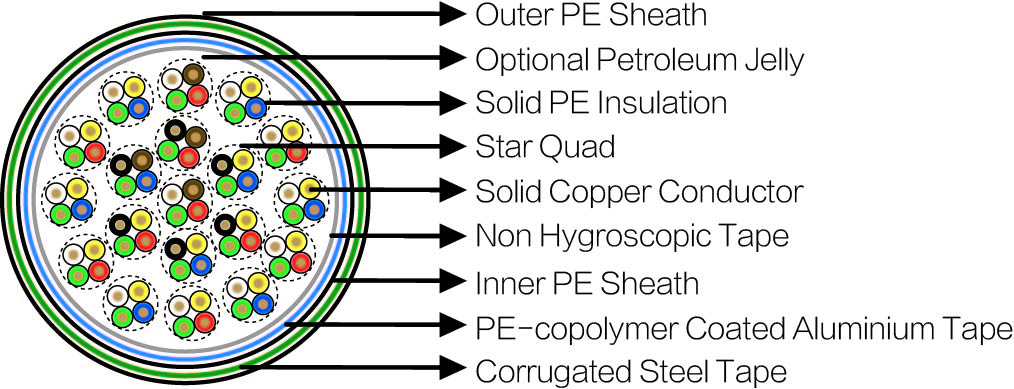

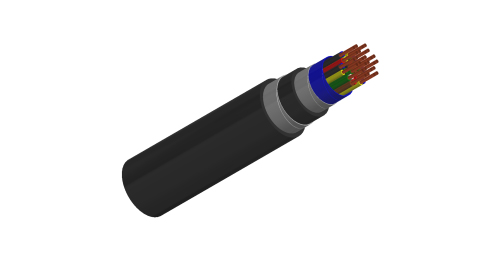

CABLE CONSTRUCTION

  • Electrical Characteristics at 20℃Conductors: Soft annealed solid copper, 0.9/1.3/1.4 mm nominal diameter.

  • Insulation: PE.

  • Cabling Element: Four insulated conductors are twisted together to form a quad.

  • Stranding: Star quads are helically stranded in concentric layers.

  • Core Wrapping: Plastic tape(s) with overlapping.

  • Moisture Barrier: One laminated sheath made of aluminium tape (0.2mm thick) coated with copolymer on at least one side is applied with longitudinally overlap.

  • Inner Sheath: PE sheath.

  • Armour: One corrugated steel tape is longitudinally applied with overlap.

  • Outer Sheath: PE sheath.

  • Optional: Jelly Filled Cables: The cable core interstices are fi lled with petroleum jelly to avoid longitudinal water penetration within the cable. The water resistant filling compound is applied to the air space between non-hygroscopic tape and shield, shield and sheath within the cable core.

Nominal Conductor Diametermm0.91.31.4
Maximum Conductor ResistanceΩ/km28.513.711.7
Minimum Insulation Resistance @500 V DCMΩ.km250002500025000
Resistance Unbalance%111
Mutual Capacitance @800HznF/km414545
Capacitance Unbalance @800Hz



K1 mean value/individual valuepF/460m35/25035/25035/250
K9-12 mean value/individual valuepF/460m35/25035/25035/250
ea1/2 mean value/individual valuepF/460m320/1200320/1200320/1200
Attenuation @1KHzdB/km0.70.50.46
Test Voltage @50Hz 1min



Core to CoreVeff210021002100
Core to ScreenVeff250025002500
Core to ArmouringVeff200020002000

MECHANICAL AND THERMAL PROPERTIES

  • Minimum Bending Radius: 10×OD

  • Temperature Range: -30℃ to +70℃ (during operation); -10℃ to +50℃ (during installation)

DIMENSIONS AND WEIGHT

EAPSP n×4×0.9/1.3/1.4 Cables

Cable CodeNumber of
Quads
(n)		Nominal Sheath Thickness
mm		Maximum Overall
Diameter
mm		Nominal Weight
kg/km
InnerOuter
0.9mm Conductor, 1.8mm Insulated Wire
BRAIL EAPSP-2Y(L)2YB2Y-1Q0.911.31.415.5240
BRAIL EAPSP-2Y(L)2YB2Y-3Q0.931.31.419.5380
BRAIL EAPSP-2Y(L)2YB2Y-5Q0.951.31.422.0490
BRAIL EAPSP-2Y(L)2YB2Y-7Q0.971.31.424.0580
BRAIL EAPSP-2Y(L)2YB2Y-10Q0.9101.31.427.5750
BRAIL EAPSP-2Y(L)2YB2Y-14Q0.9141.41.630.0920
1.3mm Conductor, 2.5mm Insulated Wire
BRAIL EAPSP-2Y(L)2YB2Y-1Q1.311.31.416.0270
BRAIL EAPSP-2Y(L)2YB2Y-3Q1.331.31.420.5470
BRAIL EAPSP-2Y(L)2YB2Y-5Q1.351.41.626.5680
BRAIL EAPSP-2Y(L)2YB2Y-7Q1.371.41.627.0840
BRAIL EAPSP-2Y(L)2YB2Y-10Q1.3101.41.630.51100
BRAIL EAPSP-2Y(L)2YB2Y-14Q1.3141.51.634.01400
1.4mm Conductor, 2.6mm Insulated Wire
BRAIL EAPSP-2Y(L)2YB2Y-1Q1.411.31.418.0330
BRAIL EAPSP-2Y(L)2YB2Y-3Q1.431.31.423.0560
BRAIL EAPSP-2Y(L)2YB2Y-5Q1.451.41.626.5770
BRAIL EAPSP-2Y(L)2YB2Y-7Q1.471.41.629.0950
BRAIL EAPSP-2Y(L)2YB2Y-10Q1.4101.41.634.01280
BRAIL EAPSP-2Y(L)2YB2Y-14Q1.4141.51.638.01650
BRAIL EAPSP-2Y(L)2YB2Y-19Q1.4191.61.843.02120

EAPSP-R n×4×0.9/1.3 Jelly Filled Cables

Cable CodeNumber of
Quads
(n)		Nominal Sheath Thickness
mm		Maximum Overall
Diameter
mm		Nominal Weight
kg/km
InnerOuter
0.9mm Conductor, 1.8mm Insulated Wire
BRAIL EAPSP-R-2Y(F)(L)2YB2Y-1Q0.911.31.416.5270
BRAIL EAPSP-R-2Y(F)(L)2YB2Y-3Q0.931.31.422.0470
BRAIL EAPSP-R-2Y(F)(L)2YB2Y-5Q0.951.31.425.0630
BRAIL EAPSP-R-2Y(F)(L)2YB2Y-7Q0.971.31.426.7730
BRAIL EAPSP-R-2Y(F)(L)2YB2Y-10Q0.9101.31.431.5980
BRAIL EAPSP-R-2Y(F)(L)2YB2Y-12Q0.9121.41.632.81090
BRAIL EAPSP-R-2Y(F)(L)2YB2Y-14Q0.9141.41.634.61230
BRAIL EAPSP-R-2Y(F)(L)2YB2Y-19Q0.9191.51.639.01560
BRAIL EAPSP-R-2Y(F)(L)2YB2Y-25Q0.9251.51.643.21940
1.3mm Conductor, 2.5mm Insulated Wire
BRAIL EAPSP-R-2Y(F)(L)2YB2Y-1Q1.311.31.418.0360
BRAIL EAPSP-R-2Y(F)(L)2YB2Y-3Q1.331.31.423.0570
BRAIL EAPSP-R-2Y(F)(L)2YB2Y-5Q1.351.41.629.5830
BRAIL EAPSP-R-2Y(F)(L)2YB2Y-7Q1.371.41.629.7980
BRAIL EAPSP-R-2Y(F)(L)2YB2Y-10Q1.3101.41.634.51330
BRAIL EAPSP-R-2Y(F)(L)2YB2Y-12Q1.3121.51.838.01580
BRAIL EAPSP-R-2Y(F)(L)2YB2Y-14Q1.3141.51.838.61710
BRAIL EAPSP-R-2Y(F)(L)2YB2Y-19Q1.3191.62.045.52260
BRAIL EAPSP-R-2Y(F)(L)2YB2Y-25Q1.3251.62.050.52840
