The cables are used as railway cables and can be installed directly into the ground or in ducts.
RENFE E.T. 03.365.051.6

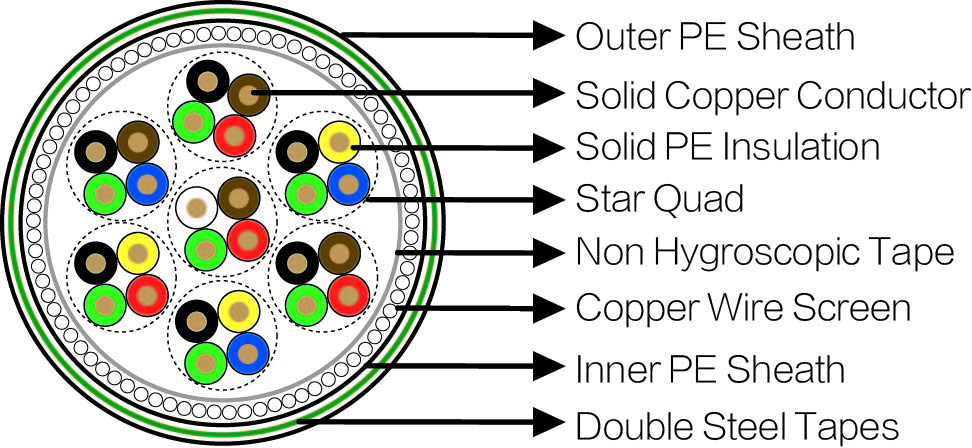

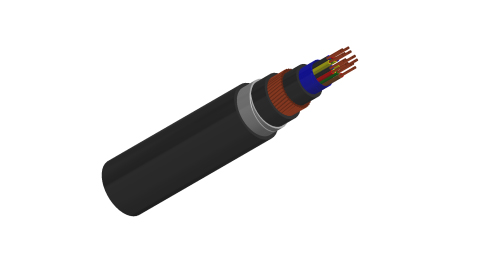

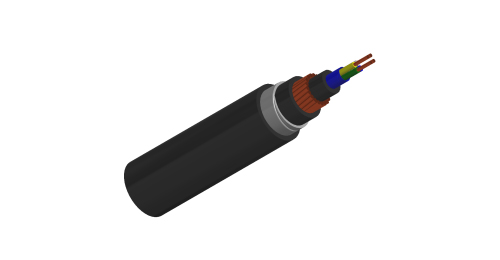

Electrical Characteristics at 20℃Conductors: Soft annealed solid copper, 0.9/1.4 mm nominal diameter.
Insulation: PE.
Cabling Element: Four insulated conductors are twisted together to form a quad.
Stranding: Quads are helically stranded in concentric layers.
Core Wrapping: Two or more layers of plastic tape(s) with overlapping.
Screen: 0.9/1.2/1.4/1.8mm copper wires wrapping with one plastic tape (protection against interference).
Inner Sheath: PE sheath.
Armour: Two layers steel tape (0.8mm thick).
Outer Sheath: PE sheath.
| Nominal Conductor Diameter | mm | 0.9 | 1.4 |
| Maximum Conductor Resistance | Ω/km | 28.5 | 11.7 |
| Minimum Insulation Resistance @500 V DC | MΩ.km | 35000 | 35000 |
| Mutual Capacitance @800Hz | nF/km | 41 | 45 |
| Capacitance Unbalance @800Hz | |||
| K1 maximum individual value | pF/460m | 250 | 250 |
| K9-12 maximum individual value | pF/460m | 250 | 250 |
| ea1/2 maximum individual value | pF/460m | 1200 | 1200 |
| Attenuation | |||
| @1KHz | dB/km | 0.7 | 0.46 |
| @10KHz | dB/km | 1.6 | 0.85 |
| @30KHz | dB/km | 2.1 | 1.3 |
| Test Voltage @50Hz 1min | |||
| Core to Core | Veff | 2100 | 2100 |
| Core to Screen | Veff | 2500 | 2500 |
| Core to Armouring | Veff | 2000 | 2000 |
| Reduction Factor @100V/km 50Hz | 0.3 | 0.3 |
Minimum Bending Radius: 10×OD
Temperature Range: -40℃ to +60℃ (during operation); -10℃ to +60℃ (during installation)
| Cable Code | Number of Quads | Nominal Sheath Thickness mm | Maximum Overall Diameter mm | Nominal Weight kg/km | |
|---|---|---|---|---|---|
| Inner | Outer | ||||
| 0.9mm Conductor, 1.8mm Insulated Wire | |||||
| BRAIL CCPSSP-FR0.1-2YD2YB2Y-1Q0.9 | 1 | 1.5 | 1.6 | 21.2 | 1140 |
| BRAIL CCPSSP-FR0.1-2YD2YB2Y-3Q0.9 | 3 | 1.5 | 1.6 | 24.5 | 1370 |
| BRAIL CCPSSP-FR0.1-2YD2YB2Y-5Q0.9 | 5 | 1.5 | 1.6 | 27.0 | 1610 |
| BRAIL CCPSSP-FR0.1-2YD2YB2Y-7Q0.9 | 7 | 1.5 | 1.6 | 28.4 | 1750 |
| BRAIL CCPSSP-FR0.1-2YD2YB2Y-10Q0.9 | 10 | 1.5 | 1.6 | 32.1 | 2060 |
| BRAIL CCPSSP-FR0.1-2YD2YB2Y-12Q0.9 | 12 | 1.5 | 1.6 | 32.1 | 2130 |
| BRAIL CCPSSP-FR0.1-2YD2YB2Y-14Q0.9 | 14 | 1.6 | 1.8 | 35.3 | 2380 |
| BRAIL CCPSSP-FR0.1-2YD2YB2Y-19Q0.9 | 19 | 1.7 | 1.8 | 38.6 | 2760 |
| BRAIL CCPSSP-FR0.1-2YD2YB2Y-25Q0.9 | 25 | 1.7 | 1.8 | 42.0 | 3150 |
| 1.4mm Conductor, 2.7mm Insulated Wire | |||||
| BRAIL CCPSSP-FR0.1-2YD2YB2Y-1Q1.4 | 1 | 1.5 | 1.6 | 22.7 | 1280 |
| BRAIL CCPSSP-FR0.1-2YD2YB2Y-3Q1.4 | 3 | 1.5 | 1.6 | 28.0 | 1690 |
| BRAIL CCPSSP-FR0.1-2YD2YB2Y-5Q1.4 | 5 | 1.6 | 1.8 | 32.0 | 2070 |
| BRAIL CCPSSP-FR0.1-2YD2YB2Y-7Q1.4 | 7 | 1.6 | 1.8 | 33.9 | 2320 |
| BRAIL CCPSSP-FR0.1-2YD2YB2Y-10Q1.4 | 10 | 1.6 | 1.8 | 39.2 | 2860 |
| BRAIL CCPSSP-FR0.1-2YD2YB2Y-12Q1.4 | 12 | 1.7 | 1.8 | 39.2 | 2980 |
| BRAIL CCPSSP-FR0.1-2YD2YB2Y-14Q1.4 | 14 | 1.7 | 1.8 | 42.6 | 3340 |
| BRAIL CCPSSP-FR0.1-2YD2YB2Y-19Q1.4 | 19 | 1.8 | 2.0 | 48.5 | 4160 |
