APPLICATION

The cables are designed for high speed data transmissions, and are suitable for installations in cable trays or on hooks.

STANDARD

• RATP CAT6-K20 (for K20 cable)

• FRANCE TELECOM S31-10/20 & NF C 93.531-6/7 (for L120 cable)

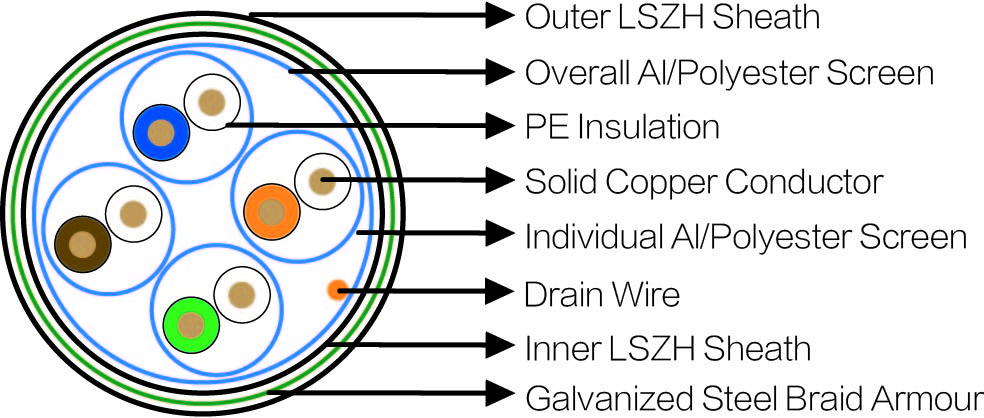

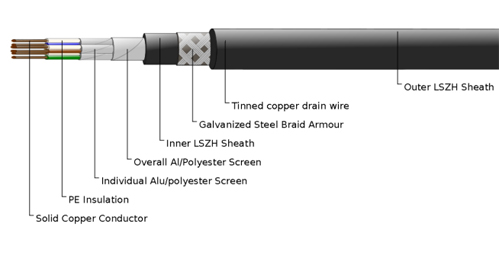

CABLE CONSTRUCTION

• Electrical Characteristics at 20℃Conductors: Class 1 AWG23 solid copper conductor (for K20 cable); 0.6mm annealed copper conductor (for L120 cable).

• Insulation: Solid polyethylene (for K20 cable); Foam skin (cellular PE + solid PE) (for L120 cable).

• Cabling Element: Two conductors are twisted together to form a pair (for K20 cable); Four conductors are twisted together to form a quad (for L120 cable).

• Core Wrapping (for L120 cable): Non-hygroscopic plastic tape with overlapping.

• Individual Screen (for K20 cable): Alu/polyester shield on each pair.

• Overall Screen: Alu/polyester shield.

• Drain Wire: Tinned copper drain wire, 0.5mm nominal diameter.

• Inner Sheath (for K20 cable): LSZH.

• Armour (for K20 cable): Galvanized steel braid armour.

• Outer Sheath: LSZH.

• Optional

• Armoured L120 Cables: Tinned copper braid armoured cables can be offered upon request.

MECHANICAL AND THERMAL PROPERTIES

• Minimum Bending Radius: 12×OD (static); 24×OD (dynamic)

• Temperature Range: -40℃ to +60℃ (during operation); -10℃ +60℃ (during installation)

DIMENSIONS AND WEIGHT

K20 cables

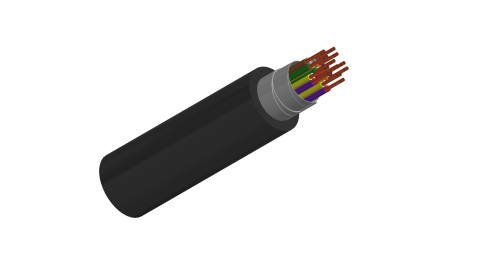

L120 cables
