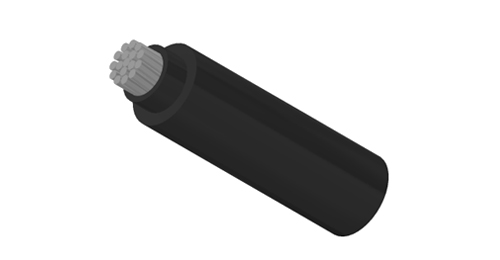

This product is a 0.6/1kV cross-linked polyethylene (XLPE) insulated, polyvinyl chloride (PVC) sheathed power cable, meticulously engineered to perform reliably in complex and diverse indoor/outdoor environments, including harsh conditions such as dampness and dryness. Its core design is dedicated to meeting the high-standard demands of power transmission and distribution, combining superior electrical stability with excellent installation flexibility. It serves as an ideal choice for urban grid upgrades, industrial plant construction, and various power distribution systems.
AS/NZS 5000.1
AS/NZS 3008
AS1125

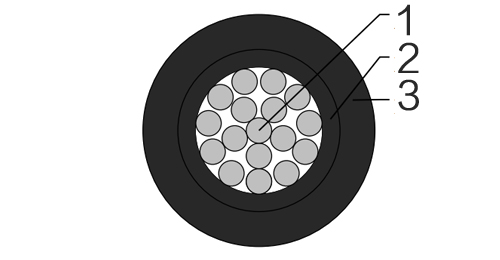

| Conductor | Aluminum/plain annealed copper |
| Insulation | XLPE X-90 |
| Insulation colour: | black, other colors are available upon request |
| Sheath: | Polyvinylchloride compound PVC 5V-90 |
| Sheath colour: | Black, other colors are available upon request |
| Conductor | Current Ratings | Electrical Characteristics | ||||||
|---|---|---|---|---|---|---|---|---|
| Nominal Area mm^2 | In conduit In Air A | Buried In Ducts A | In conduit In Air A | Buried In Ducts A | Maximum DC Resistance @20°C Ohm/km | Maximum AC Resistance @90°C Ohm/km | Reactance (trefoil) Ohm/km | 3 phase Voltage Drop mV/A |
| Aluminum | ||||||||
| 16 | 70 | 74 | 74 | 86 | 1.91 | 2.45 | 0.106 | 4.25 |
| 25 | 99 | 96 | 100 | 112 | 1.20 | 1.54 | 0.102 | 2.67 |
| 35 | 116 | 118 | 121 | 134 | 0.868 | 1.11 | 0.0982 | 1.94 |
| 50 | 138 | 139 | 149 | 161 | 0.641 | 0.822 | 0.0924 | 1.43 |
| 70 | 176 | 177 | 193 | 198 | 0.443 | 0.568 | 0.0893 | 0.997 |
| 95 | 215 | 209 | 237 | 241 | 0.320 | 0.411 | 0.0868 | 0.727 |
| 120 | 253 | 241 | 281 | 278 | 0.253 | 0.325 | 0.0844 | 0.582 |
| 150 | 286 | 273 | 319 | 310 | 0.206 | 0.265 | 0.0844 | 0.482 |
| 185 | 330 | 310 | 374 | 358 | 0.164 | 0.212 | 0.0835 | 0.394 |
| 240 | 396 | 369 | 440 | 428 | 0.125 | 0.162 | 0.0818 | 0.314 |
| 300 | 457 | 428 | - | 482 | 0.100 | 0.130 | 0.0809 | 0.266 |
| 400 | 534 | 487 | - | 567 | 0.0778 | 0.103 | 0.0802 | 0.226 |
| 500 | 616 | 578 | - | 653 | 0.0605 | 0.0813 | 0.0796 | 0.197 |
| 630 | 726 | 663 | - | 770 | 0.0469 | 0.0649 | 0.0787 | 0.177 |
| Copper | ||||||||
| 16 | 86 | 95 | 95 | 112 | 1.15 | 1.47 | 0.106 | 2.550 |
| 25 | 121 | 123 | 127 | 144 | 0.727 | 0.927 | 0.102 | 1.620 |
| 35 | 138 | 150 | 160 | 171 | 0.524 | 0.668 | 0.098 | 1.170 |
| 50 | 171 | 182 | 193 | 209 | 0.387 | 0.494 | 0.092 | 0.872 |
| 70 | 209 | 225 | 242 | 257 | 0.268 | 0.342 | 0.089 | 0.615 |
| 95 | 253 | 268 | 286 | 310 | 0.193 | 0.247 | 0.087 | 0.457 |
| 120 | 297 | 310 | 341 | 358 | 0.153 | 0.197 | 0.084 | 0.373 |
| 150 | 341 | 353 | 385 | 401 | 0.124 | 0.160 | 0.084 | 0.316 |
| 185 | 391 | 401 | 440 | 465 | 0.099 | 0.129 | 0.084 | 0.269 |
| 240 | 462 | 471 | 523 | 546 | 0.075 | 0.099 | 0.082 | 0.227 |
| 300 | 534 | 546 | - | 621 | 0.060 | 0.080 | 0.081 | 0.202 |
| 400 | 616 | 621 | - | 717 | 0.047 | 0.065 | 0.080 | 0.183 |
| 500 | 715 | 717 | - | 813 | 0.037 | 0.053 | 0.080 | 0.170 |
| 630 | 836 | 813 | - | 952 | 0.028 | 0.043 | 0.079 | 0.159 |
| Nom. conductor area mm^2 | Main conductor type | Nom. insulation thickness mm | Nom. sheath thickness mm | Nom. overall diameter mm | Approx. mass kg/km | |
|---|---|---|---|---|---|---|
| Alumductor | ||||||
| 16 | 7/1.70 | circular | 0.7 | 1.4 | 9.4 | 100 |
| 25 | 7strands | compacted | 0.9 | 1.4 | 11.3 | 160 |
| 35 | 19strands | compacted | 0.9 | 1.4 | 12.5 | 210 |
| 50 | 19strands | compacted | 1.0 | 1.4 | 13.1 | 260 |
| 70 | 19strands | compacted | 1.1 | 1.4 | 15.0 | 330 |
| 95 | 19strands | compacted | 1.1 | 1.5 | 17.0 | 420 |
| 120 | 19strands | compacted | 1.2 | 1.5 | 18.6 | 510 |
| 150 | 19strands | compacted | 1.4 | 1.6 | 20.7 | 640 |
| 185 | 36strands | compacted | 1.6 | 1.6 | 22.7 | 780 |
| 240 | 36strands | compacted | 1.7 | 1.7 | 25.5 | 990 |
| 300 | 37strands | compacted | 1.8 | 1.8 | 28.1 | 1220 |
| 400 | 60strands | compacted | 2.0 | 1.9 | 31.8 | 1600 |
| 500 | 60strands | compacted | 2.2 | 2 | 35.4 | 2000 |
| 630 | 60strands | compacted | 2.4 | 2.2 | 39.6 | 2600 |
| Copper Conductor | ||||||
| 16 | 7/1.70 | circular | 0.7 | 1.4 | 9.4 | 230 |
| 25 | 7/2.14 | circular | 0.9 | 1.4 | 11.3 | 320 |
| 35 | 19/1.53 | circular | 0.9 | 1.4 | 12.5 | 425 |
| 50 | 19strands | compacted | 1.0 | 1.4 | 13.1 | 550 |
| 70 | 19strands | compacted | 1.1 | 1.4 | 15.0 | 760 |
| 95 | 19strands | compacted | 1.1 | 1.5 | 16.8 | 1040 |
| 120 | 19strands | compacted | 1.2 | 1.5 | 18.6 | 1305 |
| 150 | 19strands | compacted | 1.4 | 1.6 | 20.6 | 1585 |
| 185 | 36strands | compacted | 1.6 | 1.6 | 22.7 | 1980 |
| 240 | 36strands | compacted | 1.7 | 1.7 | 25.6 | 2610 |
| 300 | 37strands | compacted | 1.8 | 1.8 | 28.4 | 3340 |
| 400 | 60strands | compacted | 2.0 | 1.9 | 31.7 | 4245 |
| 500 | 60strands | compacted | 2.2 | 2.0 | 35.4 | 5500 |
| 630 | 91strands | compacted | 2.4 | 2.2 | 42.4 | 7220 |
