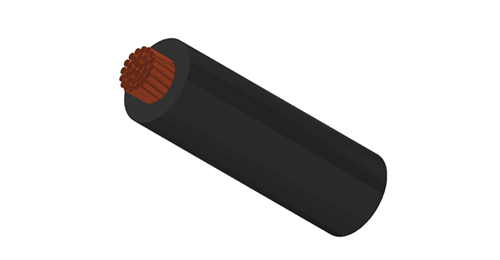

Single-Core V90HT High-Temperature Cable | AS-Compliant High-Temperature Electrical Connection Solution
Designed for demanding high-temperature industrial environments, the single-core V90HT high-temperature cable utilizes V90HT PVC insulation material compliant with AS3808 standards (continuous temperature resistance of 90°C, short-circuit tolerance up to 250°C/5 seconds), paired with high-purity copper conductors compliant with AS1125 standards (bare copper wire PCW/tinned copper wire TCW). This ensures the safe and stable operation of electrical systems under extreme conditions.
The product is triple-certified to AS3191, AS1125, and AS3808 standards, offering 10 standard color codes such as red, blue, and green, covering conductor specifications from 0.5-6 mm². It combines excellent conductivity with superior oxidation resistance.
The unique insulation structure design allows the cable to maintain a compact outer diameter (2.6-4.7 mm) while delivering higher current-carrying capacity (12-50A) and lower line losses (resistance values of 13.3-26.7 Ω/km). It is an ideal choice for electrical connections in high-temperature areas across industries such as metallurgy, chemical engineering, and new energy.
STANDARD
AS 3191
AS1125
AS3808

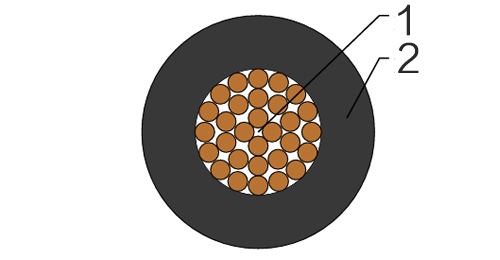

| Conductor | Tinned copper wire (TCW) or plain copper wire (PCW) to AS1125 |
| Insulation | V90HT PVC AS3808 |
| Colours: | Red, Blue, Green, Yellow, White, Black, Brown, Violet, Orange, Grey |
| Conductor Size | Electrical Resistance @20.C Ohm/km(TCW) | Electrical Resistance @20.C Ohm/km(PCW) | AMP Rating |
|---|---|---|---|
| mm^2 | |||
| 0.5 | 40.1 | 39 | 3 |
| 0.75 | 26.7 | 26 | 7.5 |
| 1 | 20 | 19.5 | 10 |
| 1.5 | 13.7 | 13.3 | 15 |
| 2.5 | 8.2 | 8 | 20 |
| 4 | 5.1 | 5 | 25 |
| Conductor Size | No.of cores | Conductor No./ OD | Nominal Insulation Thickness | Nominal O.D. | Approx. Cable Weight |
|---|---|---|---|---|---|
| mm^2 | mm | mm | mm | kg/100m | |
| 0.5 | 1 | 16/0.2 | 0.8 | 2.6 | 1.1 |
| 0.75 | 1 | 24/0.2 | 0.8 | 2.8 | 1.4 |
| 1 | 1 | 32/0.2 | 0.8 | 3 | 1.7 |
| 1.5 | 1 | 30/0.25 | 0.8 | 3.3 | 2.2 |
| 2.5 | 1 | 50/0.25 | 0.9 | 3.95 | 3.5 |
| 4 | 1 | 56/0.3 | 1 | 4.75 | 5.3 |
