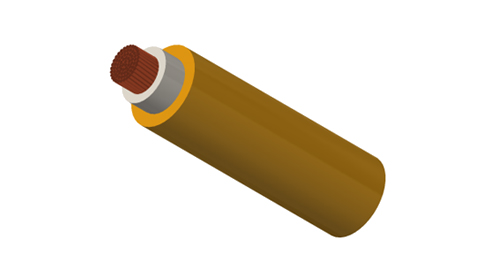

High-quality cables that comply with the AS/NZS 3000 electrical standard and the GB/T 12706.1-2020 cable standard, and have passed testing by the National Wire and Cable Quality Supervision and Inspection Center. The products are manufactured in strict accordance with international standards such as AS/NZS 5000.1, AS1125, and AS3808. They feature conductors made of 0.2mm stranded soft copper wire compliant with AS 1125, insulation that meets the R-E-110 specification in AS3808 (standard color: white), and an outer sheath made of HFS-110-TP material (standard colors: orange and black, other colors customizable). This series offers a comprehensive range of specifications, from 10mm² to 120mm², with excellent electrical performance, low resistance, strong current-carrying capacity, and minimal voltage drop. Suitable for various single-phase and three-phase power configurations, the cables provide detailed structural parameters, including the number of cores, conductor structure, insulation and sheath thickness, outer diameter, and reference weight, meeting the demanding requirements of industrial and commercial power applications. Choosing us means selecting a safe, reliable, and compliant cable solution for your project.
AS/NZS 5000.1
AS1125
AS3808

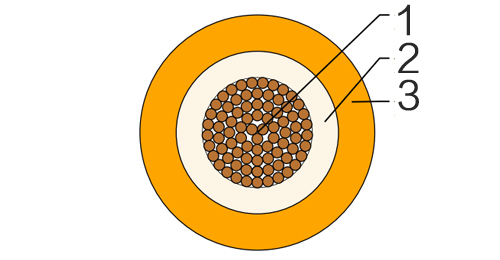

| Conductor | Nominal 0.2mm stranded flexible plain copper wire to AS 1125 |
| Insulation | R -E-110 to AS3808 |
| Insulation Colour: | White |
| Sheath: | HFS-110-TP to comply with AS3808 |
| Sheath Colours: | Orange , Black - other colours available by request |
| Conductor Size | Electrical Resistance @20.C | Current Ratìng' AMPS 2 single cores | Voltage Drop mV 1Am at Max operating Temperature | |
|---|---|---|---|---|
| mm^2 | Ohm/km | Single Phase | Three Phase | |
| 10 | 1.910 | 105 | 4.97 | 4.30 |
| 16 | 1.210 | 135 | 3.13 | 2.70 |
| 25 | 0.780 | 185 | 1.99 | 1.72 |
| 35 | 0.554 | 225 | 1.44 | 1.24 |
| 50 | 0.386 | 275 | 1.07 | 0.92 |
| 70 | 0.272 | 350 | 0.769 | 0.65 |
| 95 | 0.206 | 435 | 0.567 | 0.48 |
| 120 | 0.161 | 510 | 0.465 | 0.39 |
| Conductor Size | No.of cores | Conductor No./ OD | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal O.D. | Approx. Cable Weight |
|---|---|---|---|---|---|---|
| mm^2 | mm | mm | mm | mm | kg/100m | |
| 10 | 1 | 322/0.2 | 1.0 | 1.4 | 9.1 | 16.30 |
| 16 | 1 | 511/0.2 | 1.0 | 1.4 | 10.1 | 23.40 |
| 25 | 1 | 784/0.2 | 1.2 | 1.4 | 11.8 | 33.60 |
| 35 | 1 | 1120102 | 1.2 | 1.4 | 13.1 | 44.60 |
| 50 | 1 | 1568/0.2 | 1.4 | 1.4 | 14.9 | 62.50 |
| 70 | 1 | 2240/0.2 | 1.4 | 1.4 | 17.0 | 81 .80 |
| 95 | 1 | 3040/0.2 | 1.6 | 1.5 | 19.3 | 113.00 |
| 120 | 1 | 3800/0.2 | 1.6 | 1.5 | 20.8 | 137.40 |
