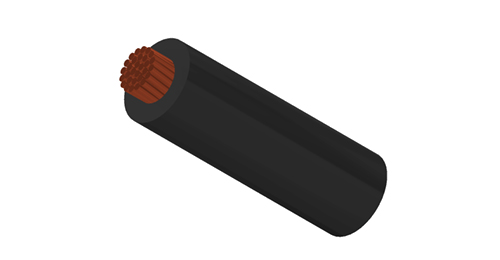

X-HF-110 is a 0.6/1kV single-core halogen-free flame-retardant cable compliant with AS/NZS 5000.1 standards. Featuring XLPE insulation and an LSZH sheath, it operates reliably in temperatures ranging from -40°C to 90°C, ensuring safety and durability. Designed for fixed installation in industrial plants, electrical risers of commercial buildings, and cable trenches of new energy power stations, it delivers comprehensive power transmission solutions.
AS/NZS 5000.1
AS1125
AS3808

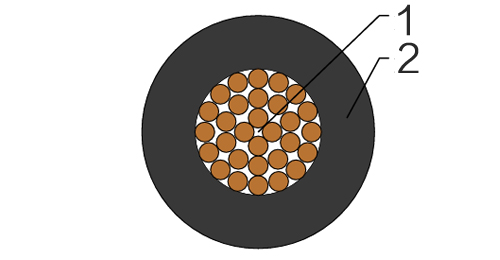

Conductor : Nominal 0 .2mm stranded flexible plain copper wire to AS 1125
Insulation : X-HF-110 to AS3808
Colours : Black, Red, Blue, White, Green/Yellow
| Conductor Size | Electrical Resistance @20°C | Current Ratìng' AMPS 2 single cores | Voltage Drop mV 1Am at Max operating Temperature | |
|---|---|---|---|---|
| mm² | Ohm/km | Single Phase | Three Phase | |
| 0.5 | 39 | 7 | 125 | 107 |
| 1.0 | 19.500 | 25 | 57.4 | 49.70 |
| 1.5 | 13.300 | 32 | 36.85 | 31 .90 |
| 2.5 | 7.980 | 45 | 20.1 | 17.40 |
| 4.0 | 4.950 | 59 | 12.5 | 10.80 |
| 6.0 | 3.300 | 75 | 8.35 | 7.23 |
| 10 | 1.910 | 105 | 4.97 | 4.30 |
| 16 | 1.210 | 135 | 3.13 | 2.71 |
| 25 | 0.780 | 185 | 1.99 | 1.72 |
| 35 | 0.554 | 225 | 1.44 | 1.25 |
| 50 | 0.386 | 275 | 1.07 | 0.929 |
| 70 | 0.272 | 350 | 0.769 | 0.657 |
| 95 | 0.206 | 435 | 0.567 | 0.491 |
| 120 | 0.161 | 510 | 0.465 | 0.403 |
| Conductor Size | No.of cores | Conductor No./ OD | Nominal Insulation Thickness | Nominal O.D. | Approx. Cable Weight |
|---|---|---|---|---|---|
| mm² | mm | mm | mm | kg/100m | |
| 0.5 | 1 | 16/0.2 | 0.7 | 2.40 | 1.10 |
| 1.0 | 1 | 32/0.2 | 0.7 | 2.80 | 1.50 |
| 1.5 | 1 | 30/0.25 | 0.7 | 3.10 | 2.00 |
| 2.5 | 1 | 50/0.25 | 0.7 | 3.60 | 2.90 |
| 4.0 | 1 | 128/0.2 | 0.7 | 4.20 | 4.40 |
| 6.0 | 1 | 192/0.2 | 0.7 | 4.80 | 6.60 |
| 10 | 1 | 322/0.2 | 0.7 | 5.80 | 10.50 |
| 16 | 1 | 511/0.2 | 0.7 | 6.90 | 16.10 |
| 25 | 1 | 784/0.2 | 0.9 | 8.70 | 28.80 |
| 35 | 1 | 1120/0.2 | 0.9 | 9.60 | 36.30 |
| 50 | 1 | 1568/0.2 | 1.0 | 11.20 | 49.50 |
| 70 | 1 | 2240/0.2 | 1.1 | 13.20 | 70.10 |
| 95 | 1 | 3040/0.2 | 1.1 | 15.00 | 94.20 |
| 120 | 1 | 3800/0.2 | 1.2 | 16.70 | 116.80 |
