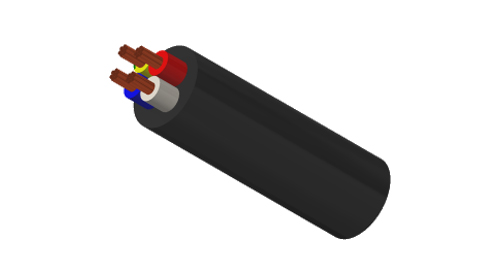

This product is a 0.6/1kV PVC-insulated PVC-sheathed 3-core plus earth (3C+E) unarmored cable, specifically designed for power transmission and distribution systems. It strictly complies with the Australian AS/NZS 5000.1 standard, offering excellent cost-effectiveness and is widely used in various electrical engineering applications.
The cable utilizes PVC insulation and sheathing, providing superior moisture resistance, resistance to acids and alkalis, and flexibility. It is suitable for a wide range of complex wiring environments, including indoor fixed installations, cable trays, conduits, and direct burial applications.
AS/NZS 5000.1
AS/NZS 3008
AS/NZS 1125

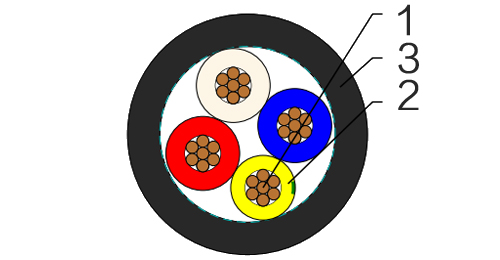

| Conductor | Plain annealed copper. |
| Insulation | Polyvinylchloride compound PVC V-90 |
| Insulation colour: | 3C + E – Red, White, Blue, Green/yellow |
| Sheath: | Polyvinylchloride compound PVC 5V-90 |
| Sheath colour: | Black, other colors are available upon request |
| Conductor | Current Ratings | Electrical Characteristics | |||||
|---|---|---|---|---|---|---|---|
| Nominal Area mm^2 | Unenclosed In Air A | Buried Direct A | Buried In Ducts A | Maximum DC Resistance @20°C Ohm/km | Maximum AC Resistance @75°C Ohm/km | Reactance Ohm/km | Single Phase Voltage Drop @75°C mV/Am |
| 1.5 | 15 | 13 | 19 | 13.6 | 16.5 | 0.111 | 28.6 |
| 2.5 | 22 | 18 | 26 | 7.41 | 9.01 | 0.102 | 15.6 |
| 4 | 29 | 24 | 34 | 4.61 | 5.61 | 0.102 | 9.71 |
| 6 | 37 | 31 | 43 | 3.08 | 3.75 | 0.0967 | 6.49 |
| 10 | 51 | 42 | 57 | 1.83 | 2.23 | 0.0906 | 3.86 |
| 16 | 68 | 56 | 74 | 1.15 | 1.40 | 0.0861 | 2.43 |
| 25 | 91 | 79 | 96 | 0.727 | 0.884 | 0.0853 | 1.54 |
| 35 | 110 | 92 | 115 | 0.524 | 0.638 | 0.0826 | 1.11 |
| 50 | 135 | 110 | 140 | 0.387 | 0.471 | 0.0797 | 0.829 |
| 70 | 170 | 140 | 175 | 0.268 | 0.327 | 0.0770 | 0.583 |
| 95 | 215 | 165 | 210 | 0.193 | 0.236 | 0.0766 | 0.431 |
| 120 | 245 | 195 | 240 | 0.153 | 0.188 | 0.0743 | 0.351 |
| 150 | 280 | 225 | 270 | 0.124 | 0.153 | 0.0745 | 0.296 |
| 185 | 325 | 260 | 310 | 0.0991 | 0.123 | 0.0744 | 0.251 |
| 240 | 385 | 305 | 370 | 0.0754 | 0.0955 | 0.0735 | 0.210 |
| Nom. conductor area mm^2 | Conductor No./ OD | Nom. insulation thickness mm | Nom. earth conductor area mm^2 | Nom. earth conductor insulation thickness mm | Nom. overall diameter mm | Approx. mass kg/km |
|---|---|---|---|---|---|---|
| 1.5 | 7/0.50 | 0.8 | 1.5 | 0.6 | 11.5 | 190 |
| 2.5 | 7/0.67 | 0.8 | 2.5 | 0.7 | 12.6 | 250 |
| 4 | 7/0.85 | 1.0 | 2.5 | 0.7 | 14.2 | 350 |
| 6 | 7/1.04 | 1.0 | 2.5 | 0.7 | 15.4 | 400 |
| 10 | 7/1.35 | 1.0 | 4.0 | 1.0 | 17.5 | 605 |
| 16 | 7/1.70 | 1.0 | 6.0 | 1.0 | 19.8 | 825 |
| 25 | 7/2.14 | 1.2 | 6.0 | 1.0 | 23.5 | 1190 |
| 35 | 7/2.65 | 1.2 | 6.0 | 1.0 | 25.0 | 1535 |
| 50 | 19/1.89 | 1.4 | 16 | 1.0 | 30.4 | 2175 |
| 70 | 19/2.24 | 1.4 | 25 | 1.2 | 33.0 | 2870 |
| 95 | 19/2.65 | 1.6 | 25 | 1.2 | 38.4 | 3880 |
| 120 | 19/2.94 | 1.6 | 35 | 1.2 | 40.6 | 4640 |
| 150 | 19/3.28 | 1.8 | 50 | 1.4 | 45.2 | 5500 |
| 185 | 37/2.65 | 2.0 | 70 | 1.4 | 50.3 | 6930 |
| 240 | 37/2.94 | 2.2 | 95 | 1.6 | 57.2 | 9170 |
