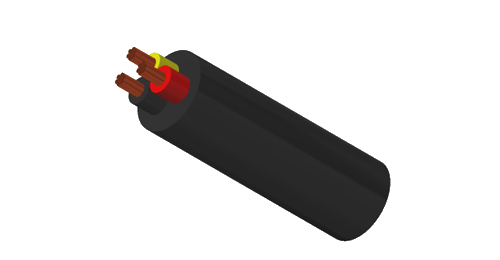

This product is a 450/750V PVC-insulated, PVC-sheathed round cable (2-core + earth), specifically designed for fixed installations in construction and industrial sectors. It utilizes high-quality annealed copper conductors and durable PVC composite materials to ensure safe and stable power transmission and distribution in environments without strong mechanical external forces. This cable series fully complies with Australian/New Zealand standards and offers reliable performance, making it an ideal choice for various building wiring, industrial equipment power supply, and lighting systems.
AS/NZS 5000.1
AS/NZS 3008
AS/NZS 1125

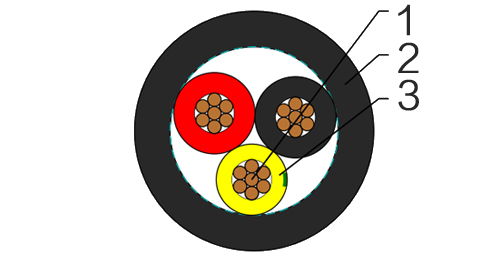

| Conductor | Plain annealed copper. |
| Insulation | Polyvinylchloride compound PVC V-90 |
| Insulation colour: | 2C + E - Red, Black, Green/yellow |
| Sheath: | Polyvinylchloride compound PVC 5V-90 |
| Sheath colour: | Black, other colors are available upon request |
| Conductor | Current Ratings | Electrical Characteristics | |||||
|---|---|---|---|---|---|---|---|
| Nominal Area mm^2 | Unenclosed In Air A | Buried Direct A | Buried In Ducts A | Maximum DC Resistance @20°C Ohm/km | Maximum AC Resistance @75°C Ohm/km | Reactance Ohm/km | Single Phase Voltage Drop @75°C mV/Am |
| 1.5 | 18 | 14 | 22 | 13.6 | 16.5 | 0.111 | 33.0 |
| 2.5 | 26 | 20 | 31 | 7.41 | 9.01 | 0.102 | 18.0 |
| 4 | 34 | 26 | 40 | 4.61 | 5.61 | 0.102 | 11.2 |
| 6 | 44 | 34 | 51 | 3.08 | 3.75 | 0.0967 | 7.50 |
| 10 | 60 | 47 | 68 | 1.83 | 2.23 | 0.0906 | 4.46 |
| 16 | 80 | 63 | 88 | 1.15 | 1.40 | 0.0861 | 2.81 |
| 25 | 105 | 88 | 115 | 0.727 | 0.884 | 0.0853 | 1.78 |
| 35 | 130 | 105 | 140 | 0.524 | 0.638 | 0.0826 | 1.28 |
| 50 | 160 | 125 | 165 | 0.387 | 0.471 | 0.0797 | 0.957 |
| 70 | 200 | 155 | 205 | 0.268 | 0.327 | 0.0770 | 0.673 |
| 95 | 250 | 190 | 250 | 0.193 | 0.236 | 0.0766 | 0.498 |
| Nom. conductor area mm^2 | Conductor No./ OD | Nom. insulation thickness mm | Nom. earth conductor area mm^2 | Nom. earth conductor insulation thickness mm | Nom. overall diameter mm | Approx. mass kg/km |
|---|---|---|---|---|---|---|
| 1.5 | 7/0.50 | 0.8 | 1.5 | 0.6 | 10.6 | 160 |
| 2.5 | 7/0.67 | 0.8 | 2.5 | 0.7 | 11.6 | 220 |
| 4 | 7/0.85 | 1.0 | 2.5 | 0.7 | 13.1 | 295 |
| 6 | 7/1.04 | 1.0 | 2.5 | 0.7 | 14.2 | 335 |
| 10 | 7/1.35 | 1.0 | 4 | 1.0 | 15.9 | 440 |
| 16 | 7/1.70 | 1.0 | 6 | 1.0 | 17.9 | 620 |
| 25 | 7/2.14 | 1.2 | 6 | 1.0 | 21.6 | 840 |
| 35 | 7/2.65 | 1.2 | 10 | 1.0 | 22.8 | 1090 |
| 50 | 19/1.89 | 1.4 | 16 | 1.0 | 25.8 | 1465 |
| 70 | 19/2.24 | 1.4 | 25 | 1.2 | 30.4 | 1900 |
| 95 | 19/2.65 | 1.6 | 25 | 1.2 | 34.8 | 2500 |
