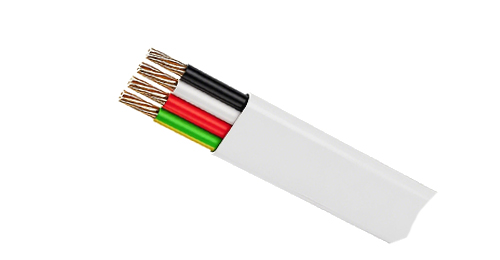

This product is specifically designed for modern power transmission systems, featuring a GB-certified 450/750V PVC-insulated flat structure with 3 cores + E. It is suitable for various scenarios including home decoration, commercial buildings, and industrial production. Through the selection of high-purity electrolytic copper conductors and thickened PVC insulation layers, it ensures high efficiency and safety in power transmission.
AS/NZS 5000.2
AS 1125
AS 3808

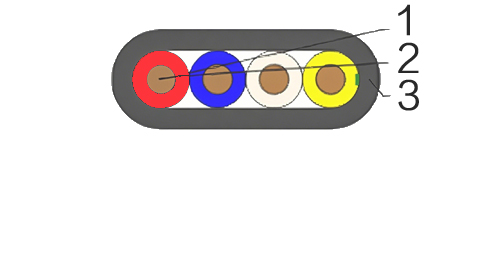

| Conductor | Plain annealed copper Maximum operating temperature: 90°C |
| Insulation | PVC V90 |
| Insulation colour: | Red, Black, Green/yellow |
| Sheath: | Polyvinylchloride compound PVC 3V90 |
| Sheath colour: | White, other colors are available upon request |
| Conductor | Current Ratings | Electrical Characteristics | |||||
|---|---|---|---|---|---|---|---|
| Nominal Area mm^2 | Unenclosed In Air A | Surrounded by thermal insulation A | Buried In Ducts A | Maximum DC Resistance @20°C Ohm/km | Maximum AC Resistance @75°C Ohm/km | Reactance Ohm/km | Three Phase Voltage Drop mV/Am |
| 1 | 14 | 7 | 17 | 18.1 | 27.0 | 0.119 | 46.8 |
| 1.5 | 17 | 9 | 21 | 13.6 | 17.3 | 0.111 | 30.0 |
| 2.5 | 25 | 13 | 29 | 7.41 | 9.45 | 0.102 | 16.4 |
| 4 | 33 | 17 | 37 | 4.61 | 5.88 | 0.102 | 10.2 |
| 6 | 42 | 22 | 47 | 3.08 | 3.93 | 0.0967 | 6.8 |
| 10 | 58 | 29 | 63 | 1.83 | 2.33 | 0.0906 | 4.05 |
| 16 | 78 | 39 | 81 | 1.15 | 1.47 | 0.0861 | 2.55 |
| Nom. conductor area mm^2 | Conductor No./ OD | Nom. insulation thickness mm | earth conductor area mm^2 | Nom. sheath thickness mm | Nom. overall diameter mm | Approx. mass kg/km | |
|---|---|---|---|---|---|---|---|
| Min | Max | ||||||
| 1.0 | 1/1.13 | 0.6 | 1.0 | 0.9 | 11.1x4.1 | 11.8x4.4 | 95 |
| 1.5 | 7/0.50 | 0.6 | 1.5 | 0.9 | 12.6x4.5 | 13.3x4.8 | 120 |
| 2.5 | 7/0.67 | 0.7 | 2.5 | 1 | 15.6x5.4 | 16.4x5.7 | 190 |
| 4 | 7/0.85 | 0.8 | 2.5 | 1.1 | 17.7x6.2 | 18.6x6.7 | 290 |
| 6 | 7/1.04 | 1.0 | 2.5 | 1.1 | 19.5x6.9 | 20.4x7.3 | 370 |
| 10 | 7/1.35 | 1.0 | 4 | 1.2 | 24.0x8.2 | 24.5x8.7 | 540 |
| 16 | 7/1.70 | 1.0 | 6 | 1.3 | 27.8x9.5 | 29.1x10.0 | 820 |
