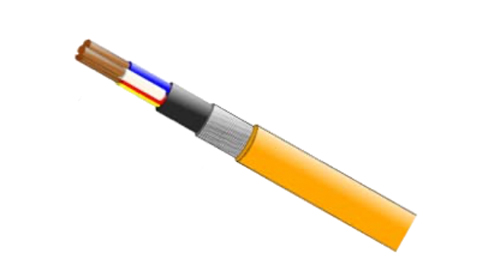

This series of armored power cables (e.g., YJV22-0.6/1kV XLPE Insulated Steel Tape Armored Power Cable) is specifically designed to provide stable and reliable fixed power transmission and distribution solutions for main circuits, secondary circuits, and branch circuits in various building and industrial facilities. The product offers excellent environmental adaptability and supports multiple installation methods, including open laying, conduit laying, direct burial, or underground duct laying. It is widely applicable to complex working environments without severe mechanical damage, comprehensively meeting diverse power wiring needs.
AS/NZS 5000.1
AS/NZS 3008
AS/NZS 1125

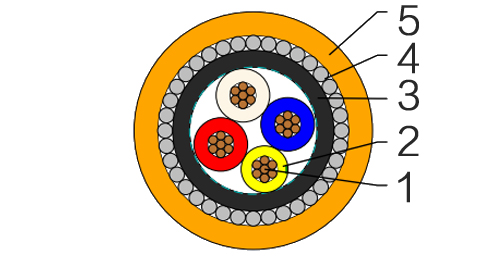

| Conductor | Plain annealed copper. |
| Insulation | Polyvinylchloride compound PVC V-90 |
| Insulation colour: | 3C + E – Red, White, Blue, Green/yellow |
| Bedding: | Polyvinylchloride compound PVC 5V-90 |
| Bedding colour: | Black |
| Armour: | Galvanised Steel Wire |
| Sheath: | Polyvinylchloride compound PVC 5V-90 |
| Sheath colour: | Orange, other colors are available upon request |
| Conductor | Current Ratings | Electrical Characteristics | |||||
|---|---|---|---|---|---|---|---|
| Nominal Area mm^2 | Unenclosed In Air A | Buried Direct A | Buried In Ducts A | Maximum DC Resistance @20°C Ohm/km | Maximum AC Resistance @75°C Ohm/km | Reactance Ohm/km | Single Phase Voltage Drop @75°C mV/Am |
| 1.5 | 15 | 24 | 19 | 13.6 | 16.5 | 0.111 | 28.6 |
| 2.5 | 22 | 34 | 26 | 7.41 | 9.01 | 0.102 | 15.6 |
| 4 | 29 | 44 | 34 | 4.61 | 5.61 | 0.102 | 9.71 |
| 6 | 37 | 55 | 43 | 3.08 | 3.75 | 0.0967 | 6.49 |
| 10 | 51 | 74 | 57 | 1.83 | 2.23 | 0.0906 | 3.86 |
| 16 | 68 | 96 | 74 | 1.15 | 1.40 | 0.0861 | 2.43 |
| 25 | 91 | 125 | 96 | 0.727 | 0.884 | 0.0853 | 1.54 |
| 35 | 110 | 150 | 115 | 0.524 | 0.638 | 0.0826 | 1.11 |
| 50 | 135 | 180 | 140 | 0.387 | 0.471 | 0.0797 | 0.829 |
| 70 | 170 | 220 | 175 | 0.268 | 0.327 | 0.0770 | 0.583 |
| 95 | 215 | 265 | 210 | 0.193 | 0.236 | 0.0766 | 0.431 |
| 120 | 245 | 300 | 240 | 0.153 | 0.188 | 0.0743 | 0.351 |
| 150 | 280 | 335 | 270 | 0.124 | 0.153 | 0.0745 | 0.296 |
| 185 | 325 | 380 | 310 | 0.0991 | 0.123 | 0.0744 | 0.251 |
| 240 | 385 | 440 | 370 | 0.0754 | 0.0955 | 0.0735 | 0.210 |
| Nom. conductor area mm^2 | Conductor No./ OD | Nom. insulation thickness mm | Nom. earth conductor area mm^2 | Nom. earth conductor insulation thickness mm | Nom. diameter over bedding mm | Armour diameter mm | Nom. overall diameter mm | Approx. mass kg/km |
|---|---|---|---|---|---|---|---|---|
| 1.5 | 7/0.50 | 0.8 | 1.5 | 0.8 | 9.8 | 0.9 | 15.4 | 400 |
| 2.5 | 7/0.67 | 0.8 | 2.5 | 0.8 | 10.9 | 0.9 | 16.5 | 545 |
| 4 | 7/0.85 | 1.0 | 2.5 | 0.8 | 12.5 | 1.25 | 18.8 | 770 |
| 6 | 7/1.04 | 1.0 | 2.5 | 0.8 | 13.7 | 1.25 | 20.0 | 880 |
| 10 | 7/1.35 | 1.0 | 4.0 | 1.0 | 15.8 | 1.25 | 22.1 | 1160 |
| 16 | 7/1.70 | 1.0 | 6.0 | 1.0 | 18.1 | 1.6 | 25.1 | 1560 |
| 25 | 7/2.14 | 1.2 | 6.0 | 1.0 | 21.8 | 1.6 | 28.8 | 2100 |
| 35 | 7/2.65 | 1.2 | 10 | 1.0 | 23.8 | 1.6 | 30.3 | 2480 |
| 50 | 19/1.89 | 1.4 | 16 | 1.0 | 26.7 | 2.0 | 34.1 | 3140 |
| 70 | 19/2.24 | 1.4 | 25 | 1.2 | 31.4 | 2.0 | 39.8 | 4455 |
| 95 | 19/2.65 | 1.6 | 25 | 1.2 | 35.9 | 2.5 | 43.9 | 5520 |
| 120 | 19/2.94 | 1.6 | 35 | 1.2 | 39.5 | 2.5 | 47.5 | 6790 |
| 150 | 19/3.28 | 1.8 | 50 | 1.4 | 43.2 | 2.5 | 53.4 | 7970 |
| 185 | 37/2.65 | 2.0 | 70 | 1.4 | 48.0 | 2.5 | 58.7 | 9660 |
| 240 | 37/2.94 | 2.2 | 95 | 1.6 | 54.9 | 2.5 | 66.0 | 12330 |
