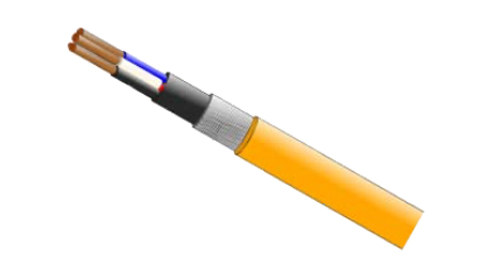

This series of PVC-insulated, PVC-sheathed, steel wire armored power cables is specifically designed for low-voltage power transmission systems. It is widely used in main power supply lines, secondary distribution circuits, and branch circuits in various scenarios such as construction projects, industrial plants, and municipal facilities. The product supports multiple installation methods: exposed installation (without mechanical protection), conduit laying (protected by metal/plastic conduits), direct burial (embedded directly in soil), and underground utility tunnel installation (via prefabricated underground utility tunnels). It is particularly suitable for indoor and outdoor environments without severe mechanical impact or frequent external collisions, such as office buildings, factory cable shafts, and underground non-heavy-duty areas.
AS/NZS 5000.1
AS/NZS 3008
AS/NZS 1125

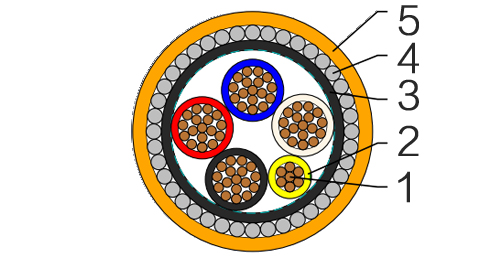

| Conductor | Plain annealed copper. |
| Insulation | Polyvinylchloride compound PVC V-90 |
| Insulation colour: | 4C + E - Red, White, Blue, black, Green/yellow |
| Bedding: | Polyvinylchloride compound PVC 5V-90 |
| Bedding colour: | Black |
| Armour: | Galvanised Steel Wire |
| Sheath: | Polyvinylchloride compound PVC 5V-90 |
| Sheath colour: | Orange, other colors are available upon request |
| Conductor | Current Ratings | Electrical Characteristics | |||||
|---|---|---|---|---|---|---|---|
| Nominal Area mm^2 | Unenclosed In Air A | Buried Direct A | Buried In Ducts A | Maximum DC Resistance @20°C Ohm/km | Maximum AC Resistance @75°C Ohm/km | Reactance Ohm/km | Single Phase Voltage Drop @75°C mV/Am |
| 1.5 | 15 | 24 | 19 | 13.6 | 16.5 | 0.111 | 28.6 |
| 2.5 | 22 | 34 | 26 | 7.41 | 9.01 | 0.102 | 15.6 |
| 4 | 29 | 44 | 34 | 4.61 | 5.61 | 0.102 | 9.71 |
| 6 | 37 | 55 | 43 | 3.08 | 3.75 | 0.0967 | 6.49 |
| 10 | 51 | 74 | 57 | 1.83 | 2.23 | 0.0906 | 3.86 |
| 16 | 68 | 96 | 74 | 1.15 | 1.40 | 0.0861 | 2.43 |
| 25 | 91 | 125 | 96 | 0.727 | 0.884 | 0.0853 | 1.54 |
| 35 | 110 | 150 | 115 | 0.524 | 0.638 | 0.0826 | 1.11 |
| 50 | 135 | 180 | 140 | 0.387 | 0.471 | 0.0797 | 0.829 |
| 70 | 170 | 220 | 175 | 0.268 | 0.327 | 0.0770 | 0.583 |
| 95 | 215 | 265 | 210 | 0.193 | 0.236 | 0.0766 | 0.431 |
| 120 | 245 | 300 | 240 | 0.153 | 0.188 | 0.0743 | 0.351 |
| 150 | 280 | 335 | 270 | 0.124 | 0.153 | 0.0745 | 0.296 |
| 185 | 325 | 380 | 310 | 0.0991 | 0.123 | 0.0744 | 0.251 |
| 240 | 385 | 440 | 370 | 0.0754 | 0.0955 | 0.0735 | 0.210 |
| Nom. conductor area mm^2 | Conductor No./ OD | Nom. insulation thickness mm | Nom. earth conductor area mm^2 | Nom. earth conductor insulation thickness mm | Nom. diameter over bedding mm | Armour diameter mm | Nom. overall diameter mm | Approx. mass kg/km |
|---|---|---|---|---|---|---|---|---|
| 1.5 | 7/0.50 | 0.8 | 1.5 | 0.6 | 10.7 | 0.9 | 16.3 | 545 |
| 2.5 | 7/0.67 | 0.8 | 2.5 | 0.7 | 12.0 | 0.9 | 17.6 | 635 |
| 4 | 7/0.85 | 1.0 | 2.5 | 0.7 | 13.9 | 1.25 | 20.2 | 900 |
| 6 | 7/1.04 | 1.0 | 2.5 | 0.7 | 15.9 | 1.25 | 22.2 | 1050 |
| 10 | 7/1.35 | 1.0 | 4.0 | 1.0 | 17.5 | 1.6 | 24.5 | 1490 |
| 16 | 7/1.70 | 1.0 | 6.0 | 1.0 | 21.2 | 1.6 | 28.2 | 1810 |
| 25 | 7/2.14 | 1.2 | 6.0 | 1.0 | 24.4 | 1.6 | 32.2 | 2530 |
| 35 | 7/2.65 | 1.2 | 10 | 1.0 | 26.1 | 1.6 | 33.3 | 2990 |
| 50 | 19/1.89 | 1.4 | 16 | 1.0 | 30.4 | 2.0 | 38.8 | 4140 |
| 70 | 19/2.24 | 1.4 | 25 | 1.2 | 35.1 | 2.0 | 43.7 | 5470 |
| 95 | 19/2.65 | 1.6 | 25 | 1.2 | 39.6 | 2.5 | 49.6 | 7250 |
| 120 | 19/2.94 | 1.6 | 35 | 1.2 | 43.9 | 2.5 | 54.1 | 9090 |
| 150 | 19/3.28 | 1.8 | 50 | 1.4 | 48.5 | 2.5 | 59.1 | 9900 |
| 185 | 37/2.65 | 2.0 | 70 | 1.4 | 54.3 | 2.5 | 65.4 | 12110 |
| 240 | 37/2.94 | 2.2 | 95 | 1.6 | 61.6 | 3.15 | 74.7 | 16320 |
