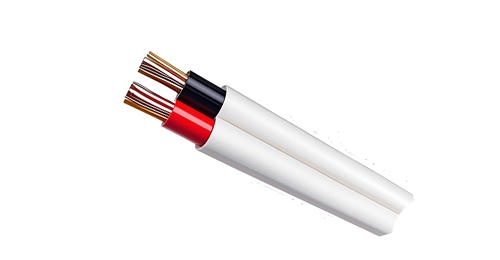

This product is specifically designed for connecting low-voltage power lines to electrical equipment, particularly suitable for wiring in confined spaces. Its two-core flat structure saves more installation space compared to traditional round cables. The product offers excellent flexibility, facilitating bending during conduit installation or surface laying, making it especially suitable for various scenarios such as residential distribution boards, commercial lighting trunking, and industrial equipment control cabinets. With a rated voltage that meets the conventional requirements of household, commercial, and industrial applications, it supports multiple installation methods including open wiring, concealed conduit embedding, direct burial, or duct installation. It is widely used in applications where grounding is not required, such as residential wiring, power supply for industrial equipment (e.g., production line power), and commercial premises (e.g., office socket circuits). The product is certified to AS/NZS 5000.2, and its insulation layer features aging and wear resistance, ensuring long-term safe operation.
AS/NZS 5000.2
AS 1125
AS 3808

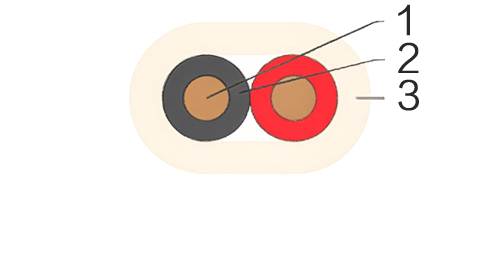

| Conductor | Plain annealed copper. Maximum operating temperature: 90°C |
| Insulation | PVC V90 |
| Insulation colour: | 2C cable: Red, Black |
| Sheath: | Polyvinylchloride compound PVC 3V90 |
| Sheath colour: | White, other colors are available upon request |
| Conductor | Current Ratings | Electrical Characteristics | |||||
|---|---|---|---|---|---|---|---|
| Nominal Area mm^2 | Unenclosed In Air A | Surrounded by thermal insulation A | Buried In Ducts A | Maximum DC Resistance @20°C Ohm/km | Maximum AC Resistance @75°C Ohm/km | Reactance Ohm/km | Single Phase Voltage Drop mV/Am |
| 1 | 16 | 8 | 19 | 18.1 | 27.0 | 0.119 | 54.0 |
| 1.5 | 21 | 10 | 24 | 13.6 | 17.3 | 0.111 | 34.6 |
| 2.5 | 30 | 15 | 34 | 7.41 | 9.45 | 0.102 | 18.9 |
| 4 | 39 | 19 | 44 | 4.61 | 5.88 | 0.102 | 11.8 |
| 6 | 50 | 25 | 56 | 3.08 | 3.93 | 0.0967 | 7.86 |
| 10 | 68 | 34 | 75 | 1.83 | 2.33 | 0.0906 | 4.68 |
| 16 | 91 | 46 | 97 | 1.15 | 1.47 | 0.0861 | 2.94 |
| Nom. conductor area mm^2 | Conductor No./ OD | Nom. insulation thickness mm | Nom. sheath thickness mm | Nom. overall diameter mm | Approx. mass kg/km | |
|---|---|---|---|---|---|---|
| Min | Max | |||||
| 1.0 | 1/1.13 | 0.6 | 0.9 | 6.5x4.1 | 6.9x4.4 | 50 |
| 1.5 | 7/0.50 | 0.6 | 0.9 | 7.2x4.5 | 7.6x4.8 | 65 |
| 2.5 | 7/0.67 | 0.7 | 1 | 8.7x5.4 | 9.2x5.7 | 105 |
| 4 | 7/0.85 | 0.8 | 1.1 | 10.3x6.3 | 10.9x6.6 | 145 |
| 6 | 7/1.04 | 1.0 | 1.1 | 11.5x6.8 | 12.0x7.2 | 195 |
| 10 | 7/1.35 | 1.0 | 1.2 | 14.1x8.3 | 14.7x8.7 | 295 |
| 16 | 7/1.70 | 1.0 | 1.3 | 16.4x9.5 | 17.1x10.0 | 435 |
