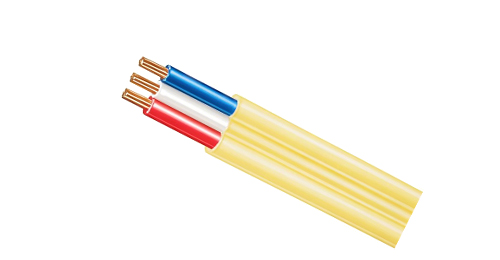

450/750V PVC Insulated Flat Three-Core Cable (Compliant with AS/NZS 5000.2 Standard) is specifically designed to meet the fixed electrical wiring requirements in residential, commercial, and industrial applications. Featuring a flat structure, the cable facilitates rapid installation in environments with low mechanical stress demands, significantly enhancing construction efficiency. Manufactured with high-quality PVC insulation material, it offers excellent electrical insulation properties and installation flexibility, ensuring safe and reliable power transmission. This product is an ideal choice for indoor fixed wiring applications.
AS/NZS 5000.2
AS 1125
AS 3808

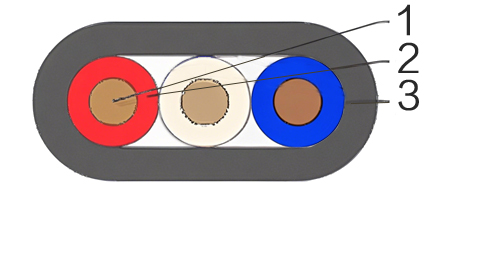

| Conductor | Plain annealed copper. Maximum operating temperature: 90°C |
| Insulation | PVC V90 |
| Insulation colour: | 3C cable: Red, White, Blue |
| Sheath: | Polyvinylchloride compound PVC 3V90 |
| Sheath colour: | White, other colors are available upon request |
| Conductor | Current Ratings | Electrical Characteristics | |||||
|---|---|---|---|---|---|---|---|
| Nominal Area mm^2 | Unenclosed In Air A | Surrounded by thermal insulation A | Buried In Ducts A | Maximum DC Resistance @20°C Ohm/km | Maximum AC Resistance @75°C Ohm/km | Reactance Ohm/km | Single Phase Voltage Drop mV/Am |
| 1 | 14 | 7 | 17 | 18.1 | 27.0 | 0.119 | 54.1 |
| 1.5 | 17 | 9 | 21 | 13.6 | 17.3 | 0.111 | 34.7 |
| 2.5 | 25 | 13 | 29 | 7.41 | 9.45 | 0.102 | 19.0 |
| 4 | 33 | 17 | 37 | 4.61 | 5.85 | 0.102 | 11.8 |
| Nom. conductor area mm^2 | Conductor No./ OD | Nom. insulation thickness mm | Nom. sheath thickness mm | Nom. overall diameter mm | Approx. mass kg/km | |
|---|---|---|---|---|---|---|
| Min | Max | |||||
| 1.0 | 1/1.13 | 0.6 | 0.9 | 8.8x4.1 | 9.3x4.4 | 75 |
| 1.5 | 7/0.50 | 0.6 | 0.9 | 9.9x4.5 | 10.4x4.8 | 95 |
| 2.5 | 7/0.67 | 0.7 | 1 | 12.1x5.4 | 12.7x5.7 | 145 |
| 4 | 7/0.85 | 0.8 | 1.1 | 14.7x6.4 | 15.4x6.7 | 220 |
