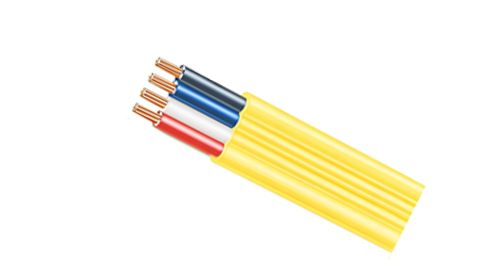

This product is a 450/750V PVC-insulated (flame-retardant model available) 4-core flat cable, strictly compliant with AS/NZS 5000.2 standards. Designed for general electrical wiring in residential, commercial, and industrial environments, it delivers stable and reliable performance. It is suitable for surface mounting, conduit installation, direct burial, and underground duct applications. Particularly ideal for fixed installations with low risk of mechanical impact.
AS/NZS 5000.2
AS 1125
AS 3808

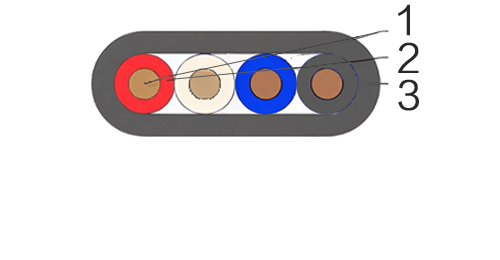

| Conductor | Plain annealed copper. Maximum operating temperature: 90°C |
| Insulation | PVC V90 |
| Insulation colour: | 4C cable: Red, White, Blue, Black |
| Sheath: | Polyvinylchloride compound PVC 3V90 |
| Sheath colour: | White, other colors are available upon request |
| Conductor | Current Ratings | Electrical Characteristics | |||||
|---|---|---|---|---|---|---|---|
| Nominal Area mm^2 | Unenclosed In Air A | Surrounded by thermal insulation A | Buried In Ducts A | Maximum DC Resistance @20°C Ohm/km | Maximum AC Resistance @75°C Ohm/km | Reactance Ohm/km | Single Phase Voltage Drop mV/Am |
| 1 | 14 | 7 | 17 | 18.1 | 27.0 | 0.119 | 46.8 |
| 1.5 | 17 | 9 | 21 | 13.6 | 17.3 | 0.111 | 30.0 |
| 2.5 | 25 | 13 | 29 | 7.41 | 9.45 | 0.102 | 16.4 |
| 4 | 33 | 17 | 37 | 4.61 | 5.88 | 0.102 | 10.2 |
| Nom. conductor area mm^2 | Conductor No./ OD | Nom. insulation thickness mm | Nom. sheath thickness mm | Nom. overall diameter mm | Approx. mass kg/km | |
|---|---|---|---|---|---|---|
| Min | Max | |||||
| 1.0 | 1/1.13 | 0.6 | 0.9 | 11.1x4.1 | 11.8x4.4 | 95 |
| 1.5 | 7/0.50 | 0.6 | 0.9 | 12.6x4.5 | 13.3x4.8 | 120 |
| 2.5 | 7/0.67 | 0.7 | 1 | 15.6x5.4 | 16.4x5.7 | 190 |
| 4 | 7/0.85 | 0.8 | 1.1 | 18.8x6.4 | 19.7x6.7 | 290 |
