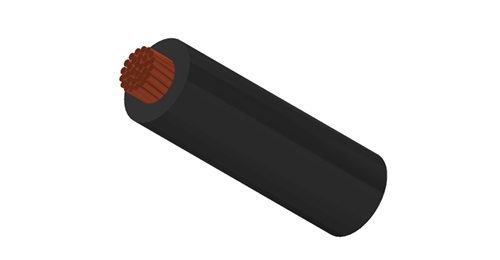

This 0.6/1kV single-core flexible cable is specifically engineered to address challenges in fixed installation scenarios. Featuring 0.2mm ultra-fine bare copper conductors and V90HT high-temperature PVC insulation, it achieves a minimal bending radius of just 6 times the cable diameter—enabling effortless routing in demanding environments such as complex wiring inside distribution cabinets and angled connections within machinery.
From electrical cabinets in factory production lines to high-voltage risers in commercial buildings, and from internal wiring in renewable energy equipment to protected outdoor temporary fixed power supply applications, this product ensures up to 20 years of stable operation thanks to its aging and corrosion resistance. Compliant with the AS 3000 electrical safety standard, it serves as a cost-effective alternative to traditional rigid cables.
AS/NZS 5000.1
AS/NZS 1125
AS3808

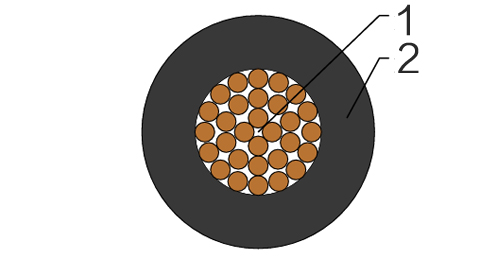

| Conductor | Nominal 0.2mm stranded flexible plain copper wire to AS1125 |
| Insulation | V90HT PVC to AS3808 |
| Colours | Black, Red, Blue, White, GreenlYellow |
| Conductor Size | Electrical Resistance @20.C | Current Ratìng' AMPS 2 single cores | Voltage Orop mV 1Am at Max operatíng Temperature | |
|---|---|---|---|---|
| mm^2 | Ohm/km | Single Phase | Three Phase | |
| 4 | 4.950 | 40 | 11 .20 | 9.71 |
| 6 | 3.300 | 51 | 7.50 | 6.49 |
| 10 | 1.910 | 69 | 4.45 | 3.86 |
| 16 | 1.210 | 92 | 2.80 | 2.43 |
| 25 | 0.780 | 125 | 1.78 | 1.54 |
| 35 | 0.554 | 155 | 1.29 | 1.12 |
| 50 | 0.386 | 185 | 0.96 | 0.83 |
| 70 | 0.272 | 240 | 0.62 | 0.59 |
| 95 | 0.206 | 295 | 0.51 | 0.44 |
| 120 | 0.161 | 345 | 0.41 | 0.36 |
| Conductor Size | No.of cores | Conductor No./ OD | Nominal Sheath Thickness | Nominal O.D. | Approx. Cable Weight |
|---|---|---|---|---|---|
| mm^2 | mm | mm | mm | kg/100m | |
| 4 | 1 | 128/0.2 | 1.0 | 4.8 | 5.30 |
| 6 | 1 | 192/0.2 | 1.0 | 5.4 | 7.30 |
| 10 | 1 | 322/0.2 | 1.0 | 6.3 | 11.40 |
| 16 | 1 | 511/0.2 | 1.0 | 7.3 | 17.10 |
| 25 | 1 | 784/0.2 | 1.2 | 8.8 | 30.00 |
| 35 | 1 | 1120/0.2 | 1.2 | 10.2 | 37.50 |
| 50 | 1 | 1568/0.2 | 1.4 | 11 .9 | 51.00 |
| 70 | 1 | 2240/0.2 | 1.4 | 14.0 | 71 .50 |
| 95 | 1 | 3040/0.2 | 1.6 | 16.0 | 97.00 |
| 120 | 1 | 3800/02 | 1.6 | 17.5 | 119.10 |
