EIB cable connects sensors and actuators in building control systems for lighting, blinds, heating and ventilation. This range offers a one-quad construction and a two-pair construction. Both use PE-insulated copper cores, aluminium/polyester foil screening and a green low-smoke halogen-free outer sheath.

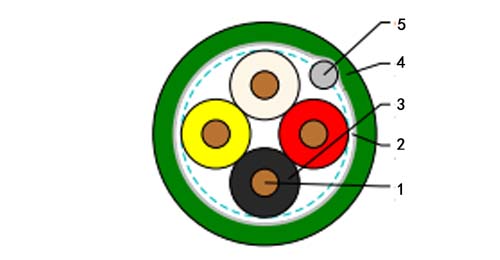

| Cable Construction | 1 Quad | 2 Pair |
| Inner Conductor | Plain copper conductors 0.8mm | Plain copper conductors 0.8mm |
| Conductor Insulation | Polyethylene | Polyethylene |
| Conductor Colors | White,yellow,red,black | White,yellow,red,black |
| Stranding Element | Cores twisted into a quad | Cores twisted into pairs, pairs laid up |
| Core Wrapping | - | - |
| Shielding | Aluminium/polyester foil screen | Aluminium/polyester foil screen |
| drain wire | Solid copper | Stranded tinned copper |
| Outer Jacket | Low Smoke Halogen Free | Low Smoke Halogen Free |
| Sheath Colour | Green | Green |
| Test Voltage | 4KV |
| Working Voltage | Max.150V |
| Conductor resistance | 37.0 Ohm/km @ 20°C |
| Insulation resistance | 1000MΩhms*km @ 20°C |
| Mutual capacitance@800Hz | 100nF/km max |
| Unbalanced capacitance | 300pF/100m max |
| Weight | approximately 62.0 kg/km | approximately 57.0 kg/km |
| Min. Bending Radius (Laying) | 10 x OD mm | 10 x OD mm |
| Operating temperature, min | -20°C(fixed) | -5°C (installation) |
| Operating temperature, max | +70°C(fixed) | +50°C(installation) |
0.8 mm plain copper conductors with white, yellow, red and black insulation.
Foil screening with a drain wire in each construction.
One-quad and two-pair options for the specified building wiring arrangement.
Choose the core arrangement to match the system wiring plan and terminals. Keep the distinction between fixed-service and installation temperatures: −20°C to +70°C in fixed service, and −5°C to +50°C during installation. Outdoor routing described for this range requires protection from direct sunlight.
Profinet Type A Cable, 100 Ohm, Solid Copper, PVC or PUR Sheath
CAN-Bus Cable, 120 Ohm, Screened Pair or Star Quad, PVC or PUR
BRAIL Cat5E Railway Ethernet Cable, Screened 4-Core and 4-Pair
What are the available core arrangements?
Four cores twisted as one quad, or four cores twisted into two pairs and laid up together.
Does 0.8 mm describe the conductor area?
It describes conductor diameter. The construction lists 0.8 mm plain copper conductors.
What screening and sheath are used?
Aluminium/polyester foil screening and a green low-smoke halogen-free outer sheath.
Do the drain wires differ between versions?
The one-quad version lists a solid copper drain wire; the two-pair version lists a stranded tinned copper drain wire.
What laying bend radius is specified?
Both constructions specify a minimum laying bend radius of 10 times the overall cable diameter.
