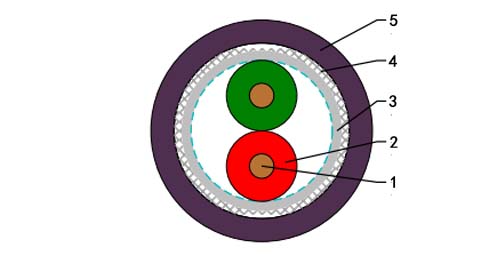

Connect moving L2-BUS equipment with this drag-chain cable construction. Stranded bare copper conductors, foam-skin PE insulation and a PUR outer sheath form a cable intended for guided movement. Aluminium-lined foil and a tinned copper braid surround the signal pair.
Type/Area of Application: Drag Chain Applications
Cable Construction: 1x2x0.64 mm (stranded)
Inner Conductor Diameter: Copper, bare (AWG 24/19)
Conductor Insulation: Foam-skin-PE
Conductor Colors: Red, green
Stranding Element: 2 conductors + 2 fillers stranded together
Shielding: Polyester foil, aluminum lined
Total Shielding: Cu braid, tinned
Outer Jacket Material: PUR
Outer Diameter: 8.0 mm ± 0.4 mm
Outer Jacket Color: Violet
| Characteristic Impedance@3-20MHz | 150 Ω ± 10 Ω | ||||
| Conductor Resistance | 82.0 Ohm/km max. | ||||
| Insulation Resistance | 1.00 GOhm x km min. | ||||
| Mutual Capacitance@1 KHz | 30.0 nF/km nom. | ||||
| Working Voltage | Max: 250V | ||||
| Test Voltage | 1.5 KV | ||||
| Attenuation | 9.6 | kHz | < | 3.0 | dB/km |
| 38.4 | kHz | < | 5.0 | dB/km | |
| 4.0 | MHz | < | 25.0 | dB/km | |
| 16.0 | MHz | < | 52.0 | dB/km | |
| Weight | approximately 65.0 kg/km |
| Min. Bending Radius for Laying | 7.5 x OD mm |
| Operating Temperature Range, min. | -40°C |
| Operating Temperature Range, max. | +70°C |
Stranded conductor construction for drag-chain applications.
Violet PUR sheath over foil and tinned copper braid screens.
150 ± 10 ohms impedance at 3–20 MHz and 8.0 ± 0.4 mm outer diameter.
Specify the chain travel, speed, acceleration and bending arrangement with the cable selection. Coordinate support and strain relief with the moving equipment. The technical table gives a minimum laying radius of 7.5 times the overall diameter; the chain layout must also suit the operating movement.
Profibus L2 7-Wire Stranded Cable, 150 Ohm, PVC Sheath for Mobile Use
Profibus L2 Torsion and Festoon Cables, 150 Ohm, PUR or PVC Sheath
Profibus L2 Outdoor and Industry Cable, 150 Ohm, PE or PUR Sheath
Guided movement in drag chains or cable tracks connecting L2-BUS equipment.
PUR, with violet as the listed sheath colour.
An aluminium-lined polyester foil and an overall tinned copper braid surround the pair assembly.
The outer diameter is 8.0 ± 0.4 mm and the approximate weight is 65.0 kg/km.
The drag-chain design has a PUR sheath and its own conductor, resistance, attenuation and bending specifications.
