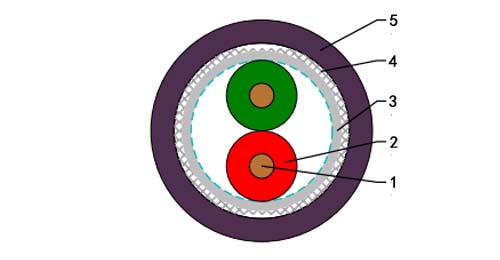

The L2 7-wire construction is intended for mobile fieldbus connections. Each signal conductor uses seven copper strands, with foam-skin PE insulation and a violet PVC outer sheath. Foil and braid screens surround the red and green pair for connections between automation equipment and field units.
Type/Area of Application: Mobile Use
Cable Construction: 1x2x0.64 mm (stranded)
Inner Conductor Diameter: Copper, bare (AWG 22/7)
Conductor Insulation: Foam-skin-PE
Conductor Colors: Red, green
Stranding Element: 2 conductors + 2 fillers stranded together
Shielding: Polyester foil, aluminum lined
Total Shielding: Copper braid, tinned
Outer Jacket Material: PVC
Outer Diameter: 7.8 mm ± 0.3 mm
Outer Jacket Color: Violet
| Characteristic Impedance@3-20MHz | 150 Ω ± 10 Ω | ||||
| Conductor Resistance | 86.7 Ohm/km max. | ||||
| Insulation Resistance | 1.00 GOhm x km min. | ||||
| Mutual Capacitance@1 KHz | 30.0 nF/km nom. | ||||
| Working Voltage | Max: 250V | ||||
| Test Voltage | 1.5 KV | ||||
| Attenuation | 9.6 | kHz | < | 3.0 | dB/km |
| 38.4 | kHz | < | 5.0 | dB/km | |
| 4.0 | MHz | < | 26.0 | dB/km | |
| 16.0 | MHz | < | 55.0 | dB/km | |
| Weight | approximately 75.0 kg/km |
| Min. Bending Radius for Laying | 10 x OD mm |
| Operating Temperature Range, min. | -20°C |
| Operating Temperature Range, max. | +70°C |
AWG 22/7 bare copper conductors for the mobile-use construction.
Aluminium-lined polyester foil and tinned copper braid screens.
7.8 ± 0.3 mm outer diameter and approximately 75.0 kg/km weight.
Match the cable to the movement pattern and the connector’s stranded-conductor termination. Use the listed laying radius of 10 times the overall diameter for installation planning. For guided drag-chain travel or torsional movement, compare the dedicated constructions linked below.
Profibus L2 Torsion and Festoon Cables, 150 Ohm, PUR or PVC Sheath
Profibus L2 Indoor Cable, 150 Ohm, Foil and Braid Screened, PVC
No. AWG 22/7 describes a seven-strand conductor. This cable has two insulated signal conductors forming one pair.
The outer sheath is PVC, with violet as the listed colour.
An aluminium-lined polyester foil and an overall tinned copper braid surround the pair assembly.
The operating temperature range is −20°C to +70°C.
This version uses AWG 22/7 conductors and a PVC sheath. The dedicated drag-chain version uses a different stranded conductor construction and a PUR sheath.
