Profibus L2 Direct Burial Cable, 150 Ohm, PVC Inner and PE Outer Sheath

Profibus L2 direct burial cable with a PVC inner jacket and black PE outer jacket. Solid AWG 22 copper conductors, foam-skin PE insulation and foil plus braid screening form the 150 ohm signal pair. Nominal diameter: 10.0 mm.

Profibus L2 Direct Burial.pdf Contact us

Previous: Profibus L2 Outdoor and Industry Cable, 150 Ohm, PE or PUR Sheath Next: Profibus L2 7-Wire Stranded Cable, 150 Ohm, PVC Sheath for Mobile Use

APPLICATION

For underground L2-BUS routes between automation equipment, this cable combines a PVC inner jacket with a PE outer jacket. The screened signal pair uses solid bare copper conductors and foam-skin PE insulation. Its two-jacket construction distinguishes it from the indoor and single-jacket outdoor versions.

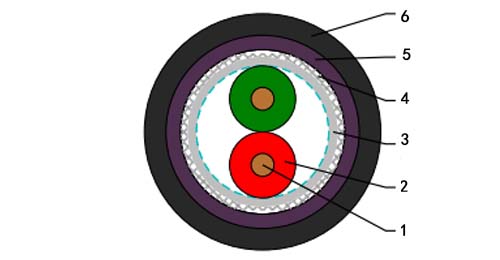

CONSTRUCTION

Type/Area of Application: Underground Laying
Cable Construction: 1x2x0.64 mm
Inner Conductor Diameter: Copper, bare (AWG 22/1)
Conductor Insulation: Foam-skin-PE
Conductor Colors: Red, green
Stranding Element: 2 conductors + 2 fillers stranded together
Shielding: Polyester foil, aluminum lined
Total Shielding: Copper braid, tinned
Inner Jacket Material: PVC
Outer Jacket Material: PE
Outer Diameter: 10.0 mm ± 0.2 mm
Outer Jacket Color: Black

ELECTRICAL DATA

Characteristic Impedance@3-20MHz	150 Ω ± 10 Ω
Conductor Resistance	57.1 Ohm/km max.
Insulation Resistance	1.00 GOhm x km min.
Mutual Capacitance@1 KHz	30.0 nF/km nom.
Working Voltage	Max: 250V
Test Voltage	1.5 KV
Attenuation	9.6	kHz	<	2.1	dB/km
	38.4	kHz	<	3.1	dB/km
	3.0	MHz	<	18.2	dB/km
	20.0	MHz	<	47.0	dB/km

TECHNICAL DATA

Weight	approximately 92.0 kg/km
Min. Bending Radius for Laying	18 x OD mm
Operating Temperature Range, min.	-40°C
Operating Temperature Range, max.	+70°C

KEY FEATURES

PVC inner jacket beneath a black PE outer jacket.
Aluminium-lined foil and overall tinned copper braid screens.
150 ± 10 ohms impedance at 3–20 MHz; 10.0 ± 0.2 mm outer diameter.

SELECTION NOTES

Plan the underground route, entry points and mechanical protection with the installation design. Size ducts, glands and supports for the 10.0 mm nominal diameter, and maintain the listed laying bend radius of 18 times the overall diameter.

RELATED CABLE TYPES

FREQUENTLY ASKED QUESTIONS

What makes this the direct burial construction?

The cable is specified for underground laying and has separate PVC inner and PE outer jackets.

What are the signal conductors?

Bare copper AWG 22/1 conductors with red and green foam-skin PE insulation.

Which screens surround the pair?

An aluminium-lined polyester foil and a tinned copper braid provide the two screening layers.

What is the minimum laying bend radius?

The technical data specify 18 times the overall cable diameter.

What dimensions should be used for route planning?

The listed outer diameter is 10.0 ± 0.2 mm and the approximate cable weight is 92.0 kg/km.
