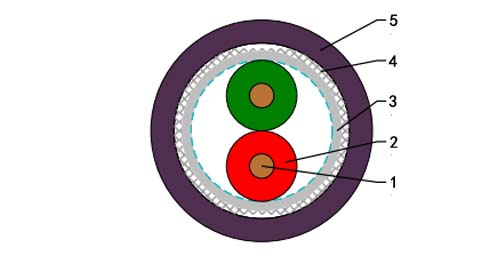

Connect L2-BUS equipment on fixed indoor routes with this single-pair Profibus cable. Solid bare copper conductors, foam-skin PE insulation and a PVC sheath provide a defined construction for control cabinets and plant field wiring. An aluminium-lined foil screen and tinned copper braid surround the red and green signal cores.
Type/Area of Application : Fixed Installation, Indoor
Cable Construction : 1x2x0.64 mm
Inner Conductor Diameter : Copper, bare (AWG 22/1)
Conductor Insulation : Foam-skin-PE
Conductor Colors : Red, green
Stranding Element : 2 conductors + 2 fillers stranded together
Shielding : Polyester foil, aluminum-lined
Total Shielding : Cu braid, tinned
Outer Jacket Material : PVC
Outer Diameter : 7.8 mm ± 0.4 mm
| Characteristic Impedance@3-20MHz | 150 Ω ± 10 Ω | ||||
| Conductor Resistance | 55.0 Ohm/km max. | ||||
| Insulation Resistance | 1.00 GOhm x km min. | ||||
| Mutual Capacitance@1 KHz | 30.0 nF/km nom. | ||||
| Working Voltage | Max: 250 V | ||||
| Test Voltage | 1.5 KV | ||||
| Attenuation | 9.6 | kHz | < | 2.5 | dB/km |
| 38.4 | kHz | < | 4 | dB/km | |
| 4 | MHz | < | 22 | dB/km | |
| 16 | MHz | < | 42 | dB/km | |
| Weight | approximately 69.0 kg/km |
| Min. Bending Radius (Laying) | 15 x OD mm |
| Operating Temp.Range, min. | -40 °C |
| Operating Temp.Range, max. | +70 °C |
Solid AWG 22/1 copper conductors with red and green insulation.
Foil and tinned copper braid screening around the pair assembly.
150 ± 10 ohms characteristic impedance at 3–20 MHz; nominal diameter 7.8 mm.
Use this version for fixed indoor wiring. Match the connector to the solid conductors and cable diameter, and allow at least 15 times the overall diameter when laying the cable. Choose a dedicated outdoor, burial or moving-cable construction when the route requires it.
Profibus L2 Outdoor and Industry Cable, 150 Ohm, PE or PUR Sheath
Profibus L2 Direct Burial Cable, 150 Ohm, PVC Inner and PE Outer Sheath
Profibus L2 7-Wire Stranded Cable, 150 Ohm, PVC Sheath for Mobile Use
Fixed indoor installation between L2-BUS components and decentralised field equipment.
An aluminium-lined polyester foil and an overall tinned copper braid enclose the pair assembly.
The construction uses bare copper conductors designated AWG 22/1, meaning a solid conductor.
The outer diameter is 7.8 ± 0.4 mm. The minimum bending radius for laying is 15 times the overall diameter.
The related L2 Outdoor and Industry range offers PE or PUR sheaths; the Direct Burial design adds a PVC inner sheath beneath a PE outer sheath.
