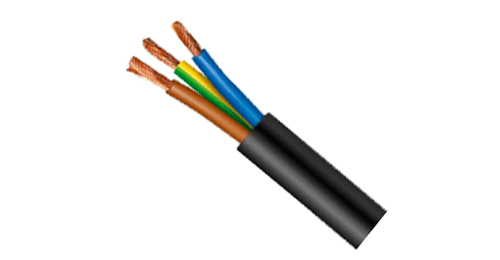

DN-K is a high-performance, flexible, low smoke zero halogen (LSZH) power cable, specifically designed for fixed installation applications. Compliant with Spanish standards, it serves as an ideal choice for power transmission and distribution. Its excellent electrical performance and environmentally friendly characteristics make it a reliable option for various indoor and outdoor electrical projects.
UNE 21022
IEC 60502
EN 60332-1
EN 50266
EN 50267-1
EN 50267-2
EN 61034
IEC 60332-1
IEC 60332-3
IEC 60754-1
IEC 60754-2
IEC 61034

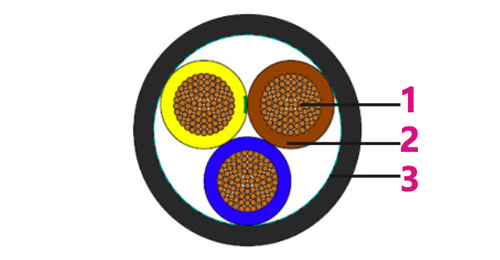

Flexible electrolytic annealed copper conductor
Class 5 in accordance with IEC 60228.
Thermosetting rubber type EPR insulation
Color coded to HD308 and HD186, 6 or more conductors: black numbered + green/yellow
Green-yellow grounding, 3 conductors and above
Thermosetting rubber type EM8 outer sheath
| Working voltage | 600/1000 volts |
| Test voltage | 3500 volts |
| Minimum bending radius | 5 x Ø |
| Working temperature | -20°C to +90°C |
| Short circuit temperature | +250°C |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 20 MΩ x km |
| AWG | No. of Cores × Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|
| # × mm² | mm | kg/km | |
| 16(30/30) | 1×1.5 | 5.8 | 56 |
| 14(50/30) | 1×2.5 | 6.3 | 67 |
| 12(56/28) | 1×4 | 6.8 | 82 |
| 10(84/28) | 1×6 | 7.3 | 106 |
| 8(80/26) | 1×10 | 8.4 | 153 |
| 6(128/26) | 1×16 | 9.5 | 210 |
| 4(200/26) | 1×25 | 11.1 | 308 |
| 2(280/26) | 1×35 | 14.3 | 413 |
| 16(30/30) | 2×1.5 | 9.8 | 120 |
| 14(50/30) | 2×2.5 | 10.7 | 151 |
| 12(56/28) | 2×4 | 11.6 | 193 |
| 10(84/28) | 2×6 | 12.7 | 255 |
| 8(80/26) | 2×10 | 14.9 | 377 |
| 6(128/26) | 2×16 | 16.9 | 552 |
| 16(30/30) | 3×1.5 | 10.2 | 137 |
| 14(50/30) | 3×2.5 | 11.2 | 174 |
| 12(56/28) | 3×4 | 12.2 | 233 |
| 10(84/28) | 3×6 | 13.4 | 325 |
| 8(80/26) | 3×10 | 16.0 | 480 |
| 6(128/26) | 3×16 | 19.8 | 696 |
| 4(200/26) | 3×25 | 21.6 | 1040 |
| 2(280/26) | 3×35 | 24.8 | 1408 |
| 16(30/30) | 4×1.5 | 11.0 | 163 |
| 14(50/30) | 4×2.5 | 12.1 | 211 |
| 12(56/28) | 4×4 | 13.2 | 283 |
| 10(84/28) | 4×6 | 14.6 | 385 |
| 8(80/26) | 4×10 | 17.3 | 583 |
| 6(128/26) | 4×16 | 19.8 | 875 |
