DN-F Durable Rubber-Sheathed Cable: A Power Transmission Solution for Harsh Environments
The DN-F cable is a high-performance, flexible rubber-sheathed cable specifically designed for mobile equipment and heavy-duty applications. Whether used in dry, damp, or even underwater conditions (AD8), the DN-F ensures reliable power transmission.
UNE 21150
UNE 21166
EN 60332-1
IEC 60332-1

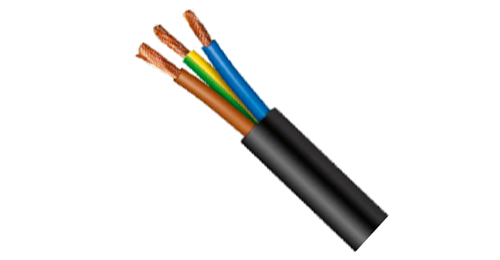

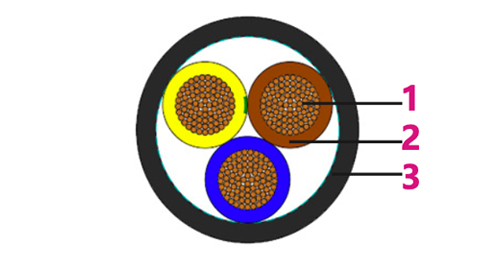

Flexible electrolytic annealed copper conductor
Class 5 or class 6 in accordance with IEC 60228.
Thermosetting rubber type EPR insulation
Color coded to HD308 and HD186, 6 or more conductors: black numbered + green/yellow
Green-yellow grounding, 3 conductors and above
Thermosetting rubber type SE1 outer sheath
| Working voltage | 600/1000 volts |
| Test voltage | 2000 volts |
| Minimum bending radius | 3 x Ø |
| Working temperature | -25°C to +90°C |
| Short circuit temperature | +250°C |
| Flame retardant | IEC 60332.1 |
| Insulation resistance | 20 MΩ x km |
| AWG | No. of Cores × Nominal Cross Sectional Area | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|
| # × mm² | mm | kg/km | |
| 10(84/28) | 1×6 | 8.3 | 113 |
| 8(80/26) | 1×10 | 10.0 | 176 |
| 6(128/26) | 1×16 | 11.1 | 242 |
| 4(200/26) | 1×25 | 13.2 | 353 |
| 2 (280/26) | 1×35 | 14.7 | 470 |
| 1(400/26) | 1×50 | 17.1 | 645 |
| 2/0 (356/24) | 1×70 | 19.2 | 865 |
| 3/0 (485/24) | 1×95 | 21.7 | 1121 |
| 4/0 (614/24) | 1×120 | 23.4 | 1393 |
| 300 MCM (765/24) | 1×150 | 25.9 | 1717 |
| 350 MCM (944/24) | 1×185 | 28.8 | 2079 |
| 500MCM (1225/24) | 1×240 | 31.9 | 2668 |
| - | 1×300 | 34.9 | 3272 |
| 16(30/30) | 2×1.5 | 9.3 | 115 |
| 14(50/30) | 2×2.5 | 10.7 | 166 |
| 12(56/28) | 2×4 | 12.3 | 226 |
| 10(84/28) | 2×6 | 13.6 | 286 |
| 8(80/26) | 2×10 | 18.0 | 505 |
| 6(128/26) | 2×16 | 21.3 | 713 |
| 4(200/26) | 2×25 | 25.7 | 1050 |
| 16(30/30) | 3×1.5 | 10.9 | 163 |
| 14(50/30) | 3×2.5 | 12.2 | 216 |
| 12(56/28) | 3×4 | 13.9 | 296 |
| 10(84/28) | 3×6 | 15.4 | 385 |
| 8(80/26) | 3×10 | 20.0 | 646 |
| 6(128/26) | 3×16 | 22.3 | 876 |
| 4(200/26) | 3×25 | 26.8 | 1292 |
| 2(280/26) | 3×35 | 29.7 | 1691 |
| 1(400/26) | 3×50 | 35.4 | 2357 |
| 2/0 (356/24) | 3×70 | 39.6 | 3118 |
| 3/0 (485/24) | 3×95 | 45.1 | 4068 |
| 16(30/30) | 4×1.5 | 11.9 | 199 |
| 14(50/30) | 4×2.5 | 13.5 | 269 |
| 12(56/28) | 4×4 | 15.9 | 387 |
| 10(84/28) | 4×6 | 18.1 | 516 |
| 8(80/26) | 4×10 | 21.5 | 790 |
| 6(128/26) | 4×16 | 24.2 | 1081 |
